- Page 1 V82VGT (1696788) CORDLESS 82V LITHIUM ION GRASS TRIMMER RAPID TRIMMER OPERATOR'S MANUAL WARNING! Read this manual before operating your product.
- Page 2 IMPORTANT NOTES Details Thank you for purchasing your Victa product. Victa prides itself in the quality and performance of all its products. This instruction manual will aid in the assembly, safe operation and maintenance of your product. Please read the following warnings to ensure safety and the long life of your product.
- Page 3 Table of Contents Features & Definitions & e i l e t I Safety & Handling l a r Assembly Procedures t i F n i t t i F n i t t i F n i t t i F n i t Operating Instructions Line Trimmer Cut-off Blade...

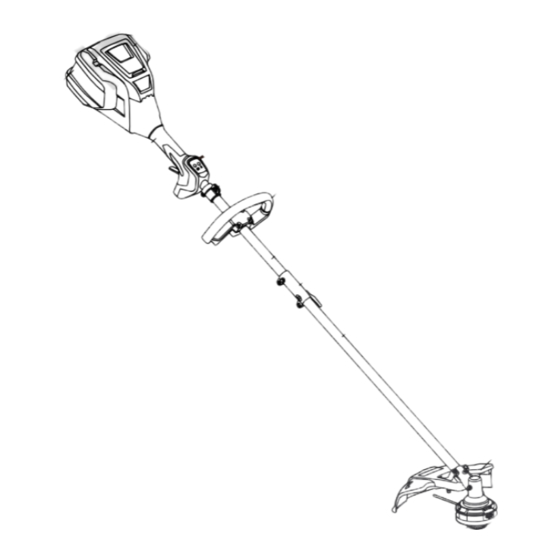

- Page 4 FEATURES DEFINITIONS Features & Supplied Items NOTE: Refer to Fig. 1. Battery Port with Battery Release Button Rear Handle ON/OFF Button Trigger Lock Trigger High/Low Speed Button Harness Connection Point Front Handle Upper Shaft Coupling Lower Shaft Guard Bump Head Harness Briggs &...
- Page 5 General Safety • Carefully read all instructions on the machine and in the manual before attempting to assemble and operate the machine. Keep this manual in a safe place for future reference, and consult it regularly. Ensure other users read this manual and are aware of the product safety risks •...
-
Page 6: Assembly Procedures
Product Disposal CORRECT DISPOSAL OF THE PRODUCT Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. The battery contains material which is hazardous to you and the environment. It must be removed and disposed of separately at a facility that accepts lithium-ion batteries. - Page 7 Fig 3 Fig.1 Do not use the grass trimmer with any attachments unless certified by Victa to operate with this machine. Do not operate or fit battery before the shaft is completely assembled. Take care when fitting and tightening. Beware of...
-
Page 8: Operating Instructions
ASSEMBLY PROCEDURES Fitting the Front Handle NOTE: Refer to Fig. 5. • Loosen the four screws (1) in the handle (2) with a Phillips screwdriver (not included) and remove the screws from the handle. • Attach the front handle and lower clamp (3) on the shaft. - Page 9 OPERATING INSTRUCTIONS Starting & Stopping TRIGGER LOCK BUTTON NOTE: Refer to Fig. 8. The trigger lock button reduces the possibility of accidental starting. The trigger lock button must be depressed before you pull the trigger. The lock resets each time the trigger is released.
- Page 10 OPERATING INSTRUCTIONS Cutting Tips NOTE: Refer to Fig. 9. • Keep the trimmer tilted toward the area being cut; this is the best cutting area. Fig.9 • The trimmer cuts best when passing from right to left. This will avoid throwing debris at the operator.
- Page 11 Trimmer Line Replacement Cover Clips Bump Head Assembly 1. Cover 2. Spool retainer 3. Spool 4. Housing Eyelet Slot Fig 10 NOTE: Refer to Fig. 10. WARNING • Nylon line will deteriorate over time and may require replacement if line breakages and cut performance is not satisfactory •...
- Page 12 Trimmer Line Replacement Spool cap String head Slots Slots Fig 11.1 Fig 11.2 Fig 11.3 1. Line up the slots on the spool cap with the slots on the string head. 2. Insert line through the string head hole. Push line until it exits the opposite string head hole.
- Page 13 Maintenance Chart Refer to the following table for routine maintenance. Features Requirements • • Trimmer Visual inspection • Trigger Check operation Trigger lock Check • • Battery release button Check • • Cutting head assy Check & clean • • Gear box Grease (straight shaft) •...
-
Page 14: Troubleshooting
TROUBLESHOOTING Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Trimmer fails to start when Flat battery Recharge battery trigger depressed Battery disengaged Refit battery Faulty battery Replace battery Not cutting grass No trimmer line in bump head Replace line in bump head Excessive vibration Cut off blade worn Replace cut off blade Bumphead not fitted correctly... -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Product Specification CORDLESS 82V LITHIUM-ION GRASS TRIMMER 'RAPID CUT' Model V82VGT Function Grass trimmer Motor type 82V 800W DC brushless motor Max motor speed Low speed setting: 5,000 rpm, High speed setting: 5,500 rpm Shaft type Split, straight shaft... - Page 16 IMPORTANT NOTES _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________...
- Page 17 ©2016 Briggs & Stratton Power Products Group, LLC Victa is a trademark of Briggs & Stratton Australia Pty. Ltd. ABN 13 006 576 856 All rights reserved. No part of this booklet may be reproduced by any means without prior written permission. All information herein is subject to change without notice.
