4.2 I

NSTALLATION

Choose the proper installer (32 or 64 bit) for your Windows operating system and run it. During
installation some drivers and further software are installed. For proper function of the software allow all
drivers and software to be installed. The software installations include:
- Microsoft .NET Framework
- Microsoft Visual C++ Redistributable (2008, 2013, 2015)
- Java 7 Runtime
4.3 S

ETTINGS

4.3.1 M
OVING OPTION SETTINGS

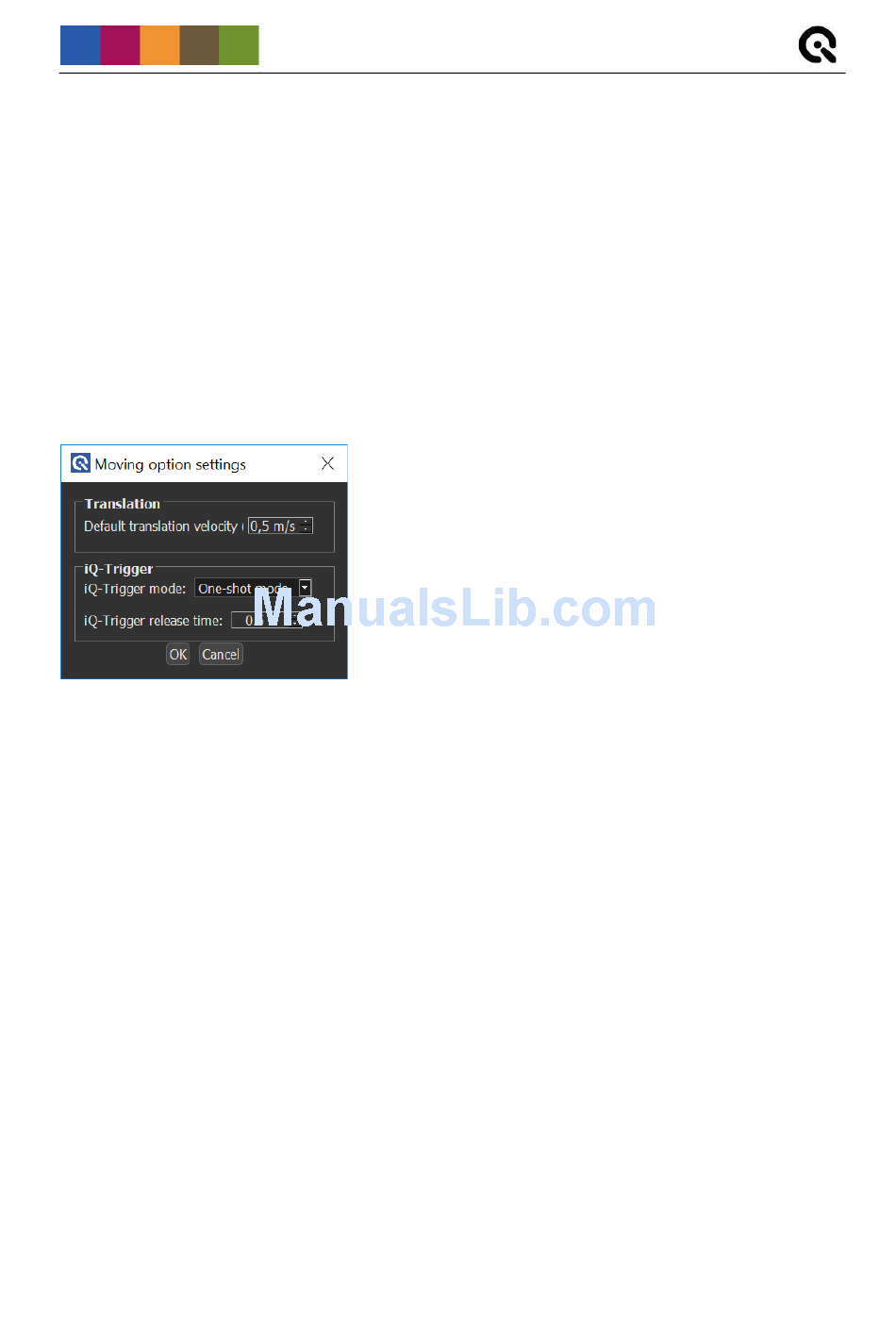

In the Moving option settings dialog, specifications can be modified for some components of the
Moving lightSTUDIO.
The default translation velocity [1] defines the transportation speed of the moving test chart in the
range between 0.01 and 3.0 m/s. This value is used for the movement when clicking the move left,
move home or move right buttons and as speed for the return movements of a sequence.
The iQ-Trigger mode menu [2] offers three options for the behavior of the iQ-Trigger:
One-shot mode:
Toggle mode:
Continuous mode: iQ-Trigger is released by pressing the start/stop button and stays activated
The iQ-Trigger release time [3] denotes the duration of iQ-Trigger when the one-shot mode is
selected. The minimum is 0.5 s.
Image Engineering
Software Documentation
(
LIGHT
1
2
3
iQ-Trigger is released once with the start/stop button and stays activated with
a predefined duration time as edited in the corresponding field below.
iQ-Trigger is released by clicking the start/stop button and stays activated until
next click on the button.
until button is released.
lightSTUDIO
