SAGE WITHOUT SOFTWARE
Depending on the chosen combination, some parts of the lightSTUDIO can be used without the
software. The Standard lightHEAD is equipped with a control panel on the front side, which comprises
the switching of light sources, the adjustment of intensities and the ability to store the intensity value
for each light. The translation and rotation of the lightSTUDIO-M and the LED ligthHEAD are only
accessable by means of the software. However, the timecode display may be also used as a stand-
alone device
(chapter
2.2).
3.1 S
TANDARD LIGHT
To store an intensity setting for one type, keep the corresponding knob pressed and press the "Store"
knob [1] until the display shows the result.
With the knob "LCD backlight" [5] you can adjust the display panel backlighting.
Note:
Only one light source can be illuminated at the same time.
It may take some minutes until the color temperature and illuminance of the lamps are reliably
stable. All values measured in the acceptance protocol were measured 3 minutes after
switching the lights on.
Image Engineering
Usage without software
HEAD

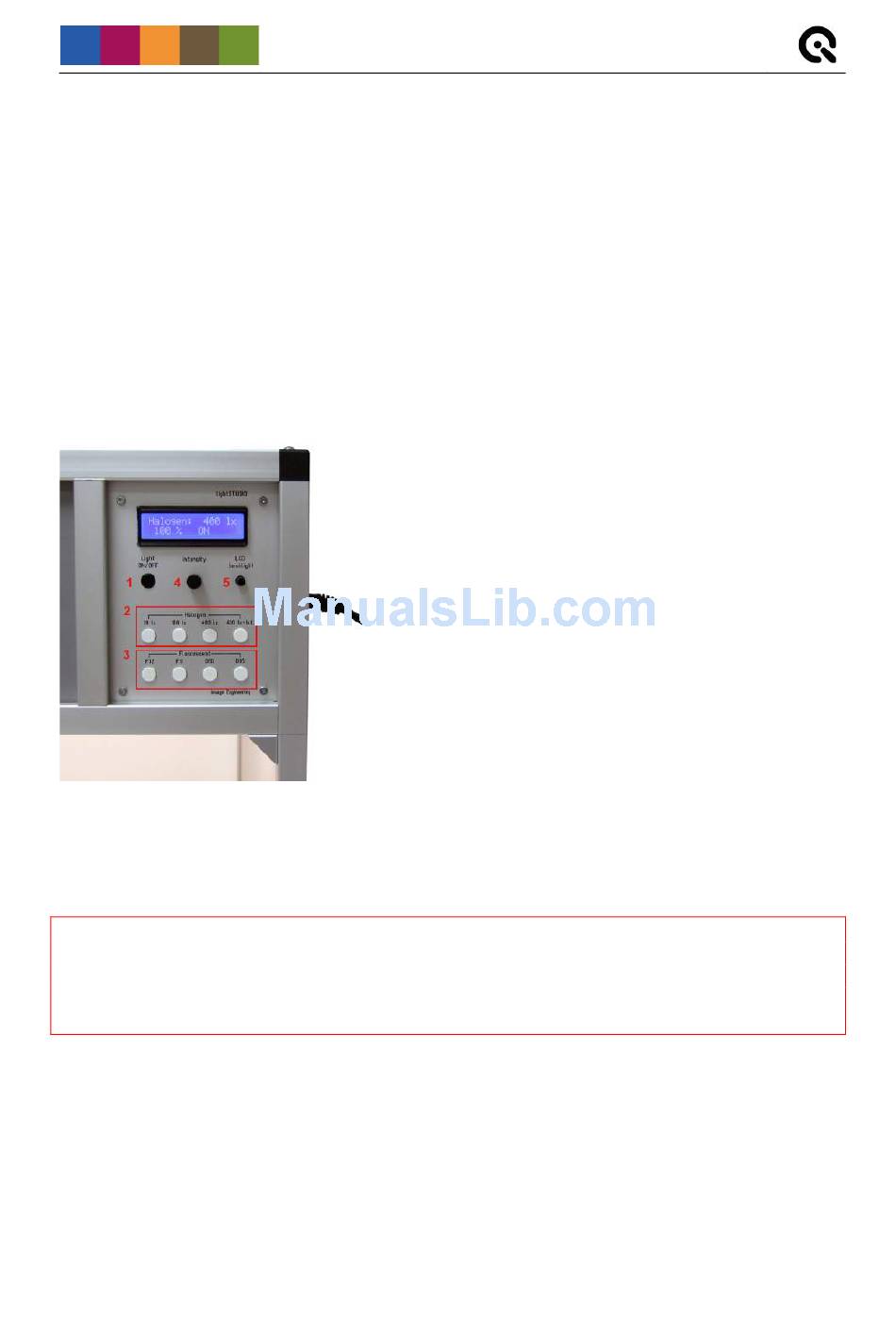

For the initial operation, select a light source by using one of
the push-buttons [2, 3] after turning the power supply on.
Press the button "Light ON/OFF" [1] to illuminate the
corresponding light source.
The control panel has eight knobs for switching the lights:
four for the fluorescent lamps F12, F11, D50 and D65 [3]
and four for the halogen lamps [2]. The latter have different
preset values for the intensities of 10 lx, 100 lx and 400 lx
and one for 400 lx with blue filtering. The knobs for the three
halogen settings use the same lamp type but with different
current supply. With the rotary knob [4] the intensity for all
light sources can be varied from 0 to100 % in 1% steps.
