REMOTE KEYPAD (KP-23B-EL / KP-23B-EL-F1)

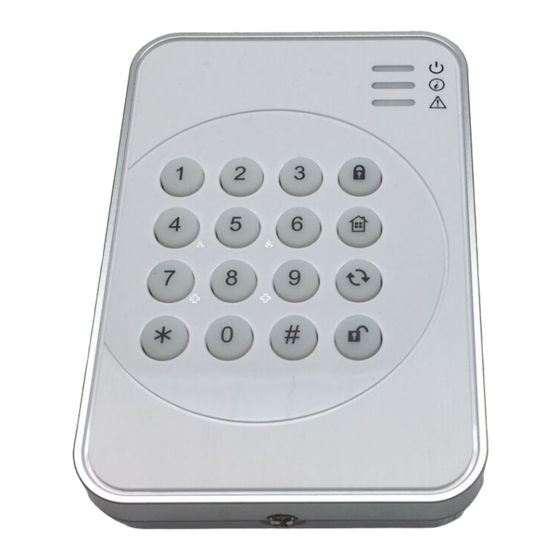

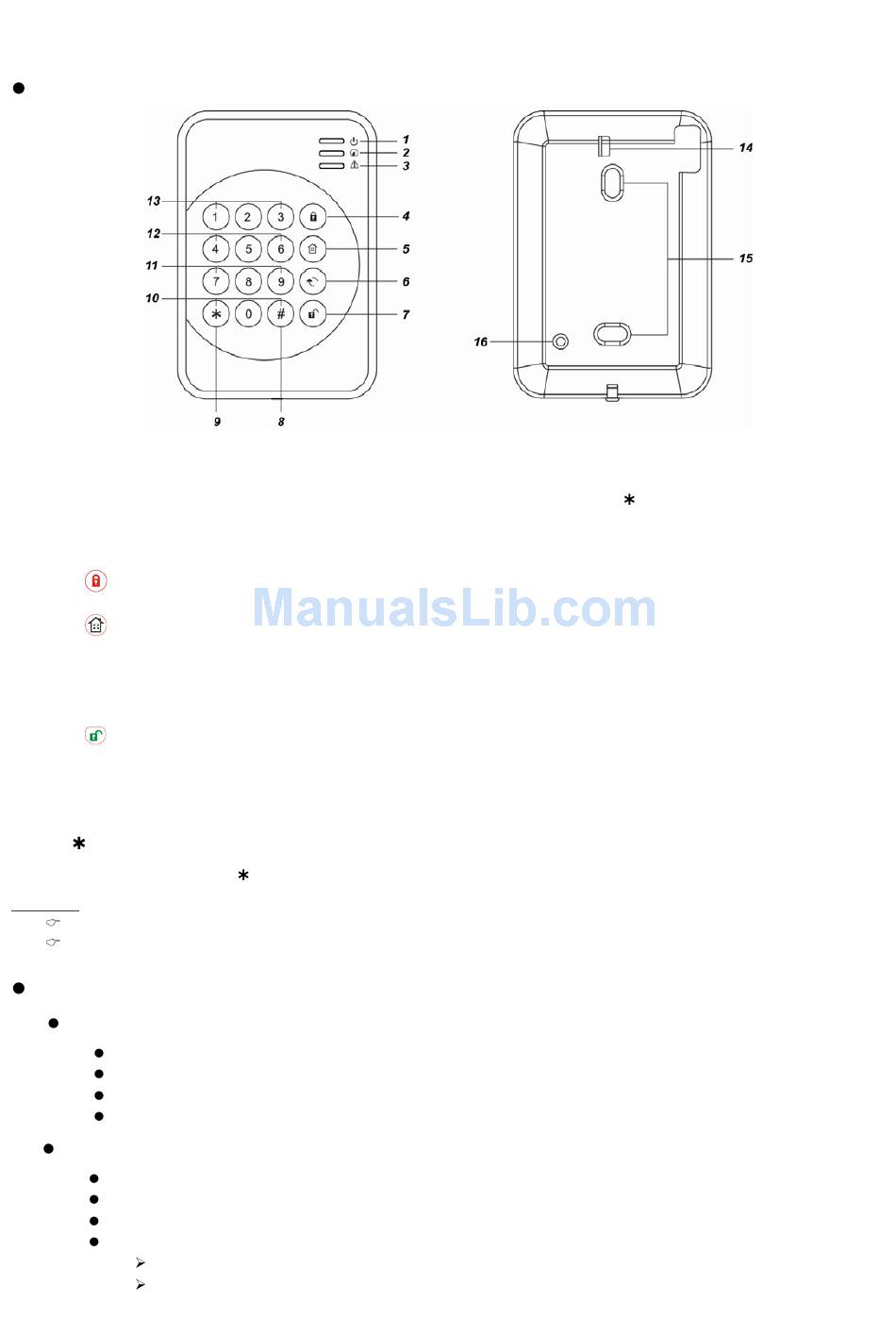

Identifying the Parts
1. Active LED
2. Status LED
3. Fault Display LED
4.
Arm Key
5.
Home Key
6. Χ Key
- Check Control Panel Status
7.
Disarm Key
- to move back one step
8. # Key
9.
Key
- Enter KP Pin Code +
<NOTE>
A short beep will sound along with key pressing to indicate that the button pressed is valid.
4 continuous beeps will sound indicating mistake and the user should repeat the process again.
LED Indicator
Active LED (Blue/Amber):
Blue LED on 5 seconds: the system is in Normal Operation Mode.
Blue LED flashes for 5 seconds: low battery in Normal Operation Mode.
Amber LED on: the system is in Test Mode.
Amber LED flash: low battery in Test Mode.
Status LED (Blue/Red):
Red LED on: the system is in Away Mode
Red LED flash: the system is in Home Mode.
Blue LED on: activation of Disarm Mode.
Blue LED flash: failure due to the following reasons:
No response sent by the control panel within 4 seconds.
Control Panel User PIN code was incorrect.
Key to enter Test Mode
10. Send Learning Code
- Press both # and
Code
11. Medical Alarm (if enabled)
- press both 7 and 9 to trigger medical alarm
12. Fire Alarm (if enabled)
- press both 4 and 6 to trigger fire alarm
13. Panic Alarm (if enabled)
-press both 1 and 3 to trigger panic alarm
14. Battery Insulator
15. Mounting Holes
16. Tamper Swtich
1
Jul-5-2016
keys together to Send Learning
Advertisement
Table of Contents
Related Manuals for Climax KP-23B-EL
Summary of Contents for Climax KP-23B-EL
- Page 1 REMOTE KEYPAD (KP-23B-EL / KP-23B-EL-F1) Jul-5-2016 Identifying the Parts 10. Send Learning Code 1. Active LED - Press both # and keys together to Send Learning 2. Status LED Code 3. Fault Display LED 11. Medical Alarm (if enabled) - press both 7 and 9 to trigger medical alarm Arm Key 12.
- Page 2 Request for Home mode during Arm mode. Request for Force arm. Fault LED (Amber): Flash: system failure (panel tamper, AC fault, sensor temper, sensor out of order, open door) On: Alarm Memory (depend on Control Panel). Power Remote keypad uses one EL123AP 3V Lithium battery as its power source. Remote keypad can also detect the battery status.
- Page 3 <NOTE> If the remote keypad did not sound a long beep, it means the remote keypad did not send the learning code to the Control Panel, please press ＊ key then 7 key again to send the learning code.. III. If the Control Panel receives the learning code, it will display the info accordingly. Refer to the operation manual of your Control Panel to complete the learn-in process.
- Page 4 Dual-key Alarm Function Panic Alarm — Press both 1 and 3 keys to trigger Panic alarm. Fire Alarm — Press both 4 and 6 keys to trigger Fire alarm. Medical Alarm — Press both 7 and 9 keys to trigger Medical alarm. <NOTE>...
