9 Display Video Wall Processor
Model #: DVI-VIDEOWALL-9X
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
www.avenview.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview DVI-VIDEOWALL-9X
Summary of Contents for Avenview DVI-VIDEOWALL-9X
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
-
Page 2: Table Of Contents
Introduction ... 5 Package Contents ... 8 Before Installation... 8 Panel Description ... 9 1.7.1 DVI-VIDEOWALL-9X Front Panel ... 9 1.7.2 DVI-VIDEOWALL-9X Rear Panel ... 9 1.7.3 Inputs and Outputs ... 10 Installation ... 11 Operation and Software ... 12 1.9.1 System Requirements ... - Page 3 1.10.1 DVI-IN ... 18 1.10.2 DVI-OUT ... 18 1.11 General Troubleshooting ... 19 Section 2: Specifications ... 20 www.avenview.com...
-
Page 4: Section 1: Getting Started
Removal, installation, and set-up service charges. Safety Instructions The Avenview DVI-VIDEOWALL-9X. 9-Display Video Wall Processor has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the DVI-VIDEOWALL-9X should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
The output display is grained up to 255 by 255 squares. Virtually any setups for the display layout can be possible by the provided software. The DVI-VIDEOWALL-9X allows you to manipulate two input videos, wherever positions and whatever sizes you want for viewing. The embedded scalar converts signals from two of the input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). - Page 6 www.avenview.com...
- Page 7 www.avenview.com...
-
Page 8: Package Contents
Package Contents Before you start the installation of the converter, please check the package contents. DVI-VIDEOWALL-9X RS232 to USB Adapter Rack-mounting Kit UL AC Power Cord Installation Software CD DVI to VGA Adapter Component to VGA Adapter DVI to DVI & VGA breakout cable Composite &... -
Page 9: Panel Description

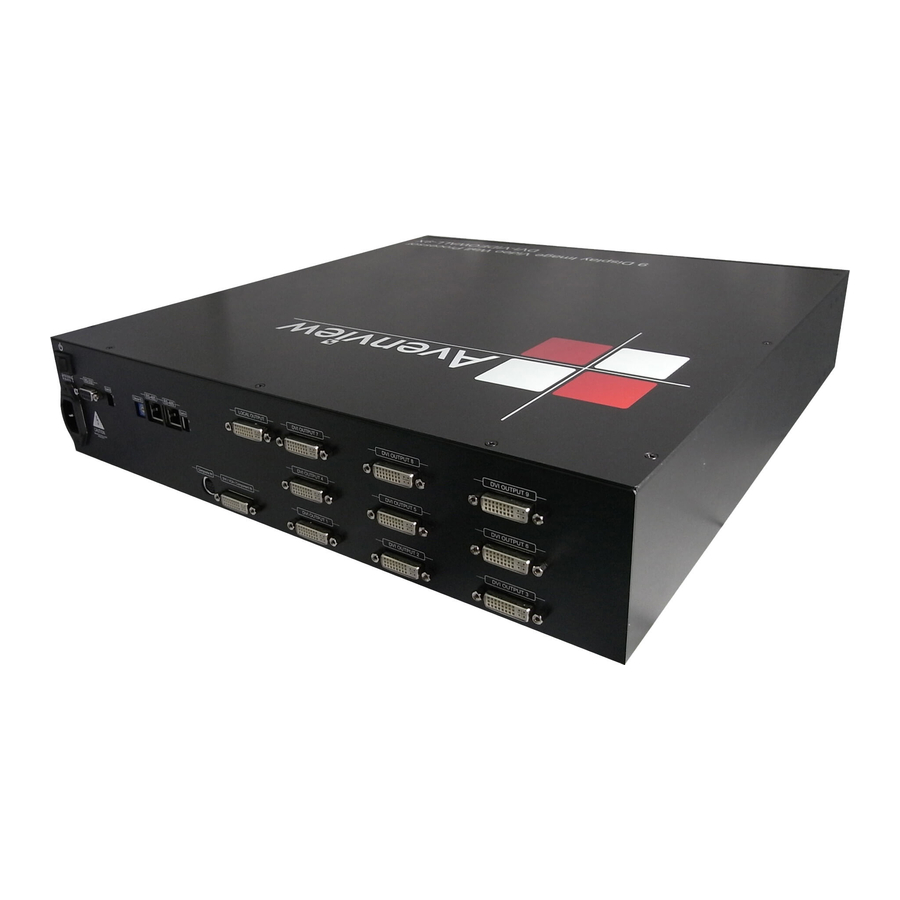

Panel Description 1.7.1 DVI-VIDEOWALL-9X Front Panel 1. LED: Shows current configuration 1.7.2 DVI-VIDEOWALL-9X Rear Panel 1. AC Power 3. RS485 Connector 5. DVI Input Connector 7. DVI Output Connectors 1 – 9 2. RS232 Connector 4. S-Video/Composite Input Connector 6. DVI Local Output Connector... -
Page 10: Inputs And Outputs
You can pick up one of the digital inputs and one of the analog inputs, and then DVI-VIDEOWALL-9X will display the mixed video on the connected 9 displays. With an advanced de-interlace built in, low resolution but popular video formats such as NTSC/PAL will be improved. -
Page 11: Installation
RS-232 to USB Adapter and provided Avenview software. DO NOT block the sides of this device or stack another device on the top or bottom of the DVI-VIDEOWALL-9X. If sides of the units are blocked it will block the air flow from the fans on the side of the unit. This could cause system to over-heat, which may result in system failure. -
Page 12: Operation And Software
The process takes 5 – 15 seconds. If there is no response, a warning window will show up. The possible reasons causing above error could be: No Power to DVI-VIDEOWALL-9X or it is in sleep state. If this is the case then check the power and restart theDVI-VIDEOWALL-9X The serial connection is not well established. -
Page 13: Software Operation
Setting to save the changes. 3. Firmware Ver.: Display the current firmware of the device. 4. Color Balance: The color of the video can be automatically adjusted. It only works when the source is Analog and the mode is Full Screen. www.avenview.com... -
Page 14: Settings
4. Side by Side: The two input sources are displayed side by side 5. Custom Define PAP: User can adjust the layout of the two input sources without any limitations. Main and Sub sources can be from the same Input. www.avenview.com... -
Page 15: Setup Individual Output Channel
1.9.4 Setup Individual Output Channel There are totally 9 channel outputs for DVI-VIDEOWALL-9X, and each output can be independently setup to display any area of the input video. Each output can be with different output resolutions to adapt different combinations of monitors or projectors. - Page 16 “Fine Tune by Pixel” offers similar approach to adjust the position and area of the Output channel. The idea behind this section is the same to “Fine Tune by Percentage”. The difference is that the adjustment is based on Pixel. Users can therefore adjust the Output Channel area based on Pixels. For Inward Shrink www.avenview.com...
-
Page 17: Cascading
1.9.5 CASCADING The Avenview DVI-VIDEOWALL-9X can be cascaded with as many as 255 DVI-VIDEOWALL-9X devices. To cascade two DVI-VIDEOWALL-9X, connect a DVI cable from Local Output of Unit 1 to DVI Input of Unit 2. www.avenview.com... -
Page 18: Supported Resolutions
VESA VESA VESA VESA Supported Mode VESA VESA VESA VESA VESA VESA VESA VESA www.avenview.com Resolution 832x624 @75Hz 1024x768 @60Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @72Hz 1024x768 @75Hz 1024x768 @75Hz 1024x768 @85Hz 1152x864 @75Hz 1152x870 @75Hz 1152x900 @66Hz 1152x900 @76Hz... -
Page 19: General Troubleshooting
Poor Quality Video Wrong Color Poor Linking Possible Solution Check if AC Power Cord is firmly plugged into DVI-VIDEOWALL-9X If you are recovering from Power Outage, leave the device OFF for a while and then power it ON again. ... -
Page 20: Section 2: Specifications
Power Consumption Environmental Operating Temperature Storage Temperature Relative Humidity Description DVI-VIDEOWALL-9X 9 Display Video Wall Processor HDMI, DVI, VGA, Component, S-Video, Composite (Only one Digital and one Analog can be input simultaneously) DVI & VGA DVI (Single Link 4.95Gbps) VGA (165MHz) - Page 21 LAN cables. For resolution greater than 1080i or 1280x1024, a CAT6 cable is recommended. 7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input #1] generally can produce better transmission performance among all HDMI inputs. www.avenview.com...
- Page 22 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
