Important: Retain these instructions
These instructions shall be used by trained service personnel only
If the equipment is used in a manner not specified by these instructions, the protection provided by the equipment may be impaired.
CONTENTS
1
Box contents ..................................................................1
2
Storing ...........................................................................1
1
BOX CONTENTS
3
INSTALLATION
IMPORTANT
To satisfy the requirements of a limited power source
(EN60950-1). The RD-IQL must only be powered by TREND
IQVAV, IQL11+, IQL13+, IQL15+.
RD-IQL Rating 24 Vdc, 40mA
Dimensions
1
150 mm (6")
500 mm
(1' 6")
minimum
Mounting Requirements
2

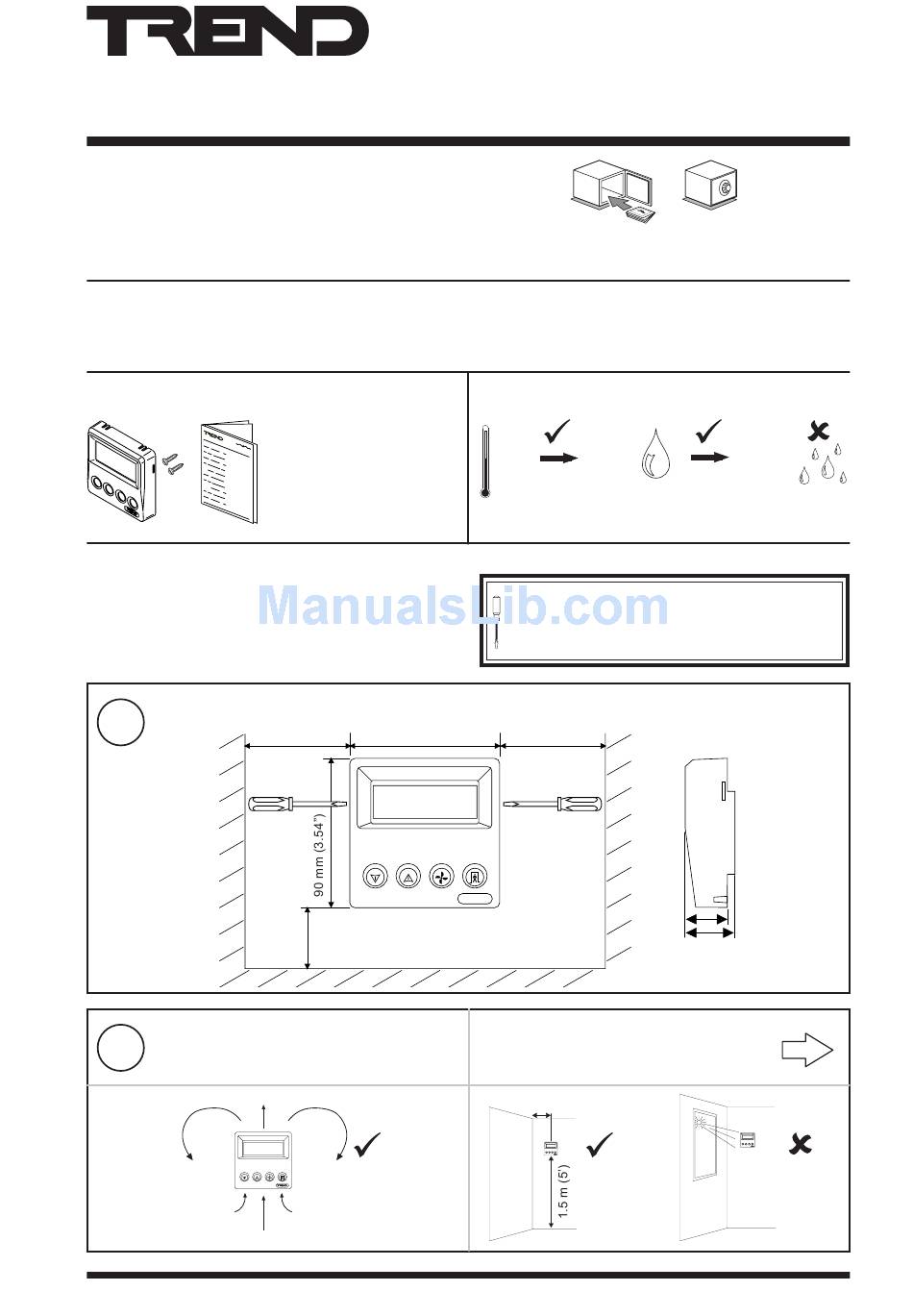

RD-IQL Installation Instructions TG200576 Issue 4, 23-May-2014
RD-IQL Installation
Instructions (TG200576)
90 mm (3.54")
Installation Instructions

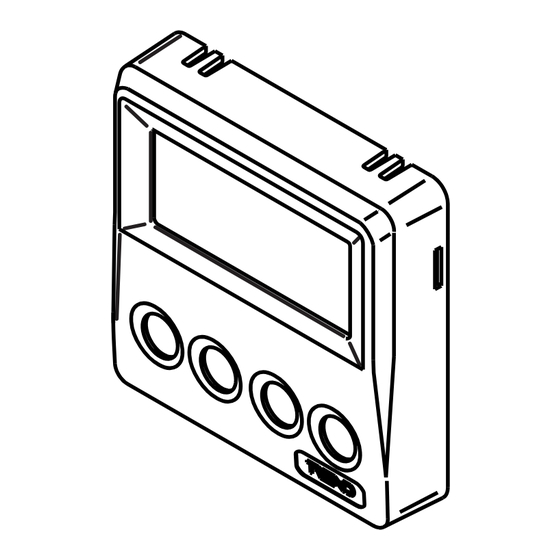

Room Display
3
Installation .....................................................................1
4
Disposal .........................................................................8
2
STORING
(Altitude: <2000 m (6562')
+50 °C
-10 °C
(+122 °F)
(+14 °F)
H O
It is recommended that the installation should comply
with the local electrical safety installation practices (e.g.
HSE Memorandum of Guidance on Electricity at Work
Regulations 1989, USA National Electric Code).
150 mm (6")
continued over page
> 50 cm (1'6")
RD-IQL
0
95 %RH
2
25 mm (0.98")
30 mm
(1.18")
1
Advertisement
Related Manuals for TREND RD-IQL
Summary of Contents for TREND RD-IQL
- Page 1 It is recommended that the installation should comply To satisfy the requirements of a limited power source with the local electrical safety installation practices (e.g. (EN60950-1). The RD-IQL must only be powered by TREND HSE Memorandum of Guidance on Electricity at Work IQVAV, IQL11+, IQL13+, IQL15+.
- Page 2 The RD’s potentiometer must be used (if potentiometer required); a direct connected potentiometer may not be used. A direct connected temperature sensor may be used rather than the RD’s. RD-IQL/K precludes use of PIR/pushbutton inputs and (on IQLVAV only) alarm contact input. A separate fan speed switch may be used (IQL13+, 15+).
- Page 3 SET v5.1 IQLTool2 Configure parameters The following parameters must be set up (their configuration is facilitated by IQLTool2 ‘Configure for RD-IQL’ feature): Local Space Temp Type S9(Y=6) (use RD) - IQL11+, 13+, 15+, IQLVAV Local SP Adjust Type S10(Y=6) (use RD) - IQL11+, 13+, 15+, IQLVAV Local Fan Speed Type S11(Y=6) (use RD) - IQL13+, 15+ These settings are facilitated by IQLTool2.
- Page 4 ENG + 2 °C every 7 seconds Firmware version °C Mount Unit Either standard UK Pattress Box or Panel 60 mm (2.36”) 46 mm (1.81”) 2 off M3.5 x 35 mm screws provided M3.5 screw RD-IQL Installation Instructions TG200576 Issue 4, 23-May-2014...
- Page 5 On 4 On 4 On 4 On 5 On 5 On 5 On 6 On 6 Display Occupation State if Occupation State Display OK [Switch off for option /K] default = Normal Mode RD-IQL Installation Instructions TG200576 Issue 4, 23-May-2014...
- Page 6 Defaults as shown in steps 9 and 10 plus PIN default - no PIN Data Validation Mode RD checks settings valid - may declare errors - see step 13 Normal Mode Replace Front Panel RD-IQL Installation Instructions TG200576 Issue 4, 23-May-2014...
- Page 7 If Fan Mode = 4 * Note that when using an IQL standard strategy, in step E the RD can override the occupation on, but not off. The strategy will define when the occupation switches off. RD-IQL Installation Instructions TG200576 Issue 4, 23-May-2014...
- Page 8 Division of Honeywell Technologies Sàrl, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
