cuts "across its beams, not directly towards them."
(FIGURE 6).
SENSOR
LESS SENSITIVE
SENSITIVITY TO MOTION
FIGURE 6
* Maximum open space transmission range. Actual
range may vary dependent upon building materials and
other obstructions in the path of the wireless signal.

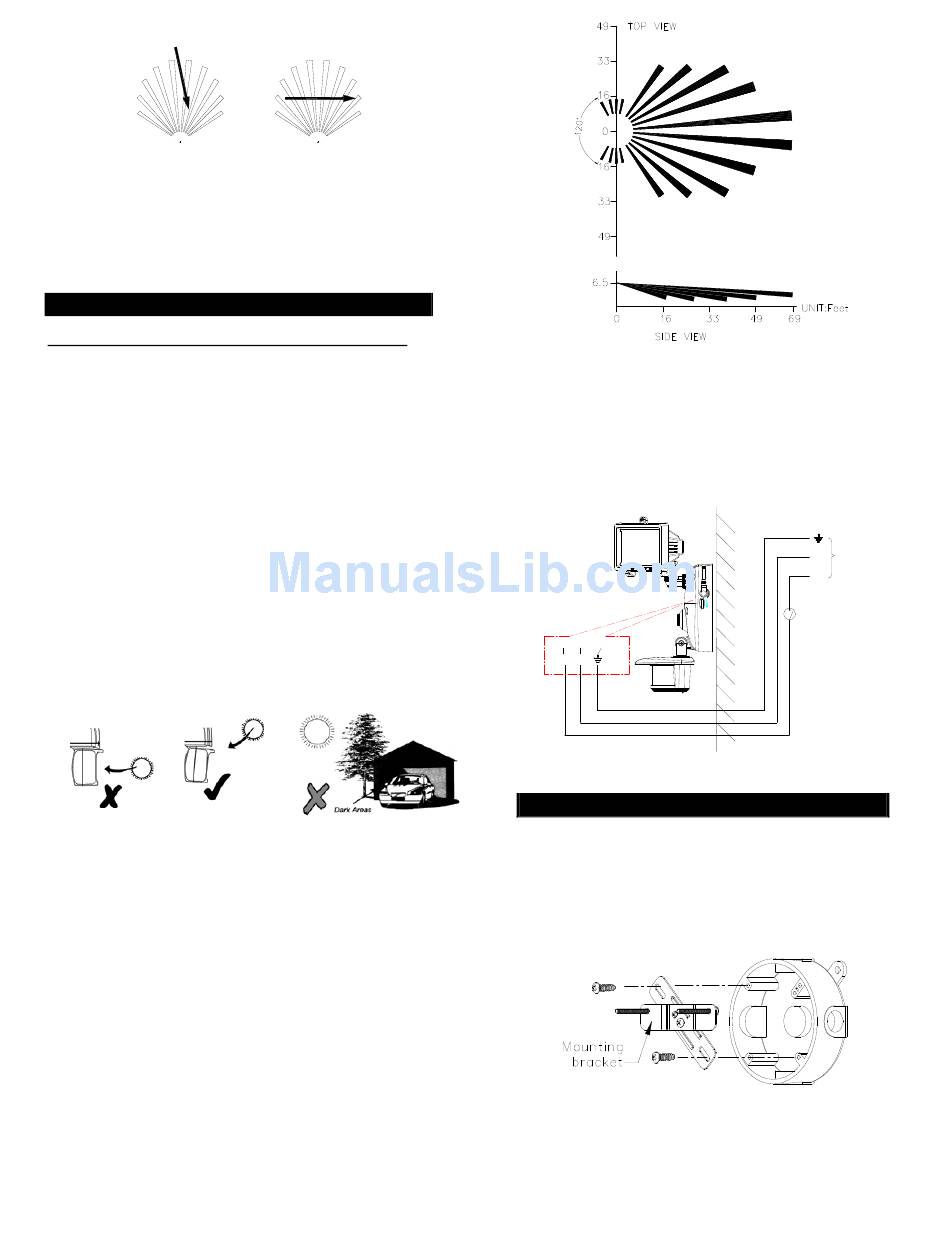

INSTALLATION

Avoid pointing the camera directly at a light source.
When installing the camera outdoors, you should ensure
that the camera lens will not become dusty and the
camera does not point directly at a light source (i.e.
direct lighting or sun light), as the picture quality will be
impaired. Additionally, the camera must be positioned so
that it will not point directly to the sun (sunrise or sunset)
or any bright lights as this may cause damage to the
camera. The best viewing angle is achieved at greater
heights (i.e. 8 to 9 ft) with the camera pointing down.
Also, avoid viewing areas where half the area is in bright
sunlight and the other half is dark.
The ideal position for your camera will vary greatly
depending upon your application. If you are installing
the camera adjacent to your front door, bear in mind not
to position it too far away, as you may not be able to
hear any speech or sound.
A drill and a screwdriver are needed for installation.
Select a location for the unit based on the coverage
angles shown.
SENSOR
MORE SENSITIVE
FIGURE 7
Install a wall switch adjacent to the power source.
(FIGURE 8). This will help you operate this PIR
LIGHTING CAMERA with ease. See OPERATION for
further information.
B l a c k
W h i t e
Yellow/Green
L
N
FIGURE 8

WIRING INSTRUCTION

(1) Switch off the power source or wall switch.
(2) Line up the holes on the mounting bracket with the
holes on your junction box. Using fitting screws
(depending on size of the holes in your junction box),
attach the mounting bracket to your junction box.
(FIGURE 9).
FIGURE 9
(3) Place the gasket in position before wiring.
(4) Connect the black wire from the fixture to the
black (Live) power supply wire from your power
source using the wire nuts provided. Connect the
white wire from the fixture to the white (Neutral)
power supply wire using the wire nuts provided.
Connect the yellow/green wire from the fixture to the
N
A C
P o w e r
L
W A L L
S W
