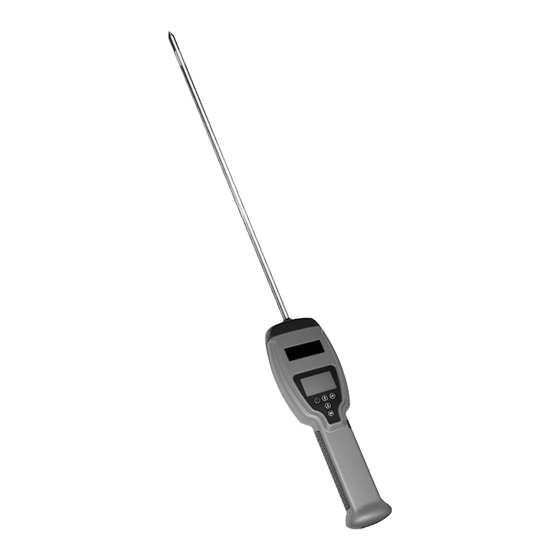

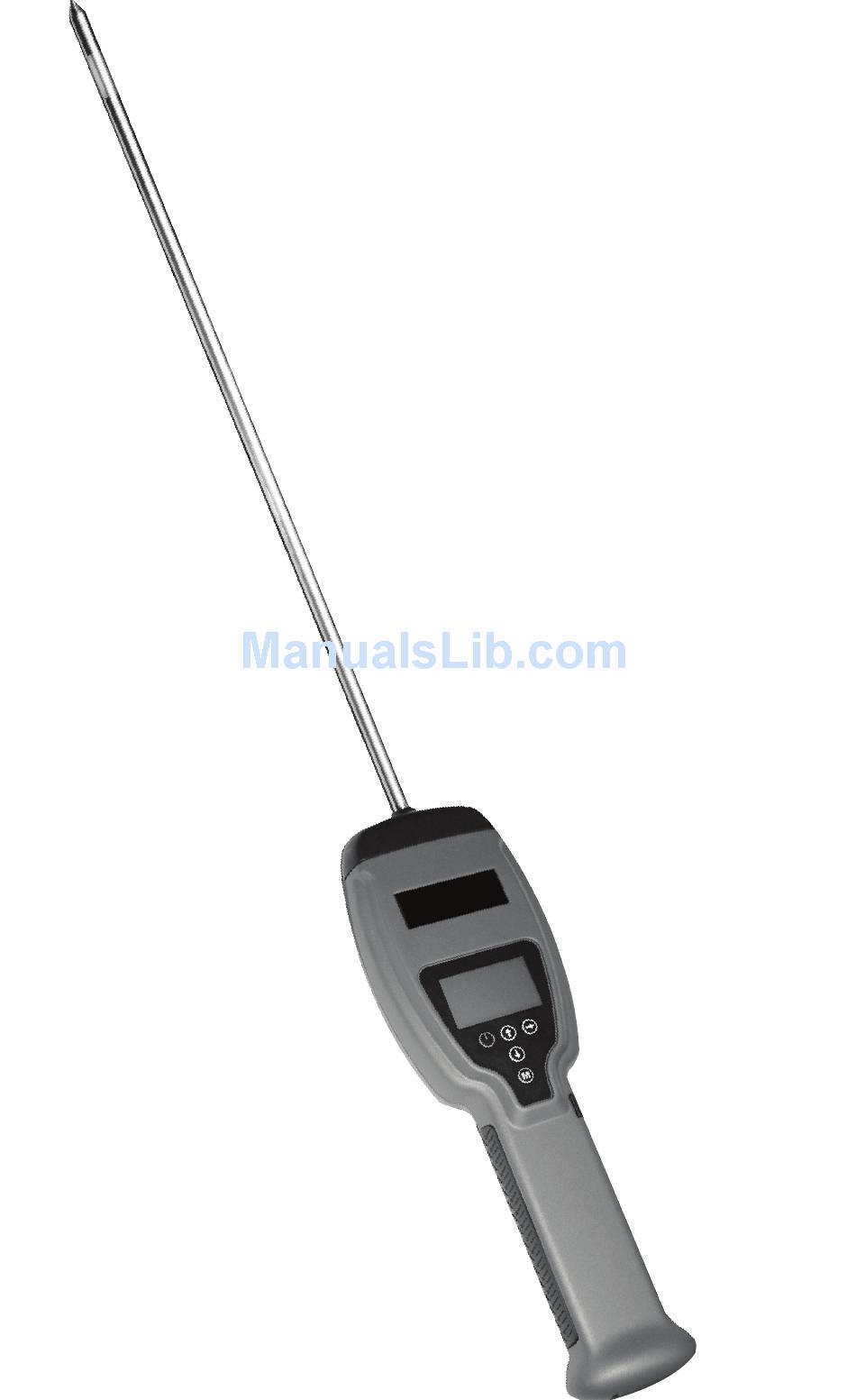

- Page 1 Operators Manual Advanced Hay Tester Moisture and temperature tester for baled hay, haylage, straw, and silage ENGLISH DOCU-M0180...
-
Page 3: Package Contents
Thank you for choosing our new Advanced Hay Tester. It ensures quick and easy measurement of moisture and temperature of baled hay, haylage, straw and silage. Patent pending automatic bale density compensation allows it to determine how dense the bale is and to adjust moisture results accordingly for improved accuracy. Other user friendly features include offset calibration, temperature compensation, automatic moisture result update each time the probe is pushed forward (patent pending), memory holding up to 1000 readings for transfer to a PC via USB, and a... - Page 4 Power on. If fault repeats, take a note of the error code number displayed next to this symbol and contact the manufacturer, Agratronix Measurement memory is almost full. See chapters 7 and 8 for instructions on...
- Page 5 4 Before use 1. Check that the probe is dry and clean and that the device appears undamaged. 2. Install or change the battery as illustrated. 3. Power on by pressing the l key. 4. Configure device settings to suit your preferences, see chapter 5. 5.
- Page 6 • Automatic power-off delay adjustment • Averaging length for moisture measurement (= the number of most recent moisture results to be calculated in the displayed average and high moisture estimate) • Display backlight brightness (NOTE: affects battery life) • Display contrast (adjust this if it is difficult to read the display) •...
-
Page 7: Temperature Measurement
Moisture measurement display: 1. Bale number (= memory slot number) 2. Bale type 3. Result of latest moisture measurement (”---%”, if there is no result yet, or e.g. <8% if bale was too dry to be measured or e.g. >80% if bale was too wet to be measured. 5. -
Page 8: Moisture Measurement
Note: Temperature measurement settling time varies greatly with bale type. Wet and dense gives faster settling than dry and light. Time after which 90% of temperature change has been achieved ranges typically from 8 minutes with 60% haylage, to 30 minutes with 16% straw. - Page 9 Once bale type and bale temperature have been set, moisture measurement may start: The tester asks you to push the probe into the bale. Hold the tester by the handle only. The tester estimates bale density during the push by measuring push force and probe motion.
-
Page 10: Cleaning And Maintenance
Measurement results stored in memory may be transferred to a personal computer using the USB port. Pull out the USB plug and use the supplied cable. Software required for data transfer will be available on our web page at http://agratronix.com. 9 Cleaning and Maintenance Store the tester in a dry place, protected from direct sunlight. -
Page 11: Factory Calibration
9.1 Cleaning The device may be cleaned by wiping with a damp cloth. Do not use strong detergents or running water. The tip of the probe must be kept clean and dry to retain measurement accuracy. The tip should be wiped dry and clean immediately after use, before it becomes difficult to clean. Stubborn stains may be removed by gently wiping with a damp soft scouring pad. -
Page 12: Factory Reset
We may publish firmware updates that improve measurement accuracy or usability. Updates are installed via the USB port using a personal computer. Updates and update instructions will become available on our web page at http://agratronix.com. 9.5 Factory Reset If the tester does not function as expected - for example, if you have chosen a language that you do not understand - factory default settings may be restored as follows: Power off with the l key. - Page 13 Do not push the probe all the way to the soft core of a round bale. Do not push to the flat end of a round bale. Push the probe using the handle and the end of the handle. Do not touch the probe during a push or measurement.
-
Page 14: Technical Data
Technical Data Battery 9 V alkaline battery, IEC type 6LR61 tai 6LF22 Dimensions 32” x 4.25” x 2”, probe length: 20”, weight (with battery): 2 lbs. Moisture Hay and haylage: 8% … 80%, Straw: 8% ... 25%, Hay measurement Silage: 30% ... 84%, Corn Silage: 40% ... 76%, Alfalfa: range 8% ...75% (percentage of water in weight at 59°F (15°C) temperature) -
Page 15: Warranty
The liability of Agratronix is limited to the price of the product at a maximum. Agratronix does not accept any responsibility for any direct, indirect or consequential damages that are caused by the use of the product or the fact that the product could not be used. -
Page 16: Manufacturer's Contact Information
Manufacturer’s Contact Information Toll-Free 1-800-821-9542 330-562-2222 FAX 330-562-7403 www.AgraTronix.com 10375 State Route 43 Streetsboro, OH 44241... -
Page 17: Manual Del Operador
Manual del Operador Probador avanzado de heno Medidor de humedad y temperatura para heno en balas, heno enfardado, paja y ensilado ESPAÑOL DOCU-M0180... - Page 31 La responsabilidad de Agratronix se limita al precio del producto al máximo. Agratronix no acepta ninguna responsabilidad por los daños directos, indirectos o consecuentes que sean causados por el uso del producto o el...
-
Page 32: Información De Contacto Del Fabricante
Información de Contacto del Fabricante Número Gratuito 1-800-821-9542 330-562-2222 FAX 330-562-7403 www.AgraTronix.com 10375 State Route 43 Streetsboro, OH 44241... - Page 33 Manuel de l’opérateur Advanced Hay Tester Testeur d’humidité et de température pour bottes de foin, ensi-lage préfané, paille et ensilage FRANÇAIS DOCU-M0180...
-
Page 47: Garantie
La demande de garantie doit être accompagnée de la description de la panne, de la copie de la facture de vente et des coordonnées du client. Le fabricant, Agratronix réparera ou remplacera le produit défectueux et le renverra dès que possible. - Page 48 Coordonnées du fabricant Appel gratuit 1-800-821-9542 330-562-2222 FAX 330-562-7403 www.AgraTronix.com 10375 State Route 43 Streetsboro, OH 44241 États-Unis...
-
Page 49: Manual Do Utilizador
Manual do Utilizador Advanced Hay Tester Medidor da humida-de e temperatura pa-ra feno compactado, fenolagem, palha e ensilagem PORTUGAIS DOCU-M0180... - Page 63 O pedido de garantia deve ser acompanhado da descrição da falha, cópia do recibo de venda e informações de contato do cliente. O fabricante, Agratronix irá reparar ou substituir o produto defeituoso e devolvê-lo o mais rápido possível. A garantia não cobre os danos causados por erros ou uso descuidado do produto, instalação que não corresponda ao fornecido.
- Page 64 Informações de contato do fabricante Grátis 1-800-821-9542 330-562-2222 FAX 330-562-7403 www.AgraTronix.com 10375 State Route 43 Streetsboro, OH 44241...
