Broadcom BCM94301MPL User Manual page 17

Completing the Setup: Broadcom BCM94301MPL Mini PCI Card User's Guide

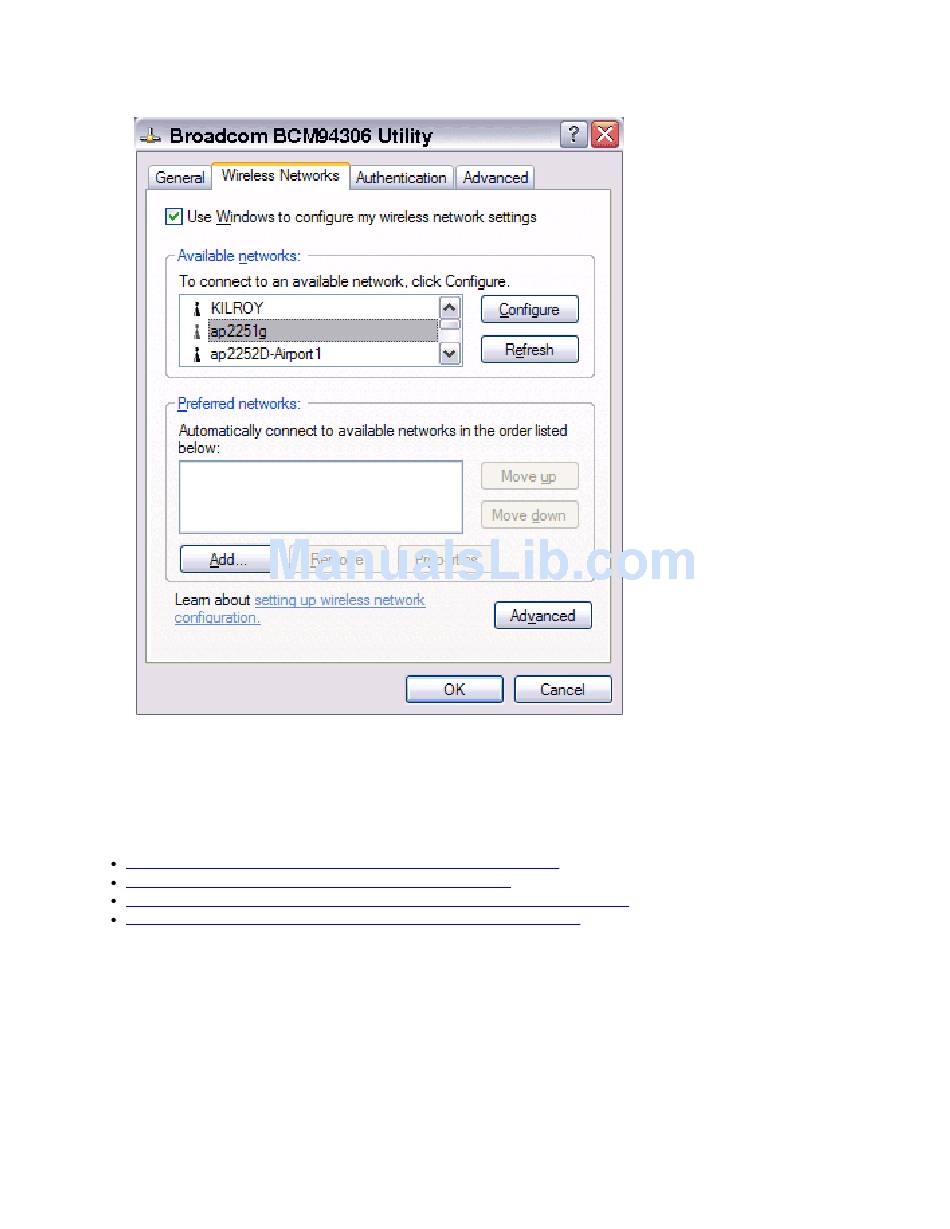

5. If the Wireless Networks tab is not on top, Click the Wireless Networks tab.
6. Verify that the Use Windows to configure my wireless network settings box is selected. If it is not, select it.
You can configure a network profile for networks that are listed in the Available networks list as well as those that are not listed. When
you have completed configuring a network profile, the network name and icon appear at the top of the Preferred networks list. Your
computer automatically connects to the network at the top of the Preferred networks list. Follow the applicable instruction set below,
based on whether or not the network is listed and whether or not the network requires a WEP key (check with your network
administrator to see if a WEP key is required). NOTE—Both the network name and the network key are case-sensitive.
Configuring a profile for a listed network that does not require a WEP key
Configuring a profile for a listed network that requires a WEP key
Configuring a profile for an network that is not listed and does not require a WEP key
Configuring a profile for an network that is not listed and requires a WEP key
Configuring a profile for a listed network that does not require a WEP key (Windows XP
environment)
1. After opening the utility, select the network from the Available networks list and click Configure.
