FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084
Conditions on using BRCM regulatory approvals:
A.
Customer must ensure that its product (the "CUSTOMER Product") is electrically
identical to Broadcom's product. Customer acknowledges that any modifications to
Broadcom's product may invalidate regulatory approvals in relation to the CUSTOMER
Product, or may necessitate notifications to the relevant regulatory authorities.
B.
OEM must inform Broadcom of any changes which may require Class I or Class
II permissive changes. Any substituted antenna and RF cable assemblies must be
approved by Broadcom in order to maintain compliance.
C.
Appropriate labels must be affixed to the CUSTOMER Product that comply with
applicable regulations in all respects.
D.
A user's manual or instruction manual must be included with the customer
product that contains the text as required by applicable law. Without limitation of the
foregoing, an example (for illustration purposes only) of possible text to include is set
forth below:
1. USA—Federal Communications Commission (FCC)
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
OEM Installation Guidance Document

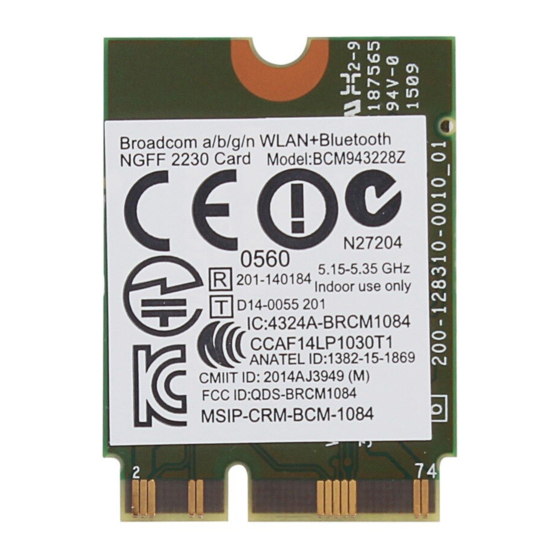

For Broadcom BCM943228Z
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Broadcom BCM943228Z
Summary of Contents for Broadcom BCM943228Z
- Page 1 Broadcom’s product may invalidate regulatory approvals in relation to the CUSTOMER Product, or may necessitate notifications to the relevant regulatory authorities. OEM must inform Broadcom of any changes which may require Class I or Class II permissive changes. Any substituted antenna and RF cable assemblies must be approved by Broadcom in order to maintain compliance.
- Page 2 (Chain 1 and Chain 2) is 5cm. - For standalone SAR testing, the antenna is mounted on lossless foam material for testing. In order to use Broadcom modular approval, PC–OEMs must install antennas with non–conductive materials surrounding the antenna.
- Page 3 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 4. The final system integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module except such device has implemented two-ways authentication between module and the host system.
- Page 4 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 gain of 3.33dB/2.4GHz and 6.21dBi/5GHz. Any other detachable antennas, with a different type or having a gain greater than 3.33dB/2.4GHz and 6.21dBi/5GHz are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
- Page 5 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 Cet émetteur radio , IC ID: 4324A – BRCM1084 , a été approuvé par Industrie Canada pour fonctionner avec l'antenne intégrée ou une antenne WLAN amovible avec un gain maximum de 3.33dB/2.4GHz et 6.21dBi/5GHz Les autres antennes détachables, avec .
- Page 6 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 Information to be supplied to the users: 802.11a Restrictions: - This product is for indoor use only when using channels 36, 40, 44, 48, 52, 56, 60, or 64 (5150–...
- Page 7 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 Note for system integrators: - The module is tested to comply with the requirement of the R&TTE Directive. System integrators are responsible for compliance of the final device with the R&TTE Directive.
- Page 8 없음" 6. Argentina The current approval is in the name of Broadcom’s local representative. It may be necessary to obtain regulatory approval in the name of the local distributor or importer. We suggest manufacturers check with their local distributors and importers in Argentina.
- Page 9 OEM Installation Guidance Document For Broadcom BCM943228Z FCC ID: QDS-BRCM1084; IC: 4324A-BRCM1084 "This equipment operates in secondary character. It can be affected by harmful interference. However, it cannot cause interference to systems operating in primary character." 8. South Africa – ICASA PC-OEMs must make arrangement for importers to supply spare parts and carry out repairs in South Africa.
-
Page 10: Before You Begin
Things you should know When you start your computer, your Broadcom BCM943228Z PCI-E Mini card detects certain wireless networks that are within range. Before you can connect to these and other wireless networks, you must configure a profile for each network using the information you obtained from your network administrator. - Page 11 Back to top...
- Page 12 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Back to Contents Page Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Overview Utility Components Overview The Broadcom Wireless Utility enables you to do the following network tasks:...
-
Page 13: Utility Icon
A-ID group changes Manually import EAP-FAST PACS ● On the Add menu, you can use either the wireless network wizard that is available from Broadcom Wireless Utility (see Connecting to a Basic Network or Creating an Ad Hoc Network Using the Wireless Network Wizard") or the utility (see... - Page 14 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide To disable the radio, clear the Enable radio check box. To enable the radio, select the Enable radio check box. To hide the utility icon , clear the Show utility icon check box.
- Page 15 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide For networks that use the EAP-FAST authentication method, the Wireless WLAN Card Utility automatically adds trusted servers to the trust list and accepts auto-provisioning (A-ID) group changes by default.
-
Page 16: Link Status
Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide 1. Open Broadcom Wireless Utility. 2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and then click Administrator Settings. 3. In the Trust list (A-ID), click the name of the trusted server you want to delete, and then click Delete. - Page 17 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide The status of your network connection is also indicated by the appearance of the utility icon . The number and color of the radio waves indicates the strength or weakness of the signal (see Table 1.
- Page 18 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Icon Indicated Received Signal Strength Appearance The signal strength is very good or excellent. The signal strength is weak. See Troubleshooting for suggested action. No signal is being received. See...
-
Page 19: Site Monitor
Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Site Monitor Basic Site Monitor On the Site Monitor tab, the basic Site Monitor displays information about wireless routers/APs ad hoc networks that are within range. To sort the list, click the column heading that shows the characteristic you want to sort by. - Page 20 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide NOTES: Nonbroadcasting networks are labeled (nonbroadcasting) under Network Name. ● The network performance may be degraded while Site Monitor is displaying ● nonbroadcasting APs to which you are not currently connected.
- Page 21 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide You can adjust the time interval between scans by clicking the Options arrow, and then clicking either one of the preset values or clicking Customize to specify a different time interval.
- Page 22 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Initiation of user session ● Connecting to a network ● Disconnecting from current network ● Authentication mode being used ● Driver status ● Supplicant status ●...
-
Page 23: Step 1: Installing The Software
Using the Broadcom BT Utility: Quick Start Guide Step 1: Installing the Software NOTE: This installation is required before you insert the module into the USB port of your computer. 1. Insert the Bluetooth USB Module installation compact disc (CD) into the CD-ROM or DVD drive of your computer. - Page 24 Regulatory Statements for BCM943228Z Please refer to Broadcom OEM installation guide...
