- Page 1 USER MANUAL NAVC-307 Please read carefully before use It is recommended to use a Class 4 ( 4Mb/s write speed) Micro SDHC card for optimal performance. Some “Extreme Speed” class 10 UHS 2 cards may not function correctly...
-
Page 2: Table Of Contents
Digital Still Camera Playback Setup Hardware USB Connection Typical Photo/Video Storage Capacity Connecting the NAVC-307 in the car Trouble shooting / FAQ Product Specifications IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS - Read all instructions carefully before use. - Retain manuals for future reference. -
Page 3: Product Connections And Use

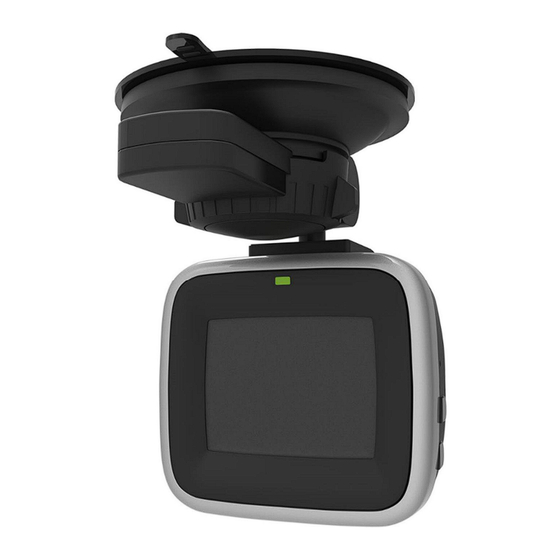

USER MANUAL NAVC-307 PRODUCT CONNECTIONS AND USE Microphone Up Button Suction Mount Micro SD Card Slot Fitting Power Button LED Indicator Light Reset Button Camera Speaker (Note: For button Menu Button sounds only) OK Button Suction Mount Micro USB Port... -
Page 4: Whats In The Box
SD card (the most common type) to ensure fast data transfer rates. Power on/off function (auto on/off) To turn on the NAVC-307, press the power button on the top of the device. To turn off, press the same power button. When connected to the 12v DC socket (cigarette socket) of your car, the NAVC-307 will turn on and off automatically when the car’s ignition is turned... -
Page 5: Recording
NAVC-307 Recording Turn on the NAVC-307. Recording should start automatically. If not press the “OK” button. When recording, the green indicator LED will begin to flash. The recorded file is saved onto the Micro SDHC Card. Stop recording by either pressing the OK button or turning the car ignition off (stopping power to the device) –... -
Page 6: Digital Video
Video time Select [1, 3 or 5mins] in If using a large capacity card (32GB) 10 minutes is recommended When set to “On”, the NAVC-307 will begin recording when it senses movement. For Motion Detect Select [On / Off] example; if the NAVC-307 is left on, the... -
Page 7: Playback
USER MANUAL NAVC-307 Playback Available Options: Play Options Action Choose to delete the current Delete [Select] Single, All image or all images. [Select] Lock One, All or Unlock Protect videos or picture so they Protect One or All cannot be deleted. -
Page 8: Usb Connection
This pause time will not be recorded. 3) As the NAVC-307 has a DC5V input, please use the original car charger which will step down the car’s 12VDC to 5VDC and fuse the circuit in the event of an overload. -
Page 9: Connecting The Navc-307 In The Car
Once the wiring and installation of the NAVC-307 have been completed, please check the following: - With the car’s ignition on (or engine started), the red LED indicator on the NAVC-307 will light up and the LCD screen should turn on. Recording should start automatically. This will indicate a successful installation –... -
Page 10: Trouble Shooting / Faq
USER MANUAL NAVC-307 TROUBLE SHOOTING / Q & A Fault Suggestion If in vehicle: check that the 12V socket is not still powered (on) when the key is removed (as with some European cars). Device does not Wait 20 seconds for file finalisation / closure. - Page 11 NAVC-307 Warranty Against Defects Navig8r is a brand sold and marketed by Laser Corporation Pty Ltd (“Laser”). Laser hereby warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
