Summary of Contents for Avayon DXP-10P II

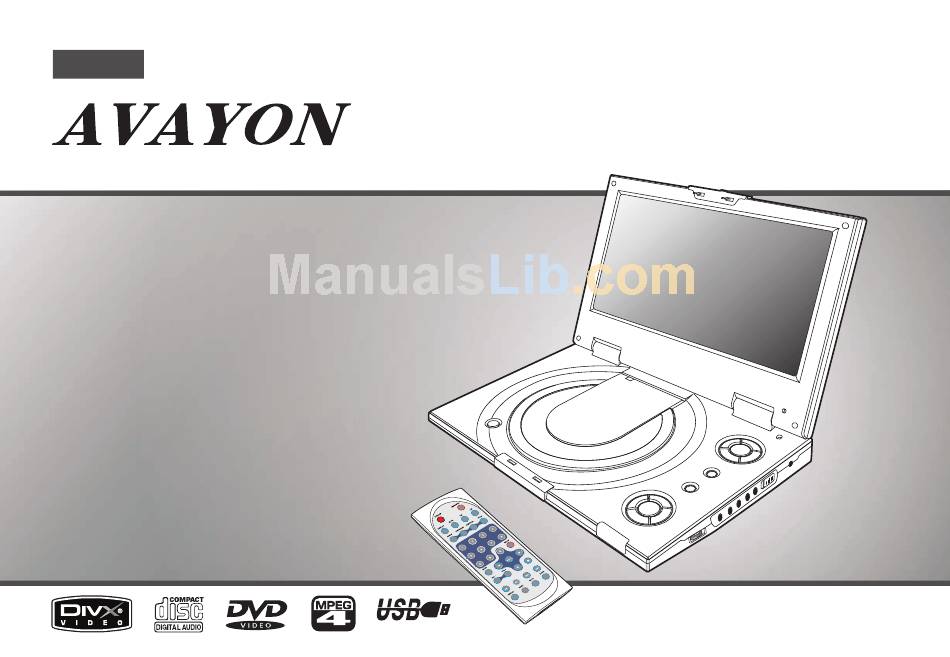

- Page 1 ENGLISH PORTABLE DivX MPEG-4 DVD PLAYER Model DXP-10P II OWNER`S MANUAL Please read this manual before operating. UNIVERSAL SERIAL BUS...
-
Page 3: Table Of Contents
Table of Contents Table of Contents...1 Safety Information...2 DivX Certification...3 Remote Control...3 Description...4 Using the Remote Control...5 Connecting Earphones (Optional Accessory)...6 Connecting to an External Component ...7 Connecting to a TV...8 Connecting to a Stereo Component...9 Using USB Port...10 Using the AC Adaptor...11 Using the Battery Pack...12 Cautions in Using Battery Pack...13 Installing Carrying Bag/Car Harness Kit(Optional Accessory)...14... -
Page 4: Table Of Contents
Safety Information Please read all of the safety and operating instructions before operating this Player, follow all warnings placed on the Player and in the user's manual. These safety and operating instructions should be retained for future reference. Safety Information Do not expose the system to excessive moisture, rain, sand, or heat sources. -
Page 5: Divx Certification
DivX Certification By displaying the DivX® logo, we are demonstrating that AVAYON products have been tested and certified by DivXNetworks, the creators of DivX® video technology, and are capable of playing all versions of DivX® video content. DivX Certified ensures that the DivX®... -
Page 6: Remote Control
Remote Control Remote Control 1.MENU/PBC Button Brings up the disc menu. 2.L/R Button Selects left, right and stereo sound tracks. 3.P/N Button Selects PAL/NTSC/AUTO TV systems. 4.TITLE Button 5.SUBTITLE Button Selects the subtitle's language. 6.Number Buttons (0,1,...,9) 7.SETUP Button Brings up the setup MENU to set up the system's language, audio, display, password etc. -
Page 7: Description
Description Front View 1.LCD 5.LCD on/off switch 2.OPEN 6.CURSOR(UP/DOWN/LEFT/ RIGHT), 3 .DISC COVER ENTER 7 .MENU/PBC/ 4.PLAYBACK BUTTONS PLAY ( 8 .DVD/USB SKIP-PREVIOUS/FAST REVERSE( SKIP-FORWARD/FAST FORWARD( PAUSE /STEP( STOP ( Left View Right View 1.OPEN LCD adj. 2. EARPHONE / SPEAKER VOLUME Button 3 .DC IN 12V 4.POWER ON/OFF... -
Page 8: Using The Remote Control
Using the Remote Control Installing the battery 1. Open the battery compartment cover using a coin. 2. Insert a 3V lithium battery into the battery compartment with the polarity ( + ) facing up as marked. Battery 3. Replace the battery compartment cover and turn clockwise until it stops. -
Page 9: Connecting Earphones (Optional Accessory)
Connecting Earphones (Optional Accessory) You can attach an earphone with a stereo mini-jack plug to the phone jack ( ) for private listening. The volume can be adjusted using VOL + and VOL - on the remote control. Note: When the earphone is connected to the Phone Jack ( ), the speaker will be disconnected. -
Page 10: Connecting To An External Component
Connecting to an External Component You can enjoy video from VCR or camcorder on your DVD player. 1. Turn off DVD player, VCR and other components. 2. Connect the audio and video cables as illustrated below. 3.Turn on power. VIDEO IN AUDIO IN/OUT VCR or other component equipped with external output connectors Video out: Yellow... -
Page 11: Connecting To A Tv
Connecting to a TV You can enjoy DVD quality video on TV screen. 1. Turn off DVD player and other components. 2. Connect the audio and video cables as illustrated below. 3.Turn on power. 4.Repeatedly press TV/Video button on your TV to select the input from the DVD player. AUDIO IN/OUT VIDEO OUT TIPS... -
Page 12: Connecting To A Stereo Component
Connecting to a Stereo Component By connecting the digital output (SPDIF) on the DVD player through a coaxial cable (optional accessory) to a Dolby Digital/DTS amplifier or processor, you can enjoy full 5.1 channel surround sound. Follow these steps for making the connection. 1.Turn off both DVD player and your stereo system. -
Page 13: Using Usb Port
Using USB Port The player accepts most USB devices such as MP3, DSC, USB- drive, Digital Camcorder etc. The USB version 1.1/2.0. Pluging a USB device 1.Plug in the USB device to the USB port on the player. 2.Repeatedly press DVD/USB to select USB mode. Removing a USB device You can remove the USB device anytime even it is playing. -
Page 14: Using The Ac Adaptor
Using the AC Adaptor This portable DVD player can be powered by AC through the supplied switching power AC adaptor. It can also use the supplied battery pack to power. When the AC adaptor is connected to the unit and powered, the unit will be automatically and electrically disconnected from the battery pack and powered by the AC power. -
Page 15: Using The Battery Pack
Using the Battery Pack Installing the battery pack <1>.Align and insert the battery <2>.Slide the battery pack to the pack into the corresponding slots on the back of the unit. Charging the battery pack 1.Attach the battery pack to the Player. 2.Use the AC adapter to charge the battery pack. -
Page 16: Cautions In Using Battery Pack
Do not expose the battery pack to water, fire, or heat. Always use the included AC adaptor when charging the battery pack. This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices. Warning! 1. -
Page 17: Installing Carrying Bag/Car Harness Kit(Optional Accessory)
Installing Carrying Bag/Car Harness Kit(Optional Accessory) You can install the Carrying case/Car harness kit to a car seat to enjoy the movie in the car. Following these steps: Unzip the carrying bag and flip open the top cover. Adjust the length of the two hanging straps. -
Page 18: Playing A Disc
Playing a Disc Preparation for Playback 1.Make sure the Player has the power either from the battery pack or the AC adaptor. 2.Load a disc, following these steps: Open the top cover. Press the OPEN button to open the disc cover. Place a disc into the tray with the label side facing up. -
Page 19: Slow Motion
Playing a Disc Slow Motion 1.During playback, repeatedly press SLOW to play at 1/2, 1/4, 1/8, 1/16, 1/32 speeds. 2.To resume normal playback, press You can only perform slow motion play in the forward direction. Repeat Playback You can play a chapter, a track, a title, a file or the entire disc repeatedly. -
Page 20: Playing A Disc
Playing a Disc Mute Press MUTE to silence the audio, press MUTE again to restore Menu/PBC During DVD playback, press MENU/PBC to return to the disc's Start Menu. If the disc does not have the Start Menu, or discs that refuse MENU function, appears. -
Page 21: Playing Mp3 And Regular Audio Cd
Playing Mp3 and Regular Audio CD Valid MP3 CD Your MP3 files should be ISO 9660 or JOLIET format. Play In most cases, when a MP3 or audio disc is placed into the player, the first song file of the first folder plays. In other cases, the file manager appears. -
Page 22: Playing Picture Cd
Playing Picture CD Valid Picture The player can play both Kodak Picture CD that you order from photo processing store, and home-made CD by burning JPEG files onto a CD-R or CD-RW disc. Play In most cases, after the disc is placed into the player, the first file will be shown. -
Page 23: Displaying And Sorting Files
Displaying and Sorting Files Displaying files When a disc or USB device contains multiple file types, you can select and display only certain file types. 1. Press STOP and select FILE TYPE and press " confirm. 2. Select the file type you do not want to display and repeatedly press "... -
Page 24: Setting Language For Osd, Menu, Audio, Subtitle, External Subtitle
Setting Language for OSD, Menu, Audio, Subtitle, External Subtitle 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Language Setup and its sub-menu. 3. Press to confirm your selection. 4. Press SETUP to exit. Changing OSD language Language Setup Menu... -
Page 25: Setting Screen For Display Format, Screen Saver, Tv System
Setting Screen for Display Format, Screen Saver, TV System 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Screen Setup and its sub-menu. 3. Press to confirm your selection. 4. Press SETUP to exit. Adjusting the Aspect Ratio 4:3 LB (Letter Box) Displays the content of the DVD title in 16:9 aspect ratio. -
Page 26: Setting Audio For Downmix
Setting Audio for Downmix 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Audio Setup and its sub-menu. 3. Press to confirm your selection. 4. Press SETUP to exit. Changing Digital Out Audio Setup Digital Out Downmix :Select... -
Page 27: Setting Parental Control, Password, Displaying Divx Registration Number
Setting Parental Control, Password, Displaying DivX Registration Number 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Custom Setup and its sub-menu. 3. Press to confirm your selection. 4. Press SETUP to exit. Setting parental control Custom Setup Parental Ctrl... -
Page 28: Setting Camera Angle, Returning To Default Setting
Setting Camera Angle, Returning to Default Setting 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Custom Setup and its sub-menu. 3. Press to confirm your selection. 4. Press SETUP to exit. Turning on/off camera angle When ON is selected, the player will display multi-angle mark on the screen if the disc has multi-angle shot. -
Page 29: Adjusting Lcd Screen
Adjusting LCD Screen You can adjust screen"s Brightness, Contrast, Color, as well as to reverse the screen image 180 degrees. Adjusting Brightness, Contrast and Color 1.Press and hold MENU/PBC/LCD adj. for a few seconds to display the adjustment menu. 2.Use to select the Brightness ( Choosing the aspect ratio 1. -
Page 30: Troubleshooting
Troubleshooting If your DVD player dose not seem to be functioning properly, check the items below before you contact a service center. Symptom Power does not turn on or suddenly turns off Battery pack is in place but the power does not turn on or suddenly turns off Remote control does not work Disc does not play... -
Page 31: Troubleshooting
Troubleshooting Symptom While in the input mode, no picture is output from the external component to the DVD player Battery pack won't charge Charging LED indicator does not light On charging the depleted battery, the red and green LED charging indicators quickly light, indicating battery is fully charged, but in fact it is not... -
Page 32: Specifications
Specifications Power Requirements General Power Consumption Weight Dimensions Operating T emperature Range Readable DVD, DVD-R, DVD+R, DVD-RW,DVD+RW, VCD, CD, HDCD, Picture CD, CD-R, CD-RW, MPEG4, MP3, WMA, DivX Video . Disc Readable USB DSC, Camcorder, U-drive, MP3 player, and other USB storage devices Video Output Composite Video Audio Output... -
Page 33: Customer Support And Warranty
AVAYON retains the right to assess all warranty claims and to determine if damages are covered by this warranty. In case of a claim that is not covered by the warranty, you will be contacted to determine if AVAYON should repair the damage for a fee or if the player should be returned to you as received by the service center. -
Page 34: Customer Support And Warranty (Cont'd)
During the Warranty Period, AVAYON will, at its option and sole discretion, repair or replace defective parts, including replacement of the entire Player. You will be required to ship the player to the service center indicated at the time you contact AVAYON customer service for warranty support.
