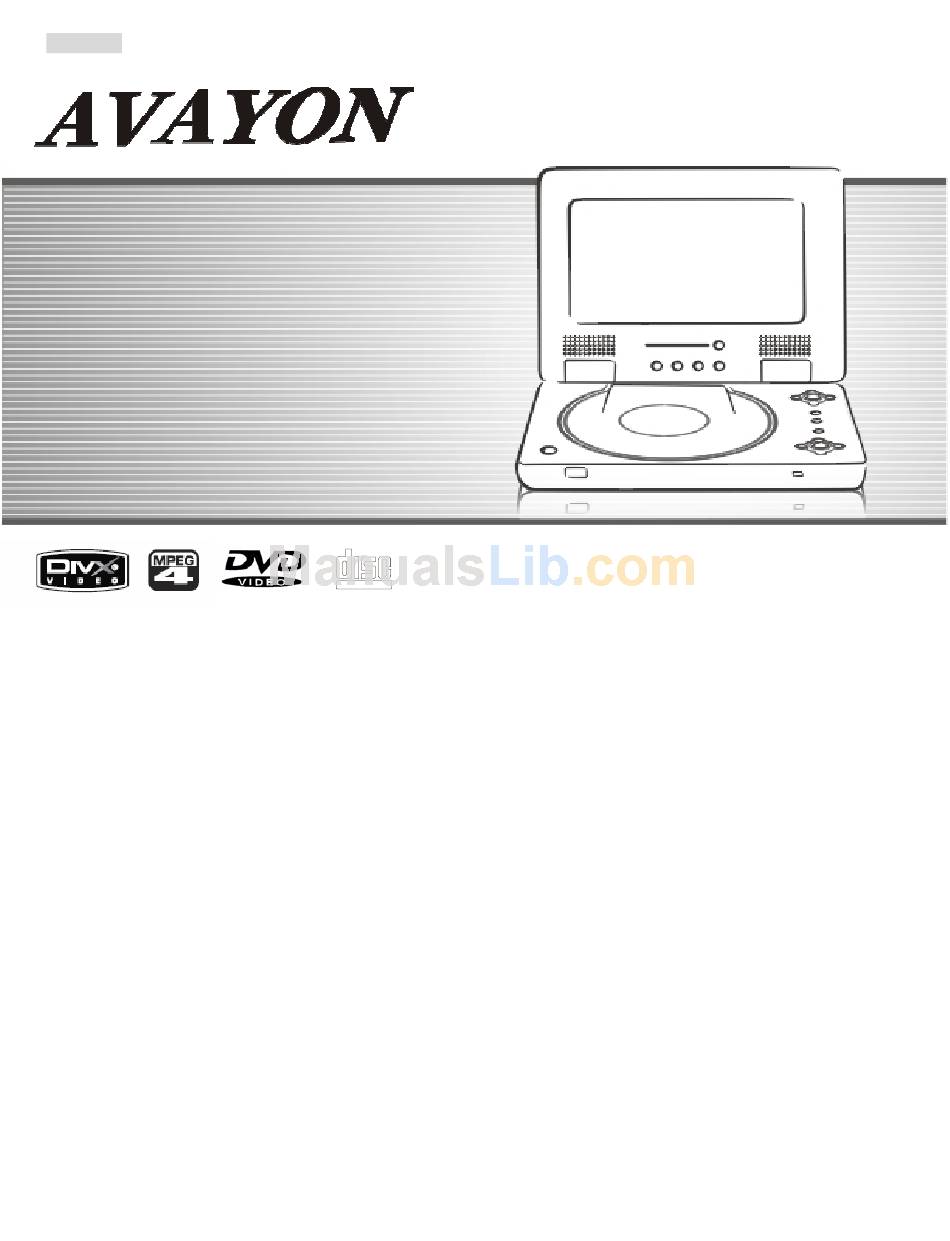

- Page 1 ENGLISH PORTABLE DivX MPEG-4 DVD PLAYER Model DXP-7P OWNER`S MANUAL Please read this manual before operating. COMPACT DIGITAL AUDIO...
-
Page 2: Table Of Contents
Safety Information...……………………...3 DivX Certification…………………………………………………………………………………………………………………………………………………..4 Remote Control …...………………………………….……...5 Description...……………………...6 Using the Remote Control...…………………...7 Connecting Earphones to the DVD Player...…………………...8 Connecting to an External Component ...…………………...9 Connecting to a TV...……………………...0 Connecting to a Stereo Component...…………………...11 Using the AC Adaptor...……………………...12 Using the Battery Pack...……………………...13 Cautions in Using Battery Pack...…………………...14... -
Page 3: Safety Information
Place the DVD Player on a firm, flat surface. Keep the DVD Player away from domestic heating equipment and direct sunlight. When placing the DVD Player in a cabinet, allow about one inch of space all around the DVD Player for ventilation. SAFETY WARNING CLASS 1 LASER PRODUCT / KLASSE 1 LASER PRODUKT / LUOKAN 1 LASER LAITE / KLASS 1 LASER APPARAT / PRODUCTO LASER CLASE. -
Page 4: Divx Certification
DivX Certification By displaying the DivX® logo, we are demonstrating that AVAYON products have been tested and certified by DivXNetworks, the creators of DivX® video technology, and are capable of playing all versions of DivX® video content. DivX Certified ensures that the DivX® content you attain and create can be played on your AVAYON DivX®... -
Page 5: Remote Control
Remote Control Remote Control 1. MENU/PBC Button Brings up the disc menu. 2. L/R Button Selects left, right and stereo sound tracks. 3. P/N Button Selects PAL/NTSC/AUTO TV systems. 4. TITLE Button 5. SUBTITLE Button Selects the subtitle's language. 6. Number Buttons (0,1,...,9) 7. -
Page 6: Description
Description Front View 1. (16:9/4:3)/MODE/DOWN/UP 8. CURSOR(UP/DOWN/LEFT/ RIGHT), ( 2. OPEN 9. MENU/PBC ■ 3. DISC COVER 10. STOP 4. LCD 11. PAUSE/STEP ▐▐ ► 5. REVERSE DISPLAY 12. PLAYBACK BUTTONS PLAY 6. SPEAKER ► FAST REVERSE 7. LCD on/off switch FAST FORWARD SKIP-FORWARD SKIP-PREVIOUS... -
Page 7: Using The Remote Control
( + ) facing up as marked. 4. Replace the battery tray by pushing it until it clicks into place. Using the remote control Point the remote control directly at the remote sensor on the front of the DVD Player. -
Page 8: Connecting Earphones To The Dvd Player
Connecting Earphones to the DVD Player You can attach an earphone with a stereo mini-jack plug to the phone jack ( using the VOLUME control dial. You can also connect a second earphone to the AUDIO OUT jack, but its volume cannot be adjusted. -
Page 9: Connecting To An External Component
Connecting to an External Component You can enjoy video from VCR or camcorder on your DVD player. 1. Turn off DVD player, VCR and other components. 2. Connect the audio and video cables as illustrated below. 3. Slide INPUT/OUTPUT to INPUT. -
Page 10: Connecting To A Tv
2. Connect the audio and video cables as illustrated. 3. Slide INPUT/OUTPUT to OUTPUT. 4. Turn on DVD player and TV. 5. Select corresponding Video input which is connected to DVD player. 6. Press PLAY on DVD player. Audio (black) TIPS If you wish to view video on your TV only, close the display panel of your Player. -
Page 11: Connecting To A Stereo Component
Connecting to a Stereo Component By connecting the digital output (SPDIF) on the DVD player through a coaxial cable (optional accessory) to a Dolby Digital/DTS amplifier or processor, you can enjoy full 5.1 channel surround sound. Follow these steps for making the connection. -
Page 12: Using The Ac Adaptor
Using the AC Adaptor This portable DVD player can be powered by AC through the supplied switching power AC adaptor. It can also use the supplied battery pack to power. When the AC adaptor is connected to the unit and powered, the unit will be automatically powered by the AC power. -
Page 13: Using The Battery Pack
If the battery power is low, the red LED blinks. Removing the battery pack 1. Slide down the latch. left until it clicks into place. To DC12V IN on the DVD player 2. Slide the battery pack to the right, and remove. AC adaptor... -
Page 14: Cautions In Using Battery Pack
Do not expose the battery pack to water, fire, or heat. Always use the included AC adaptor when charging the battery pack. This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices Warning! Do not drop or subject to strong vibration. -
Page 15: Installing Carrying Bag/Car Harness Kit (Optional Accessory)
Installing Carrying Bag/Car Harness Kit (Optional Accessory) You can install the Carry case/Car Harness kit to a car seat to enjoy the movie in the car. Following these steps. 2. Fold the top and bottom 1. Unzip and open the bag. covers backwards. -
Page 16: Playing A Disc
Playing a Disc Turning the player ON /OFF To Turn On The Player 1. Slide POWER on the Player to ON, this will put the Player on standby mode. 2. Press ► on the Player to turn on the power. 3. - Page 17 Playing a Disc (cont’d) Slow Motion You can only perform slow motion play in the forward direction. 1. During playback, repeatedly press SLOW to play at slower speeds. 2. To resume normal playback, press ► . Forward / reverse speed: 1/2, 1/3, 1/4, 1/5, 1/7. Frame-by-Frame Playback You can only perform step play in the forward direction.
- Page 18 Playing a Disc (cont’d) Mark (Bookmark) The Mark function lets you select parts of a DVD so that you can quickly find the section at a later time. Follow these steps to set up marker playback: 1. During playback, press MARK on the remote control. 2.
- Page 19 Playing a Disc (cont’d) GOTO You can go directly to a desired chapter and play, or play at a desired point of time. Follow these steps: To play a specific chapter: 1. Press GOTO, use ◄► to select title (TT) and chapter (CH) and enter the desired number. 2.
- Page 20 Playing a Disc (cont’d) MUTE Repeatedly press MUTE until "MUTE" appears on the display to silence the audio. Press MUTE again to turn on audio. MENU/PBC Press MENU/PBC to return to the disc's Start Menu if it has the Start menu, if not, "INVALID KEY" appears. Use "TITLE" to return to the beginning of the disc if there is no Start Menu.
-
Page 21: Playing A Disc
Playing a Disc (cont’d) TITLE Press TITLE, it takes you to the very beginning of the title and play, or to the MENU if it has title menu. DISPLAY Repeatedly press DISPLAY during playback to display various playback information such as current title, chapter, track elapsed time, languages etc. -
Page 22: Playing An Mp3 Or Regular Audio Cd
Playing an MP3 or Regular Audio CD Valid MP3 CD and CD-R/RW The MP3 files should be ISO9660 or Joliet format. Use "mp3" as the file extension. Play In most cases, when a MP3 or CD is placed into the player, the first song file of the first folder plays. In other cases, the file manger appears. -
Page 23: Playing A Picture Cd
Playing a Picture CD Valid Picture The player can play both Kodak Picture CD that you order from photo processing store, and home-made CD by burning JPEG files onto a CD-R or CD-RW disc. Play In most cases, after the disc is placed into the player, the first file will be shown. In other cases, the file manger appears. -
Page 24: Setting Screen And Audio
Setting Screen and Audio 1. Press SETUP on the remote control. 2. Use the direction keys (▲▼◄► ) to select Screen Setup and its sub-menu. 3. Press ENTER or SETUP to confirm and exit. Adjusting the Aspect Ratio 4:3 LB (Letter Box) Displays the content of the DVD title in 16:9 aspect ratio. -
Page 25: Setting Parental Control, Password, Camera Angle
Setting Parental Control, Password, Camera Angle 1. Press SETUP on the remote control. 2. Use the direction keys ( ▲▼◄► ) to select Custom Setup and its sub-menu. 3. Press ENTER or SETUP to confirm and exit. Setting parental control Changing password 1. -
Page 26: Setting System For Tv System, Screen Saver, Tv Type (4:3/16:9), Password, Rating, Default, Divx(R) Vod
Setting System for TV System, Screen Saver, TV type (4:3/16:9), Password, Rating, Default, DivX(R) VOD 1. Press SETUP on the remote control. 2. Use the direction keys ( ▲▼◄► ) to select SYSTEM SETUP and its sub-menu. 3. Press ENTER to confirm your selection. 4. - Page 27 Setting System for TV System, Screen Saver, TV Type (4:3/16:9), Password, Rating, Default, DivX(R) VOD 1. Press SETUP on the remote control. 2. Use the direction keys(▲▼◄► ) to select SYSTEM SETUP and its sub-menu. 3. Press ENTER to confirm your selection. 4.
-
Page 28: Setting Language For Osd, Voice, Subtitle, Menu
Setting Language for OSD, Voice, Subtitle, Menu Although this Player supports a list of different languages for OSD, subtitle and voice, the disc must have the specific language(s) built-in in order to effect the multi-language function of this Player. 1 .Press SETUP on the remote control. 2 .Use the direction keys (▲▼◄►... -
Page 29: Setting Audio Output
Setting Audio Output 1. Press SETUP on the remote control. 2. Use the direction keys (▲▼◄► ) to select Audio Setup and its sub-menu. 3. Press ENTER or SETUP to confirm and exit. Changing AUDIO output Note: SPDIF/OFF: select this when you do not want to have digital audio signal output. -
Page 30: Setting Video For Brightness, Contrast, Hue, Saturation
Setting Video for Brightness, Contrast, Hue, Saturation 1. Press SETUP on the remote control. 2. Use the direction keys (▲▼◄► ) to select Video Setup and its sub-menu. 3. Press ENTER or SETUP to confirm and exit. Adjusting brightness Adjusting contrast Adjusting hue Adjusting saturation... -
Page 31: Adjusting The Lcd Screen
Adjusting LCD Screen Following these steps to adjust the LCD quality during playback or while paused, 1. Repeatedly press MODE on the screen panel to select the parameters listed in the menu. You can change BRIGHTNESS, CONTRAST, SHARPNESS, COLOR and TINT. 2. -
Page 32: Troubleshooting
Troubleshooting If your DVD player does not seem to be functioning properly, check the items below before you contact a service center. Symptom Power does not turn on or suddenly turns off Battery pack is in place but the power does not turn on... - Page 33 Check Check that the video or audio cable is securely connected. Check that the DVD player is in the INPUT mode and in the DVD mode. Check that the DVD player is turned on. You cannot charge the battery pack with the player turned off.
-
Page 34: Specifications
Specifications Power Requirements General Power Consumption Weight Dimensions Operating Temperature Range DVD, DVD-R, DVD+R, DVD-RW,DVD+RW, VCD,SVCD,DVCD, MP3,PICTURE CD, Readable Disc CD, CD-G, HDCD, CD-R, CD-RW, MPEG4, DivX Video, MPEG4, DivX Video Composite Video Video Output 2 Channel Audio Output Frequency Response S/N Ratio Dynamic Range Battery Specifications... -
Page 35: Customer Support And Warranty
AVAYON retains the right to assess all warranty claims and to determine if damages are covered by this warranty. In case of a claim that is not covered by the warranty, you will be contacted to determine if AVAYON should repair the damage for a fee or if the player should be returned to you as received by the service center. - Page 36 During the Warranty Period, AVAYON will, at its option and sole discretion, repair or replace defective parts, including replacement of the entire Player. You will be required to ship the player to the service center indicated at the time you contact AVAYON customer service for warranty support.
