Vancare VERA-LIFT II B350 Maintenance Manual

Hide thumbs Also See for VERA-LIFT II B350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
VANCARE,Inc.
1515 First Street
Aurora, Nebraska 68818
VERA-LIFT II™
MODELS B350 & B600
MAINTENANCE
MANUAL
ALL VANCARE PRODUCTS
ARE MADE IN THE U.S.A.
Phone:
(800) 694-4525
Fax:
(402) 694-3994
Email: pvancare@hamilton.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERA-LIFT II B350 and is the answer not in the manual?

Questions and answers

Related Manuals for Vancare VERA-LIFT II B350

Summary of Contents for Vancare VERA-LIFT II B350

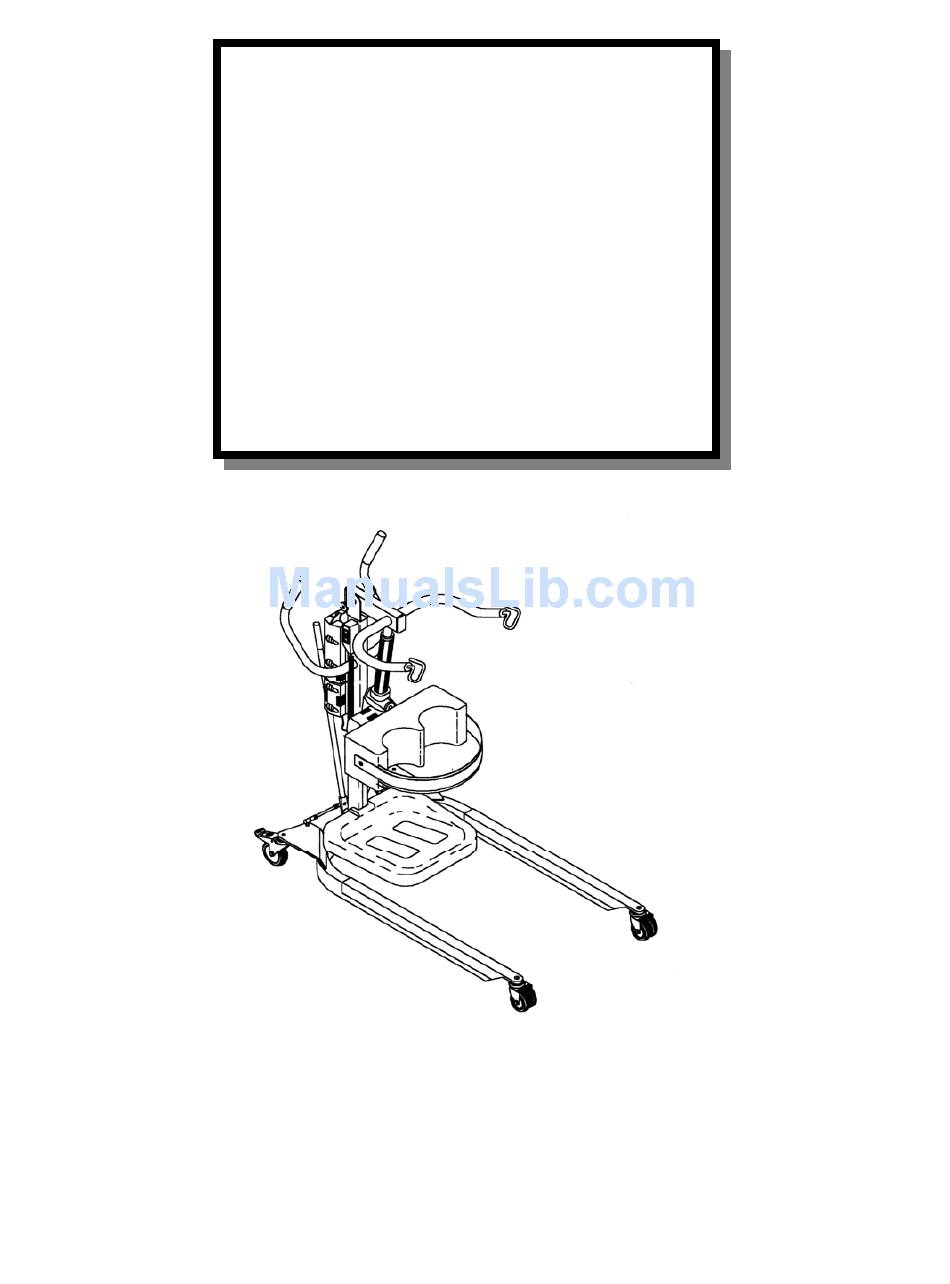

  • Page 1 VERA-LIFT II™ MODELS B350 & B600 MAINTENANCE MANUAL ALL VANCARE PRODUCTS ARE MADE IN THE U.S.A. VANCARE,Inc. Phone: (800) 694-4525 1515 First Street Fax: (402) 694-3994 Aurora, Nebraska 68818 Email: pvancare@hamilton.net...
  • Page 2 VERA-LIFT II B350 & VERA-LIFT II B600 MAINTENANCE MANUAL TABLE OF CONTENTS VERA-LIFT II DIAGRAM OF PARTS AND DISCRIPTIONS Vera-Lift II diagram, part numbers and descriptions Page 3-4 Vera-Lift II w/scale diagram, part numbers and descriptions Page 5-6 Vera-Lift II 600 diagram, part numbers and descriptions...
  • Page 3 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 4 VERA II (PURPLE) REF # PART # DESCRIPTION MFG-9-523190 CASTER 3" NON-LOCK MFG-9-238120 3/8-16X1.25 FH-SH/SS MFG-9-293810 3/8 EXT LOCK WASHER MFG-9-263816 3/8-16 HEX NUT-ZN MFG-7-252052 LEG/VERA 2 RIGHT PURPLE MFG-7-252051 LEG/VERA 2 LEFT PURPLE MFG-5-900105 VERA 2 LEG PROTECTOR - CLEAR MFG-6-582601 TIE ROD-2 LEFT/BEND MFG-9-583600...
  • Page 5 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 6 VERA II W/SCALE (PURPLE) REF # PART # DESCRIPTION MFG-9-523190 CASTER 3" NON-LOCK MFG-9-238120 3/8-16X1.25 FH-SH/SS MFG-9-293810 3/8 EXT LOCK WASHER MFG-9-263816 3/8-16 HEX NUT-ZN MFG-7-252052 LEG/VERA 2 RIGHT PURPLE MFG-7-252051 LEG/VERA 2 LEFT PURPLE MFG-5-900105 VERA 2 LEG PROTECTOR - CLEAR MFG-7-252177 V-2/SCALE FOOTSTP FRAME PURPLE MFG-5-900070...
  • Page 7 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 8 VERA II 600 (PURPLE) Ref # Component ID Component Description MFG-9-523190 CASTER 3" NON-LOCK MFG-9-238120 3/8-16X1.25 FH-SH/SS MFG-9-293810 3/8 EXT LOCK WASHER MFG-9-263816 3/8-16 HEX NUT-ZN MFG-7-600001 SERIES II 600 LEG LEFT PURPLE MFG-4-900616 600 LEG PROTECTOR - CLEAR LEFT MFG-7-600002 SERIES II 600 LEG RIGHT PURPLE MFG-4-900617...
  • Page 9 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 10 VERA II 600 W/SCALE (PURPLE) REF # PART # DECSCRIPTION MFG-9-523190 CASTER 3" NON-LOCK MFG-9-238120 3/8-16X1.25 FH-SH/SS MFG-9-293810 3/8 EXT LOCK WASHER MFG-9-263816 3/8-16 HEX NUT-ZN MFG-7-600001 SERIES II 600 LEG LEFT PURPLE MFG-4-900616 600 LEG PROTECTOR - CLEAR LEFT MFG-7-600002 SERIES II 600 LEG RIGHT PURPLE MFG-4-900617...

  • Page 11: Table Of Contents

    Technical Instructions MOBILETTE MCU Mobile control unit for DC linear actuators Contents 1 General ......................2 1.1 Using the Technical Instructions .

  • Page 12: General

    Technical instructions Control unit Mobilette General 1.1 Using the Technical Instructions The Technical Instructions are intended for designers who use the Mobilette in their products, and for engineers who work with the Mobilette. The Technical Instructions contain all relevant information on this Magnetic product. We reserve the right to make changes which are in the interest of technical progress.

  • Page 13: Ambient Conditions

    Technical instructions Control unit Mobilette Installation and startup 3.1 Scope of delivery The Mobilette is only suitable for indoor use. Do not expose the Mobilette to the effects of weather. MCU1 MCU4 / MCU8 Fig. 1 – Scope of delivery and connections The Mobilette consists of: ZBA battery unit MCU control unit (installed on system carrier ?)

  • Page 14: Installing The Control Unit

    Technical instructions Control unit Mobilette 3.2 Installing the control unit Ensure that the control unit is free of mechanical tension and does not vibrate. Fig.2 – Mounting the control unit Mount the control unit in the 3 holes provided on the system carrier (Fig. 2). The MOBILETTE MCU1 can be mounted in the following positions (Fig.

  • Page 15: Connecting The Actuator And The Control Device

    Technical instructions Control unit Mobilette Fig. 4 – Inserting the battery pack 3.4 Connecting the actuator and the control device All cables must be secured so that no forces act on the control unit plugs. Plugs which are poorly aligned may become loose and dam- age the control unit.

  • Page 16: Startup

    Technical instructions Control unit Mobilette Connecting the actuator(s) Insert the actuator plug into the corresponding socket on the control unit (Fig. 5). Lightly lubricate the plug sealing rings with Then proceed as follows: Klübersynth VR-252, Magnetic order No. R50014. Insert the plug (the sealing rings must not be visible) The use of other lubricants can damage seal- Ensure that the groove on the plug is aligned with the mark on the control unit.

  • Page 17: Instructions For Use

    Technical instructions Control unit Mobilette Instructions for use 4.1 Controlling an actuator The actuator is controlled directly using buttons on the control device: Only use the Mobilette with charged batter- Button The actuator extends. ies. Operation with empty batteries is not Button The actuator retracts.

  • Page 18: Emergency Lowering" (Option)

    Technical instructions Control unit Mobilette 4.3 "Emergency Lowering" (option) In contrast to the EMERGENCY STOP button, the "Emergency Lowering" option is Operators of the MOBILETTE must be familiar intended for when faults occur. A faulty control unit can be bypassed using the with the difference between "EMERGENCY "Emergency Lowering"...

  • Page 19: Care

    Technical instructions Control unit Mobilette Battery display / deep-discharge protection To check the function of the battery display, place a discharged battery pack in the Mobilette control unit and press one of the buttons on the control device. If the battery is empty, the yellow LED will flash when a button is pressed. Now press a button on the control device until an audible signal indicates the bat- tery's deep-discharge protection.

  • Page 20: Technical Data

    Technical instructions Control unit Mobilette 5.6 Technical data See brochure No. 530D 2931. The manufacturer reserves the right to adapt technical data to reflect technical progress without prior notification. Magnetic AG, Liestal, will be pleased to provide information about current specifications, possible changes or extensions. 5.7 Liability In every case, the owner or operator of the unit shall be liable for its function if the unit has been incorrectly installed, maintained or repaired by persons who are not...

  • Page 21: Troubleshooting And Fault Elimination

    Technical instructions Control unit Mobilette 5.8 Troubleshooting Fault Cause Remedy None of the actuators The EMERGENCY STOP has Check plugs on the control are working been pressed devices and re-insert Unlock the EMERGENCY STOP button by turning it Deep-discharge protection Charge the batteries of the control unit has been activated (display flashes...
  • Page 22 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 23 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 24 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 25 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 26 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 27 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 28 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 29 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 30 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 31 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 32 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 33 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 34 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 35 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 36 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 37 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 38 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 39 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 40 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 41 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 42 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 43 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 44 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 45 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 46 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 47 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 48 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 49 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 50 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 51 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 52 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 53 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 54 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 55 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 56 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 57 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 58 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 59 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 60 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 61 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 62 MONTHLY VERA-LIFT II™ INSPECTION CHECKLIST INSTRUCTIONS: Use one page for each VERA-LIFT II™. Check each blank as that item is inspected. Note date inspected, initials of maintenance staff member who performed inspection and repairs or adjustments made in the “COMMENTS” column. Serial Number of Lift Year COMMENTS...
  • Page 63 February 2008 For your nearest Distributor, call 1-800-694-4525...
  • Page 64 MONTHLY VERA-LIFT™ BACK BELT AND SITTING SLING INSPECTION CHECKLIST INSTRUCTIONS: All back belts and sitting slings in the facility must be checked monthly. Back belts and sitting slings that are damaged or excessively worn must be removed from service and replaced with undamaged back belts or sitting slings. Check each blank as that item is inspected.
  • Page 65 February 2008 For your nearest Distributor, call 1-800-694-4525...
