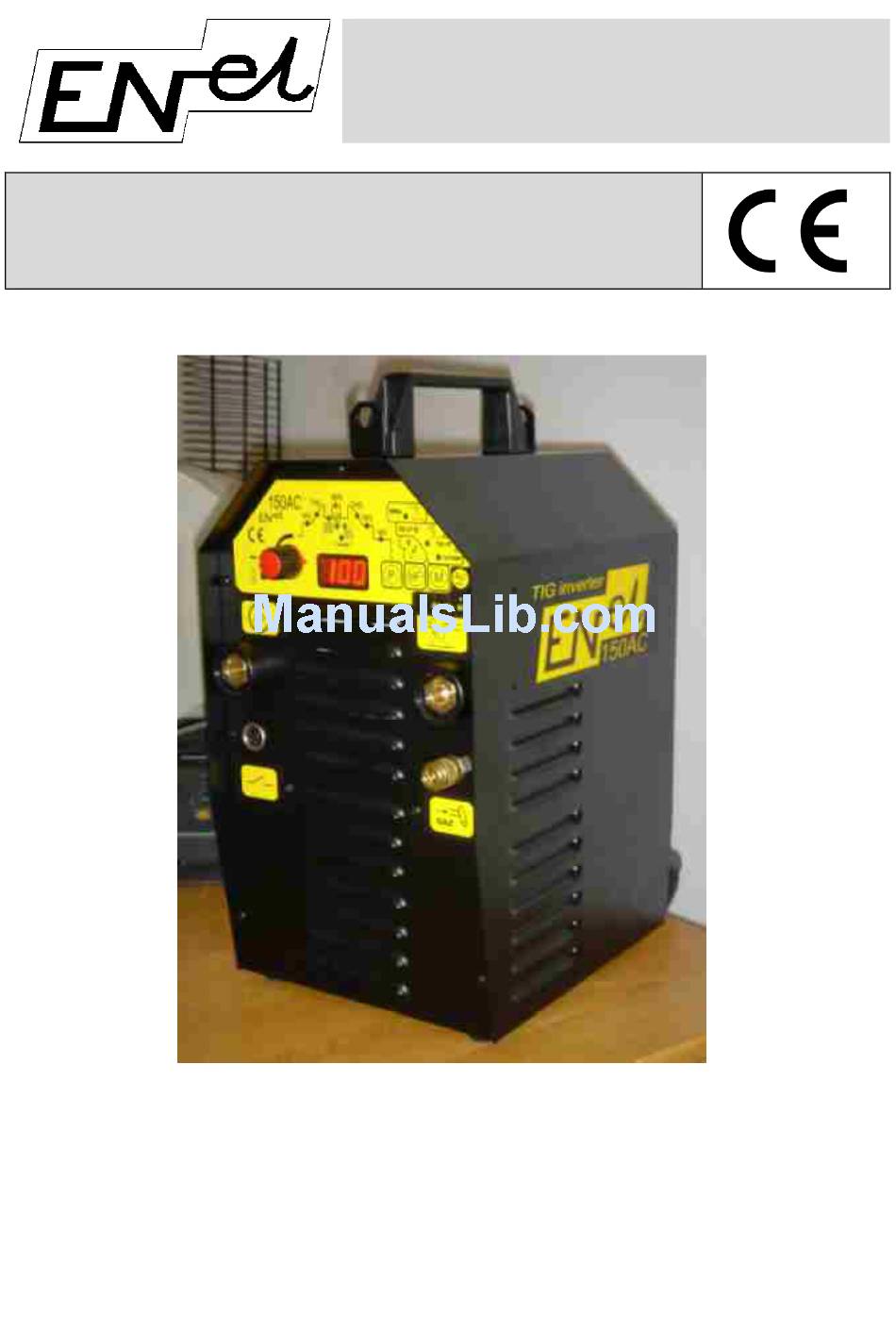

- Page 1 ENel - WROCŁAW Sp. z o. o. DESIGN AND MANUFACTURE OF POWER ELECTRONIC DEVICES ENEL150AC INVERTER WELDING MACHINE USER MANUAL DEALER:...
- Page 2 1. INTRODUCTION This manual contains information that will allow to take full advantage of ENEL150AC welding machine operation values and enable its safe use. All users are encouraged to read the user manual. 2. APPLICATION ENEL150AC welding machine is a modern direct and alternating current source designed mainly for TIG welding and with coated electrodes (MMA) of all types (ER-, EA-, EB-, ES-, ...) with diameters from ∅1.6 to ∅3.2.
- Page 3 Figure1 The welder is equipped with a digital display (1), indicating the values of set parameters, a knob to adjust parameter values(2), operating mode switch (5), parameters switch (3), ignition mode switch (4), selector of direct current or alternating current polarity ( 6), and indicators. There are four operation modes available to select with the button (5) (Fig.
- Page 4 There are possible two operation modes: a) with an automatic open circuit voltage reduction to the safe value of approx. 12V. This mode is automatically set when the power is turned on and after changing from another mode to MMA mode - it is signalled by continuous illumination of the LED indicating welding current Is.
- Page 5 • Tg[s] - time of gas flow after the arc extinction in seconds, adjustable in the range 1-25s with the resolution of 1s TH=20 % TH=80 % Ib=50 % Tp=1/fp Ib=10 % Tp=1/fp Examples of pulsating current signals for different settings of fp, Ib, TH You can select the method of ignition using HF button (4): CONTACT IGNITION - LAMP (9) IS OFF The welding process is initiated by pressing a control button on the grip.
- Page 6 3) TIG 4T welding with direct current (DC-) (4 Step trigger) - the red light should indicate The following parameters can be set within given ranges: • Is[A] - welding current in amperes adjustable in the range of 5-150A with a resolution of 1A •...
- Page 7 pressed!) you can ignite the arc by touching the workpiece and slightly lifting an electrode (the arc ignition occurs at the moment of lifting an electrode). NON-CONTACT IGNITION - LAMP (9) IS ON The welding process is initiated by pressing a control button on the grip. When the button is pressed the gas valve is opened.
- Page 8 The following parameters can be set within given ranges: • Is[A] - welding current in amperes adjustable in the range of 5-150A with a resolution of 1A • Tn[s] - welding current rise time in seconds adjustable in the range 0.1-5s with a resolution of 0.1s •...
- Page 9 6) TIG 2T and 4T welding with alternating current (AC) - the green light should indicate AC welding is possible only for TIG welding. Select AC. Using the knob (2) (Fig. 1) select the diameter of the electrode E1.6, E2.4 or E3.2. The following parameters can be set for AC within given ranges: •...
- Page 10 Entering three times of incorrect code disables the welding machine - unlocking is possible only in the ENEL service center. To enable the security function, follow these steps: ⇒...
-
Page 11: Technical Specifications
4. TECHNICAL SPECIFICATIONS Table 1 Parameter Unit Value Power supply (single-phase) 230V Frequency 50/60 Current adjustment range 5-130 Welding current: P30% P60% P100% Input current: P30% 33.0 P60% 25.0 P100% 21.0 Output Power: P30% P60% P100% Current adjustment range 5-150 Welding current: P40% P60%... -
Page 12: Optional Accessory
5. OPTIONAL ACCESSORY (Can be supplied with rectifier for an extra fee) 1. 3m welding cable 1x25mm terminated with an electrode holder K-160. 2. 3m welding cable 1x25mm terminated with an electric clamp ZBK35. 3. Welding cable with a DUALTIG 26/4 welding torch with dual control button of TRAFIMET. - Page 13 • Connect the earth cable with an electric clamp to the earth terminal (1) Fig. 2 • Connect the cable with electrode holder to the terminal (2) Fig. 2 Using button (6) (Fig. 1) select the polarity of an electrode cable (DC- or DC+) in accordance with the instructions given on the electrode packaging.
- Page 14 continuously) or without automatic open circuit voltage reduction (the LED begins to blink). 5) Fit an electrode in the electrode holder. 6) After the welding is completed, the rectifier should be left connected to the mains for some time (approx. 3 minutes). This is recommended for cooling down the heated components.
- Page 15 SPARK IGNITION - LAMP (9) IS ON The welding process is initiated by pressing a control button on the grip. When the button is pressed the gas valve is opened. Releasing the button starts the ionizer - spark-over between an electrode and a workpiece should initiate ignition of the arc.
-
Page 16: Maintenance
7. MAINTENANCE CAUTION: Before performing any inspection and maintenance unplug the power cord from the mains. 7.1. ONGOING MAINTENANCE 1) Check the condition of the power cord and insulation of welding cables. Any damages should be fixed immediately. 2) Ensure that welding cables connections, the electric clamp and isolated jaws of the welding holder are operational. -
Page 17: Electric Shock
pressure regulator designed for argon. Do not use gas cylinders of which content is uncertain. The gas cylinder should always be secured in an upright position to a wall or a specially designed cylinder rack. After welding always turn off the cylinder valve. - Page 18 Figure 3 General electric diagram...
-
Page 19: Spare Parts List
10. SPARE PARTS LIST Specification of main components is given in Table 2 Table 2 Item Description Pieces Handle Strap catch Thermal switch 70° C Thermal switch 90° C Bridge Rectifier Power transformer AC transformer 220/18V High Voltage transformer Control circuit IGBT transistor Capacitor 470 F/400V Electronic kit uP16v.2...
