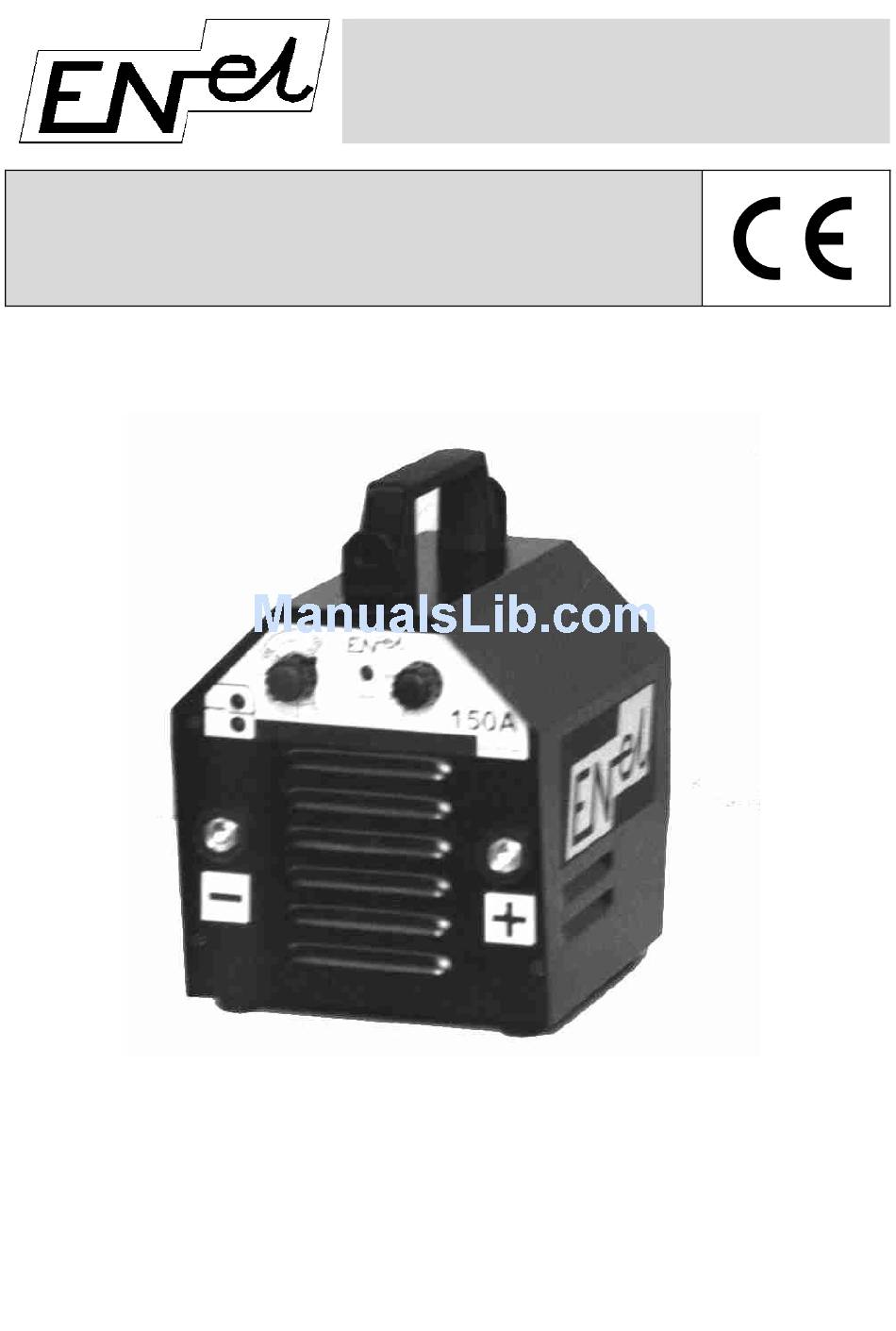

  • Page 1 ENel - WROCŁAW Sp. z o. o. DESIGN AND MANUFACTURE OF POWER ELECTRONIC DEVICES ENEL150A INVERTER WELDING MASCHINE USER MANUAL DEALER:...
  • Page 2 TIG welding (after applying an appropriate torch). In this case, the welding current set with the knob (1) (Fig. 1) should be read on the outer scale (range 5-150A). The rectifier is provided with the features: •...

  • Page 3: Technical Specifications

    Current Range - Welding 5-150 Current Range - Charging 1-30 Input current: P30% P60% P100% Output Power: P30% P60% P100% Power factor (150A) Open Circuit Voltage Power cable cross-section 3x2.5 Case Enclosure Class IP22 Insulation class Dimensions: Length Width Height Weight...
  • Page 4 Figure 1 Front panel 1. Welding Current Adjustment Knob 2. Operating Mode Switch 3. Power indicator (green) 4. Overload indicator (yellow) 5. Welder Output Socket - negative pole 6. Welder Output Socket - positive pole 7. Battery Charge indicator...

  • Page 5: Optional Accessory

    Figure 2 Rear panel 1. Power Switch 2. Power cord 5. OPTIONAL ACCESSORY (Can be supplied with rectifier for an extra fee) 1. 3m welding cable 1x25mm terminated with electrode holder K-160. 2. 3m welding cable 1x25mm terminated with electric clamp ZBK16 3.

  • Page 6: Connection To Power Mains

    6. OPERATING INSTRUCTIONS 6.1 CONNECTION TO POWER MAINS 1. ENEL150A welder is manufactured as a protection class I device and because of a users safety should be connected only to the electrical socket provided with the protective (earth) conductor. Due to the significant current consumption (see Table 1), the electrical supply circuit should be protected with a time-delayed fuse rated at 20A or automatic circuit breaker, e.g.

  • Page 7: Tig Welding

    TIG WELDING 1) Connect the welding cable with the electric clamp (connected to the (+) terminal) to the work to be welded. 2) Fit an appropriate tungsten electrode in the TIG welding torch (connected to the (-) terminal). 3) Connect the power cord plug to the mains socket. 4) Set the power switch in the position ON (ZAŁ).

  • Page 8: Ongoing Maintenance

    7. MAINTENANCE CAUTION: Before performing any inspection and maintenance unplug the power cord from the mains. 7.1 ONGOING MAINTENANCE 1) Check the condition of the power cord and insulation of welding cables. Any damages should be fixed immediately. 2) Ensure that welding cables connections, the electric clamp and isolated jaws of the welding holder are operational.

  • Page 9: Fire, Explosion

    9. DANGERS DURING WELDING Prior to welding, authorized persons should thoroughly read this manual and strictly observe all given instructions. Non-compliance with these instructions may result in, among others, following dangerous consequences. 9.1 FIRE, EXPLOSION Observe fire regulations in force at the welding stand. Remove any flammable materials in the vicinity of the welding stand.

  • Page 10: Spare Parts List

    10. SPARE PARTS LIST Specification of main components is given in Table 2 Table 2 Item Description Pieces Handle Strap catch Thermal switch 70° C Thermal switch 90° C Bridge Rectifier Power transformer AC transformer 220/18V Switch IGBT transistor Capacitor 470 F/400V Control circuit Output socket Output choke...
