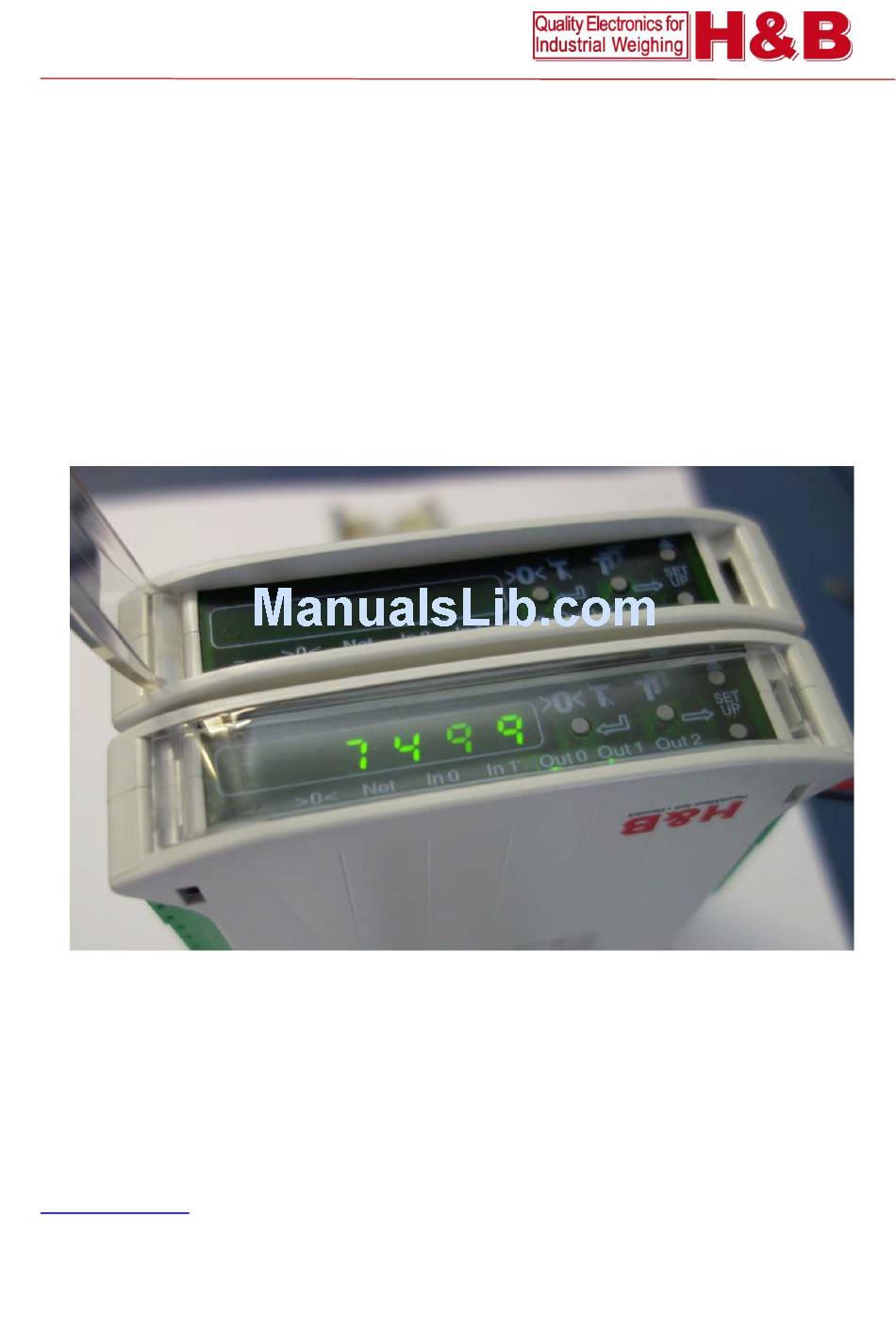

- Page 1 Load Cell Digitizing Unit Type DAD 141.1 Communication via RS 422/485 & Ethernet Port ECHNICAL ANUAL Firmware Version 141.181.v.1.10 or higher Hardware Version 141.10x.v.1.01 Document No. E 223 Rev. 2.5 EN Hauch & Bach ApS Femstykket 6 DK-3540 Lynge Denmark...
-
Page 2: Table Of Contents
Error Codes ............................23 Examples ..............................24 Example 1 – Calibration procedure using weights ................24 8.1. Example 2 – Calibration procedure using load cell’s mV/V sensitivity ..........26 8.2. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 2 of 54... - Page 3 Save the Calibration Data [ Index 0x2066 ] ................... 34 10.2.15. Save User Setup in EEPROM ......................34 10.2.16. RU Restore User Setup to DAD 141.1 ..................... 34 Motion Detection Commands – NR, NT ..................... 35 10.3. NR Set ‘No-motion’ Range 10.3.1.
- Page 4 [ Index 0x211E or 0x2400 ]..................51 10.13.7. Send Triggered Average Value automatically ................... 51 Use in “Approved” Applications ......................52 Calibration and Calibration Sequence ....................53 Updates – Firmware Download ......................54 DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 4 of 54...
-
Page 5: Safety Instructions
CONNECTIONS OR DISCONNECTIONS ARE MADE. FAILURE TO OBSERVE THESE PRECAUTIONS COULD RESULT IN DAMAGE TO OR DESTRUCTION OF THE EQUIPMENT OR BODILY HARM. CAUTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 5 of 54... -
Page 6: Declaration Of Conformity
Metrologische Aspekte nichtselbsttätiger Waagen; Deutsche Fassung EN 45501:1992 DIN EN Anhang B.3: Funktionsprüfungen unter Störeinflüssen 45501 Anhang C: Verfahren für die Prüfung der Störfestigkeit gegen hochfrequente elektromagnetische Felder. Michael Bach Managing Director DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 6 of 54... -
Page 7: Introduction And Specifications
Introduction and Specifications The all-in-one Digital Amplifier DAD 141.1 is a universal device for any weighing, filling or loss-in-weight operation and for force measurements with strain gage sensors. The DAD141 is for DIN (TS35) rail mount. To grant the quality and allow legal weighing the DAD141.1 is OIML R-76 approved (pending) and meet the MID E2 requirements to EMC. -
Page 8: Communications And Getting Started
The command set of the DAD 141.1 is based on a simple ASCII format (2 letters). This enables the user to setup the device, get results or check parameters. Example: DAD 141.1 is connected via the RS 485 port to a PC / PLC system. You want to get the identity, firmware version or net weight. -
Page 9: Getting Started Via Ethernet Interface
8.6 (chapter 7.10) via front panel or via the command NA (network address). In case you have your DAD 141.1 connected in a LAN (local area network), which offers additional WLAN (wireless local area network) access, we offer you the Smartphone App ‘AnDOP’ for OS Android. -
Page 10: Hardware And Wiring
In case of using a load cell / scale with 4 wire cable, you have to short-circuit (bridge) the pins 1 & 2 and 6 & 7. Remark: Please don’t shorten the 4 wire cable of a load cell, as the cable is part of the factory calibration (signal & temperature compensation). DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 10 of 54... -
Page 11: Terminals Power Supply
Chassis ground Depending on the grounding concept of the plant/scale, terminal 20 or 21 has to be connected to terminal 22. The power supply must be able to support about 200mA per DAD 141.1. 5.5. Terminals Serial Port RS 422/485 The RS 422/485 port can be used for communication with a PC or PLC system. -
Page 12: Logic Inputs & Outputs
5.8. Logic Inputs & Outputs The DAD 141.1 offers 2 isolated logic inputs and 3 isolated logic outputs. The 2 inputs can e.g. get the function act as the ZERO or TARE button, see chapter 10.8.1. The 3 outputs act as switches for setpoints with hysteresis, switch behavior etc. Several bases can be used like net weight, peak weight value or average value, see chapter 10.9.x. -
Page 13: Menu Structure Setup Keybord
Menu Structure Setup Keybord DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 13 of 54... -
Page 14: Setup Via Front Panel Keyboard
Use TARE button for next number Back with ZERO button Leave with: 1x TARE button back to menu X.1 2x TARE button back to menu X DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 14 of 54... -
Page 15: Menu 1 - System Zero
Max (CM) = 1 500 kg Step Size (SZ) = 0.5 kg Zero Range (ZR) of ±2 % = ± 30 kg, which is ± 60 d. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 15 of 54... -
Page 16: Menu 2 - System Span
1, 2, 5, 10, 20, 50, 100, 200, 500 Decimal point position on the display (command DP) choose one out of 0, 0.0, 0.00, 0.000, 0.0000, 0.00000 DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 16 of 54... -
Page 17: Menu 4 - Filter & Motion Detection
4.4.2 No motion time (value range from 1 to 65 535 ms) (command NT) Time span for the no motion detection where the signal has to be 'stable' DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 17 of 54... -
Page 18: Menu 5 - Analog Output
004.000 for 4mA (decimal point position is fixed). For each mode you can use the output range plus -/+ 0.1 ! Setup of a negative value via left figure/“-“ sign (left status LED). DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 18 of 54... -
Page 19: Menu 6 - Logic Inputs
13 - Input "1" stores the actual weight (Hold value) 14 - Input "1" tares the displays and deletes all other values 15 - Input "1" turn off display DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 19 of 54... -
Page 20: Menu 7 - Logic Outputs
Permitted value range is from 0 to 65 535 ms The signal has to exceed the setpoint limit continuously at least for this time period before a switch event will be initiated. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 20 of 54... -
Page 21: Menu 8 - Data Communication
Select RS 422 or RS 485 (use the UP/DOWN buttons) 422 = RS 422 Interface for single DAD 141.1 application 485 = RS 485 Interface for multiple DAD 141.1 application in a bus Set Device Address COM Port (RS 422/485) (command AD) - Set device address for multi-drop to 001 …... -
Page 22: Factory Default Via Front Panel
While Power ON the DAD 141, press the both buttons UP & DOWN simultaneously for 2 or 3 seconds for setting the device to factory default. Note: All settings will be deleted proceeding a factory default ! DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 22 of 54... -
Page 23: Error Codes
Display underload – see menu 3.1u The Zero or Tare motion limit has been exceeded. Set Zero or Tare function disallowed. Review Zero and Tare motion limits set in menu 4.4. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 23 of 54... -
Page 24: Examples
Live range is 1 500kg, step size is 0.5kg. It is assumed that the load cell system is connected to the DAD 141.1 and the power is on. The maximum and minimum display values, display increment size and decimal point position should be defined prior to carrying out the calibration (See chapter 7.5 menu 3). - Page 25 This procedure defines the under range to -200.0, which leads @ weight readings of <-200.0kg to all lower LEDs of the 6 display numbers. Press the TARE key two or three times and the DAD 141.1 will be back in weighing mode. Calibration is now completed and stored. Please switch 1x OFF/ON for new TAC value.
-
Page 26: Example 2 - Calibration Procedure Using Load Cell's Mv/V Sensitivity
Live range is 1500 kg, step size is 0.5kg. It is assumed that the load cell system is connected to the DAD 141.1 and the power is on. The maximum and minimum display values, display increment size and decimal point position should be defined prior to carrying out the calibration (See chapter 7.5 menu 3). - Page 27 This procedure defines the under range to -200.0, which leads @ weight readings of <-200.0kg to all lower LEDs of the 6 display numbers. Press the TARE key two or three times and the DAD 141.1 will be back in weighing mode. Calibration is now completed and stored. Please switch 1x OFF/ON for new TAC value.
-
Page 28: Commands - Overview
None Trigger function: Measuring Time for Averaging 0...3000 ms Network Address <aaa.bbb.ccc.ddd> e.g. 192.168.0.100 Motion detection: No-motion Range 0...65535 d Motion detection: No-motion Time Period 0...65535 ms DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 28 of 54... - Page 29 0000…0111 Open Net weight of device ‘n’ 0…255 0…255 Open Device Download a saved image file to the DAD 141.1’s EEPROM Image data string P’n’ Polarity of Setpoint ‘n’, n= 0, 1 or 2: On / Off 0 or 1...
-
Page 30: Commands Description
‘Modbus Communication’. If case of no index mentioned, the command is not available for Modbus RTU or TCP. 10.1. System Diagnosis Commands – ID, IH, IV, IS, SR, RS Use these commands you get the DAD 141.1 type, firmware version or device status. These commands are sent without parameters. 10.1.1. ID... -
Page 31: Sr Reset Dad 141.1 Firmware
Master (PC / SPS) sends Slave (DAD 141.1) responds SR This command will respond with ‘OK’ and after maximum 400 ms perform a complete reset of the DAD 141.1. It has the same functionality as power OFF and ON again. 10.1.6. RS... -
Page 32: Ds Set Display Step Size [ Index 0X2216 ]
For calibrating an input signal near the display maximum (CM) will give the best system performance. The minimum calibration load of at least 20% is recommended. Is the calibration weight smaller than 1% of display maximum (CM), the DAD 141.1 will respond with an error message (“ERR”). Factory default: 10000 = 2.000 mV/V input signal DAD 141.1 Technical Manual, Rev. -
Page 33: Zt Zero Tracking [ Index 0X2122 ]
Reset to Factory Default Settings Index 0x2066 This command puts the DAD 141.1 back to a known state. The factory default settings data will be written to the EEPROM and the TAC will be incremented by +1. Note: All calibration and setup settings will be lost by issuing this command! The user setup - stored via command SU –... -
Page 34: Az Absolute Zero Point Calibration (Ecal) [ Index 0X2202 ]
Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning CE E+00017 (example) Request: TAC counter CE17 CE 17 Restore sequence active RU Restore from EEPROM SR Activate restored user setup DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 34 of 54... -
Page 35: Motion Detection Commands - Nr, Nt
If the value of NT = 500 milliseconds, the output must not fluctuate more than NR increments within 500 milliseconds in order to be considered “stable”. Factory default: NT = 1000 [ms] DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 35 of 54... -
Page 36: Filter Setting Commands - Fm, Fl, Ur
3dB Cut-off frequency Output-rate* @300Hz (ms) (Hz) (samples/s) (dB) no filtering 1923 3847 0.25 * Output-rate = 600/2 samples/s ** Antialiasing filter 17 Hz @ 60 dB/dec DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 36 of 54... -
Page 37: Ur Update Rate And Averaging [ Index 0X2120 ]
18.75 18.75 9.38 6.25 4.69 3.75 3.13 2.68 2.34 9.38 9.38 4.69 3.13 2.34 1.88 1.56 1.34 1.17 4.69 4.69 2.34 1.56 1.17 0.94 0.78 0.67 0.59 DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 37 of 54... -
Page 38: Taring And Zeroing Commands - Sz, Rz, Zn, St, Rt, Tn, Rw, Ti
RT Tare de-activated / Gross operation The DAD 141.1 responds to the RT command with either OK or ERR. If OK is returned then the “tare active” bit in the Device Status (IS) response will be set to “0”. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015... -
Page 39: Tn Store Tare Value [ Index 0X2224 ]
10.5.6. TN Store Tare Value Index 0x2224 This command allows to store the tare value non volatile @ power off of the DAD 141.1. Permitted values are 0 (off) and 1 (on). Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning TN... -
Page 40: Output Commands - Gg, Gn, On, Gt, Gs, Gw, Ga, Gh, Gm, Rm, Go, Gv
Get Net Value of device ’n’ 10.6.3. ON This command can be used for having quick access to all net values of some DAD 141.1 in a RS 485 network without using any other commands like Open (OP) or Close (CL) Master (PC / SPS) sends Slave (DAD 141.1) responds... -
Page 41: Ga Get Triggered Average Value [ Index 0X2008 Or 0X2028 ]
The valley value is the minimum input value while your measurement. Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning GV V+000.100 Valley value: 100 d DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 41 of 54... -
Page 42: Auto-Transmit Commands - Sg, Sn, Sw, Sa, Sh, Sm, So, Sv
DAD 141.1. The data output rate will depend on the baud rate being used e.g. with a baud rate of 115200 approximately 1000 values per second can be transmitted. The output rate of DAD 141.1 is max. -
Page 43: Logic Input Functions & Status - Ai'n', In
The status response is in the form of a four digit code where 0 = false and 1 = true (inputs are active ‘high’). The least significant bit corresponding to Input 0. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 43 of 54... -
Page 44: Logic Output Commands - Io, Om, S'n', H'n', P'n', A'n', Ht
The definitions for this section may be changed due to the fact that the definitions of the logic outputs for the DAD 141.1, where the status depends on the weight value (setpoint) are to be defined. Each logic output can be assigned an independent setpoint value (S’n’) with a corresponding hysteresis/polarity action (H’n’, P’n’) and... -
Page 45: A'n' Assign Action For Setpoint 'N' [ Index 0X2068 ]
The outputs can operate as “normally closed” or “normally open”, depending of the settings H’n’ and P’n’. Examples of the swichting actions for a Setpoint value of 2 000kg Polarity = 0 [OFF]: Polarity = 1 [ON]: DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 45 of 54... -
Page 46: P'n' Polarity Of Setpoint [ Index 0X2070 ]
Default setting: HT = 0 ms. Master (PC / SPS) sends Slave (WCN-H 122.1) responds Meaning HT H+00000 Request: HT = 0 ms HT 200 Setup: HT = 200 ms DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 46 of 54... -
Page 47: Communication Setup Commands - Ad, Na, Br, Dx, Op, Cl, Td
In some half duplex applications using a PLC system, a delay of the data transmission (up to 255 milliseconds) can be helpful due to the very quick answers of the DAD 141.1. Permitted values are 0 to 255 ms. Master (PC / SPS) sends Slave (DAD 141.1) resp. -
Page 48: Analog Output - Aa, Ah, Al, Am
You can choose one out of the following analog output modes: 4 to 20mA 0 to 20mA 0 to +5V 0 to +10V -5 to +5V -10V to +10V DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 48 of 54... -
Page 49: Save Calibration And Setup - Cs, Wp, Ss, As, Gi, Pi
Downloads a HEX-INTEL formatted EEPROM image file to the target DAD 141.1 EEPROM. The image file contains all stored information except the calibration data. Attention: The target DAD 141.1 must have same firmware type and revision no. as the source DAD 141.1. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015... -
Page 50: Trigger Commands - Sd, Mt, Ga, Te, Tr, Tl, Sa
This command starts a measurement cycle. Its execution can be compared to a hardware trigger on the digital input channel 0. Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning TR Trigger event DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 50 of 54... -
Page 51: Tl Trigger Level [ Index 0X211E Or 0X2400 ]
Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning SA Auto-Transmit: triggered average value This command will start to auto-transmit the measurement value of the current trigger cycle. DAD 141.1 Technical Manual, Rev. 2.5 – April 2015 Page 51 of 54... -
Page 52: Use In "Approved" Applications
EN’s (Euro Norms) or the relevant OIML (Organisation Internationale de Metrologie Legale) recommendations. The DAD 141.1 is both, a complete instrument with a Type Examination Certificate in accordance with OIML R76 (for NAWI only), but in addition supplied with three Evaluation Certificates for AWI purposes, i.e. OIML R51, R61 and R107. -
Page 53: Calibration And Calibration Sequence
Calibration and Calibration Sequence The calibration of DAD 141.1 is only possible after starting a calibration sequence (compare with chapter 10.2). Calibration enable – returns the current TAC value Command CE: Calibrate maximum display – sets the max. allowable display value Command CM: ... -
Page 54: Updates - Firmware Download
Updates – Firmware Download For a firmware update the DAD 141.1 has to be connected either via the Serial port or via the Ethernet port to a Windows PC. A download is accomplished with help of the software “H&B Programmer 3.0” (or later).
