Frico SIReB Quick Manual

Integrated room temperature sensor
Hide thumbs Also See for SIReB:

Advertisement

Quick Links

Download this manual
SE
.... 7
FR
.... 35
PL
.... 63
GB
.... 14
IT
.... 42
RU
.... 70
Original instructions
SIRe Basic
Quick guide
DE
.... 21
NL
....49
FI
.... 77
SIReB
C
ES
....28
NO
.... 56

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIReB and is the answer not in the manual?

Questions and answers

Related Manuals for Frico SIReB

Summary of Contents for Frico SIReB

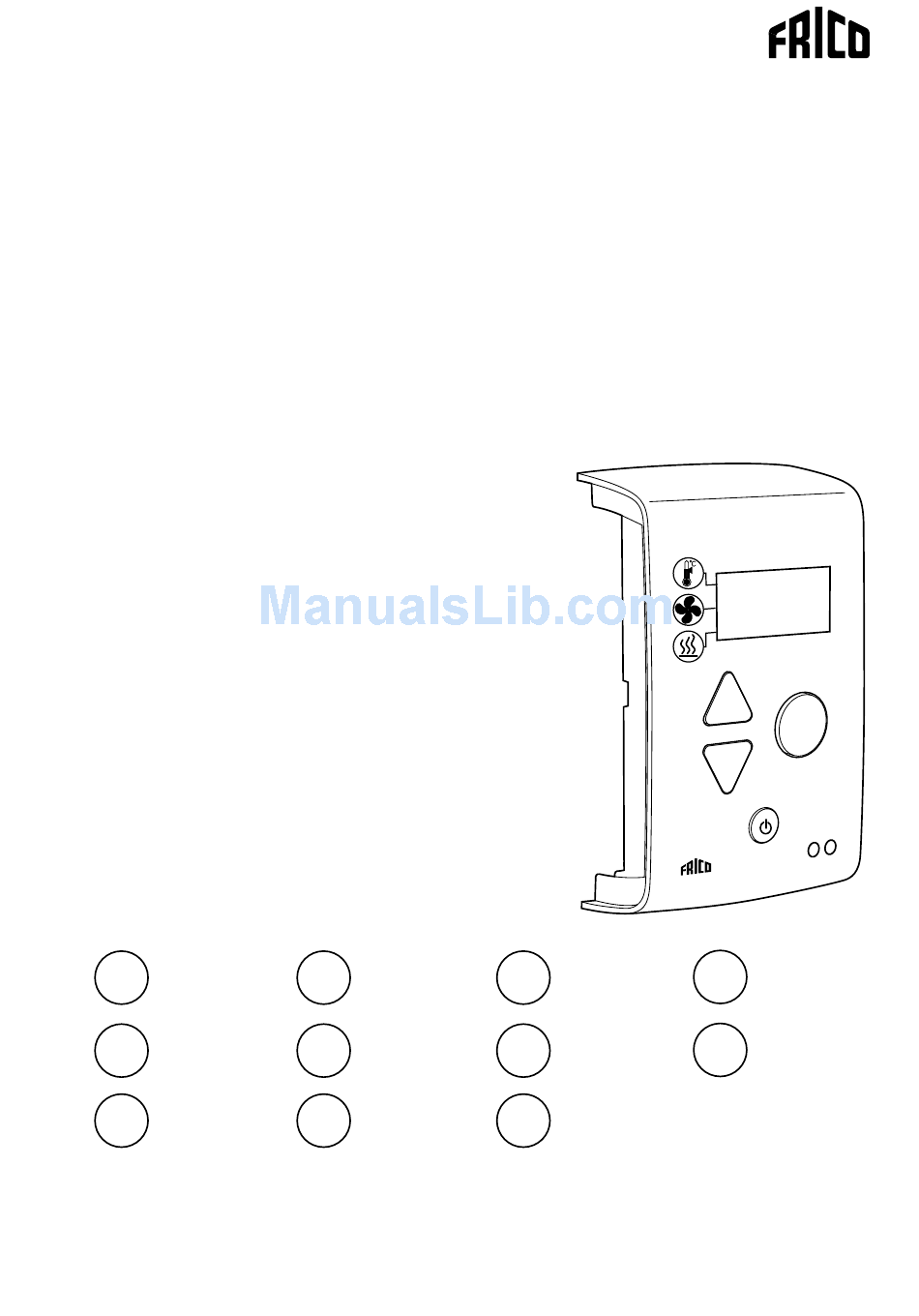

  • Page 1 Original instructions SIRe Basic Quick guide SIReB ..14 ..28 ..7 ..21 ..35 ..42 ..49 ..56 ..77 ..63 ..70...
  • Page 2 SIRe Basic Wiring diagram - Basic SIReB SIReUB1 SD230 SIReRTX SIReB1/B2/B1EC 230V~ (optional) ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX L=2m (max 50 m) L=1,5m SIReCC6XX (max 50 m) SD230 SIReB1/B2/B1EC 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX (max 50 m)

  • Page 3: Wiring Diagram

    SIRe Basic Wiring diagram SIReB SIReUB1 SIReRTX SIReB1/B2/B1EC (optional) 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX L=2m (max 50 m) SIReCC6XX (max 50 m) SIReB1/B2/B1EC 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX (max 50 m) SIReB1/B2/B1EC 230V~ SIReB1/B2/B1EC ROOM Pot.
  • Page 4 Wiring diagram - Advanced SIRe B1/B2/B1EC...
  • Page 5 Wiring diagram - Advanced...
  • Page 6 www.frico.se...
  • Page 7 SIRe Basic Quick guide/Start up Operation without control unit 1. Check that all constituent parts are present (see section Constituent parts). 2. Mount and connect all units and components and where applicable accessories (e.g. actuator), see wiring diagram. When several units are connected To run the unit set a unique ID for each unit (1-9) which temporarily without...
  • Page 8 SIRe Basic Start up 30 - 60 s 2 0 8 Prevailing room temperature Set desired room temperature 5 - + 30 °C Set fan steps 1 - 5 Activate heat 0 = No heat 1 = Heat step 1 possible 2 = Heat step 2 possible (3 = Heat step 3 possible) Heat steps controlled by thermostat.

  • Page 9: Constituent Parts

    SIRe Basic Constituent parts SIReB SIReUB1 Wall unit cover SIReCC605 Type Description HxWxD SIReUB1 Control unit with room temperature sensor 120x70x35 Modular cable RJ12 (6/6) SIReCC605 Option SIReRTX SIReCJ4 SIReCJ6 SIReCC Type Description HxWxD SIReRTX External room temperature sensor 70x33x23 SIReCJ4 Joint piece for two pcs.
  • Page 10 SIRe Basic Water control - valve kit VLSP SD230 BPV10 BPV10 SD230 TRVS SD230 SD230 TRVS Water control - valve system* Type Description Connection VLSP15LF Pressure independent DN15 VLSP15NF Pressure independent DN15 VLSP20 Pressure independent DN20 VLSP25 Pressure independent DN25 VLSP32 Pressure independent DN32...

  • Page 11: Operating Modes

    SIRe Basic Operating modes Operating modes Air curtains Operating modes fan heaters water Factory settings gives manual control of fan Set the maximum fan speed, heating step and and heating is controlled by thermostat on/off. desired room temperature. The thermostat Set parameter P04 to 1 (see parameter menu is controlling the room temperature by on the next page) to get the thermostat to...

  • Page 12: Installer Menu

    SIRe Basic Installer menu P .01 Overheating alarm ON/OFF Possibility to block the alarm (only valdid for Parameter menu units with internal temperature sensor). Note! Keep pressed until P00 is shown in the If the alarm function is blocked, it must be status window.
  • Page 13 Internal sensor Fault on or missing internal Check connection of the sensor. If there is no error sensor in the unit (applies to sensor, contact Frico for support. units with internal sensor). E.ru Room sensor Fault on internal room sensor...
  • Page 17 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
