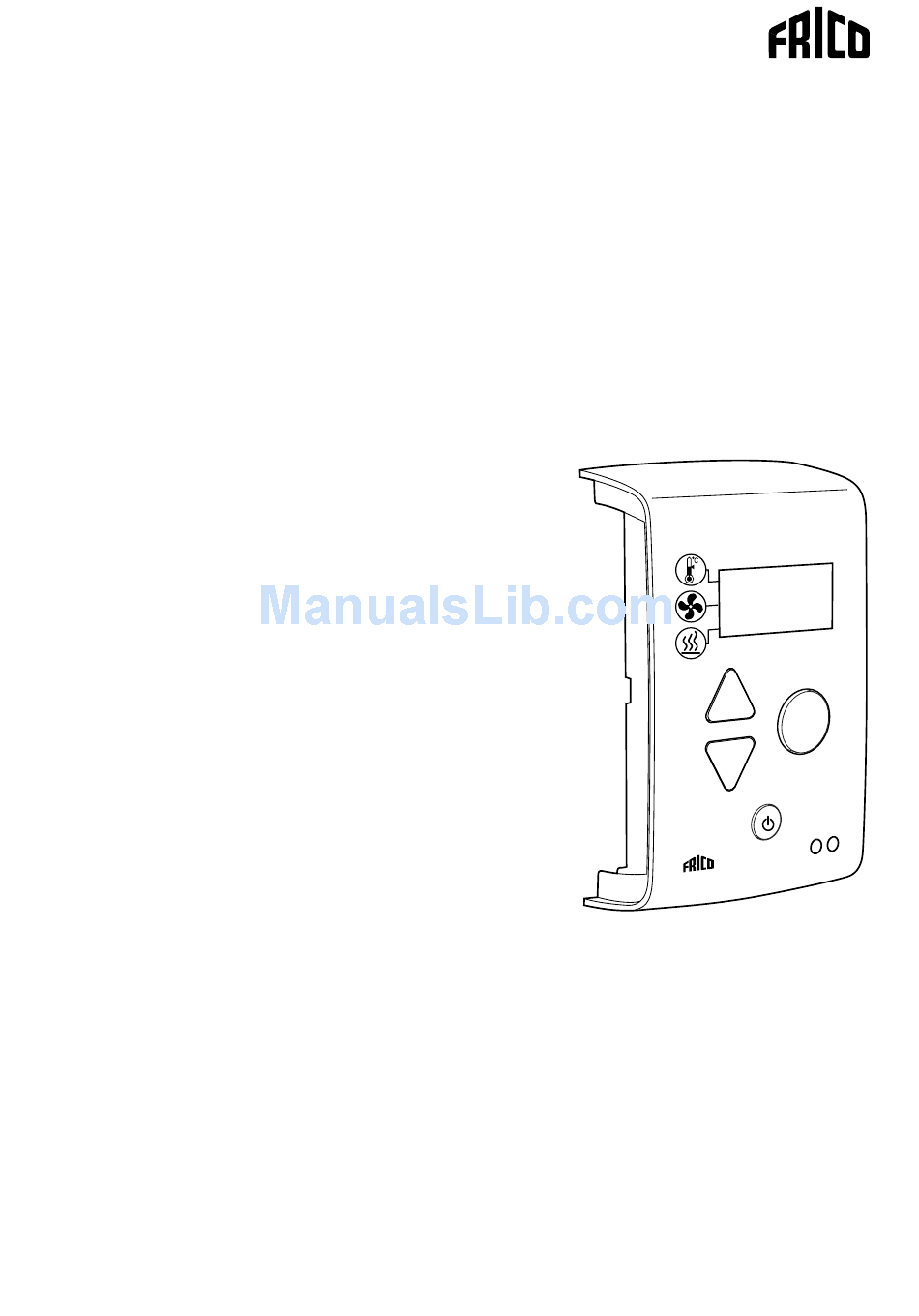

- Page 1 Original instructions SIRe Basic Air Curtains Electric With quick guide SIReB For wiring diagram, please see last pages...
-
Page 2: Connect The System
SIRe Basic Air Curtains Electric Quick guide/start up units in parallel (max 9). Each unit must get a unique ID number (1-9) which is set in the Check that all constituent parts are present ID selector of the PC board. E.g. Unit 1: ID=1, (see section Constituent parts). -
Page 3: Start Up
SIRe Basic Air Curtains Electric Start up System supplied with power. Three digits 1.4.0. (software version) is quickly shown in th the status window followed by three horizontal lines. After about 30 seconds the prevailing room temperature is then shown in the status window. -
Page 4: Table Of Contents
SIRe Basic Air Curtains Electric Contents Quick guide/start up Advice about location Connect the system Wiring diagrams Enter ID/Operation without control unit Start up Constituent parts SIReB Option Max. cable lenghts Operating modes Operating modes Fan over run Heat regulation Set values System on/off... -
Page 5: Constituent Parts
SIRe Basic Air Curtains Electric Constituent parts SIReB Integrated in the air curtain SIReB1, integrated SIReIT, internal SIReUB1, Wall unit cover PC Board Base temperature control unit Basic sensor SIReCC, modular cable Dimensions constituent parts Type Description HxWxD [mm] SIReUB1... -
Page 6: Max. Cable Lenghts
SIRe Basic Air Curtains Electric Option SIReCJ4, joint SIReCJ6, joint SIReRTX, external SIReCC, piece piece room temperature modular cable sensor Type RSK-no. E-no. Description HxWxD SIReRTX 673 09 22 87 510 12 External room temperature sensor 70x33x23 SIReCJ4 Joint piece for two pcs. RJ11 (4/4) SIReCJ6 Joint piece for two pcs. -
Page 7: Operating Modes
SIRe Basic Air Curtains Electric Operating modes Set values Use arrow up /down to choose desired room Operating modes temperature, fan speed step and heating step. Factory settings gives manual control of fan and heating controlled by thermostat at choosen step. Auto mode Change parameter P04 from 0 to 1 (see list Push the confirm button and the digit(s) -
Page 8: Control Unit Sireub1 Overview

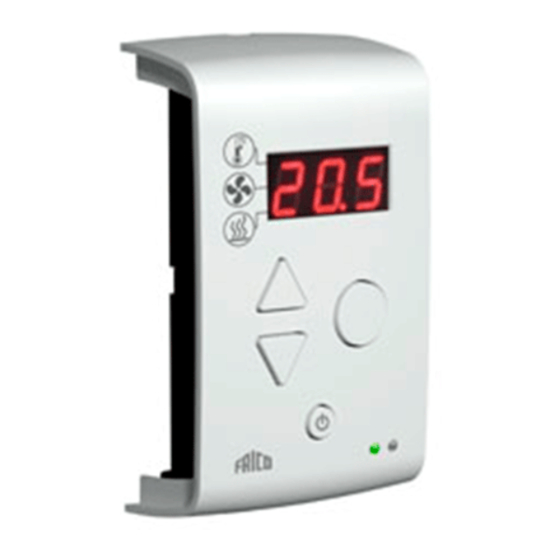

SIRe Basic Air Curtains Electric Control unit SIReUB1 Overview Prevailing room temperature 2 0 8 Statuswindow Arrow up Scroll up Confirm Desired room temperature Arrow down Scroll down Fan speed step Alarm Red Heating step Run signal Green led ON/OFF button Explanations Arrow down... -
Page 9: Installer Menu
SIRe Basic Air Curtains Electric Installer menu P .01 Overheating alarm ON/OFF Possibility to block the alarm (only valdid for Parameter menu units with internal temperature sensor). Keep Confirm button pressed until P00 is shown in the status window. Use arrow up / P .02 Over run time down to scroll between the parameters. -
Page 10: Alarm And Error Codes Overheat Protection
Note! In event of repeated alarms and over heating alarms, carry out a thorough check and if the fault cause cannot be found contact authorised service personnel or Frico. E r t Alarm code starts to Displaying alarm and error codes... - Page 11 Fault on or missing internal sensor in Check connection of the sensor. If there error the unit (applies to units with internal is no sensor, contact Frico for support. sensor). E.ru Room sensor Fault on internal room sensor in the...
- Page 12 SIRe Basic Air Curtains Electric Wiring diagram - Basic Internal PC Board Base...
- Page 13 SIRe Basic Air Curtains Electric Wiring diagram - Basic External PC Board Base...
- Page 14 SIRe Basic Air Curtains Electric Wiring diagram - Basic - parallell conection...
