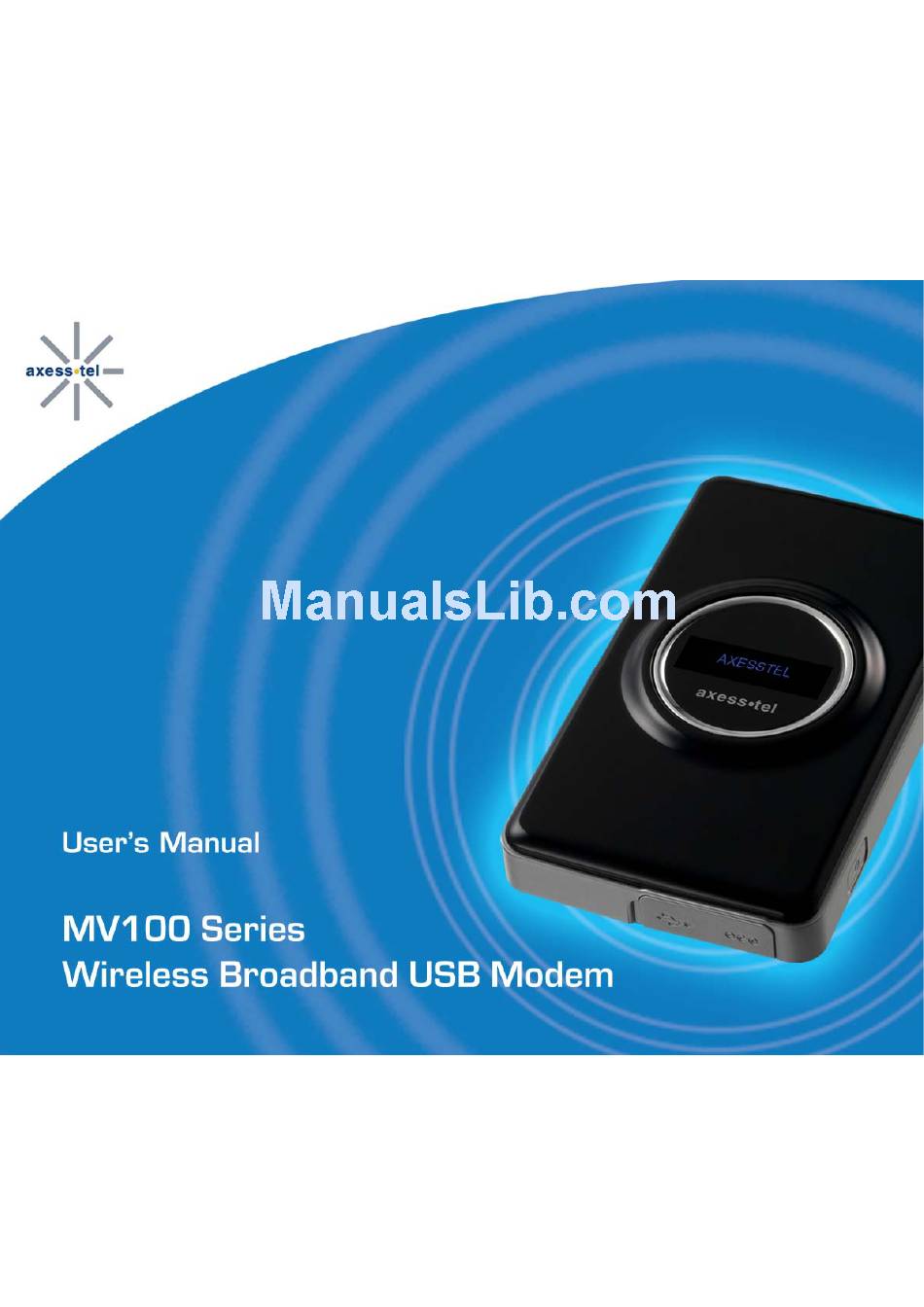

INTRODUCTION Thank you for purchasing the Axesstel MV100-Series Wireless Broadband USB Modem. This user manual will help you setup, configure and outline best practices for maximizing your wireless home network performance with the Modem. The MV100 USB Modems leverage CDMA2000 1xEV-DO Rev A networks to allow mobile professionals to maintain productivity with secure, high speed access to email, the Internet, data intensive files and multi-media streaming.
Page 3
FEATURES 1. PC-Based Connection Manager Software with PIM (Personal Information Manager) Functionality and MS Outlook Phonebook Sync 2. Two Line Color LCD with Status Indicators 3. Receive Diversity for Maximum Range and Throughput 4. Voice and Text Messaging through CDMA2000 1X 5.
SAFETY PRECAUTIONS 1. Avoid placing the phone in a dusty location, or near a source of gas or fire. 2. Don't Shake, hit or drop the modem. 3. To clean the outside of the modem, use only a soft, dry cloth. The chemicals in alcohol, benzene or acetone can damage the surface of the modem.
CHECKING THE PARTS Once you have unpacked your phone, make sure that you have all the parts shown below. If any piece is missing or broken, please call your customer service. 1. Main Unit 2. Li-Ion Battery 3. USB Data Cable 4.
CONNECTING YOUR MODEM TO THE PC Installing the modem This modem operates by receiving DC power from the AXESSTEL power adaptor that connects to an electrical outlet. The modem is equipped with a rechargeable battery as a back up in case of an AC power failure.
INSTALLING THE MODEM SOFTWARE System Requirements The system requirements for using this software are summarized below: (1) Recommended Specifications CPU: Pentium III 550Mhz or higher, IBM PC-Compatible RAM: 256MB or more VGA: Video card with1024 I 768 resolution and 65536 or more colors HDD: 200MB or more hard disk space Others: CD-ROM Drive or DVD Drive OS: Microsoft Windows 2000 or higher (Compatible with Vista version)
Page 8
The entire process will take approximately 10 minutes to complete. Step 1: Press and hold down the ON/OFF button while inserting the USB cable to the PC port. The above window will appear. Click “Axesstel Manager Setup.exe” to install AxessManager.
Page 9
Note: If auto-install feature is not available and you don’t see the pop-up window in step 1, click on “Start” then “My Computer” to see the virtual drive associated with the Modem. Double-click on that drive to see the pop-up window shown in step 1 Step 2: Click “Next”...
Page 11
Step 4: Click Finish to complete installation of AxessManager...
Page 12
Step 5: Click Axesstel Driver Setup folder and select “Install 32” folder *If you use 64bit processor, please run “MSP_Install64.exe” under “Install 64” folder.
Page 13
Step 6: Click MSP_Install.exe to install USB Driver...
Page 14
The following screen will appear Step 7: Click Install Step 8: After finishing driver file copy, Modem will be change to Modem mode from CD ROM Mode.
Page 15
Step 9: Axesstel USB Mode will be detected on your PC. Select Next to install USB Driver.
Page 20
Step 14: Select Finish to complete the process. After this step you can start to use AxessManager...
Page 21
Once finished the installation, AxessManager SW utility will appear as a short cut icon in Window. Axesstel Manager...
Page 22
When the power cord is connected properly, all segments of the LCD window will turn on briefly. The number of bars of signal strength indicator (antenna icon) indicates the AXESSTEL strength of service signal of the area. The display will show the greeting with date and time.
GETTING TO KNOW YOUR MODEM 1. Modem Interfaces 1. Audio jack: Standard audio jack for audio headset. Insert ear-mic to make and receive voice calls. 2. Power button: Press to turn on / off the modem and hang up the call. To turn the modem ON, press and quickly release this button.
Page 24
2. AxessManager GUI AxessManager is a SW utility that allows the administration of your Modem. You use AxessManager to: Initiate data or voice calls Manage Personal Information such as Contact list and phonebook Receive and send SMS messages Customize features and options 1.
Icons display on the screen to indicate what features you are using, e.g. signal strength, battery status and etc... Indicate the strength of the signal. More bars Indicate stronger signal. AXESSTEL Indicate the level of battery power. The more bars, Fri, Feb 9 5:24P The more power. When the battery is low, the icon blinks, and an alert tone sounds.
1. Getting Started When the PC and modem are connected via the USB cable, AxessManager allows you to browse internet, modify modem configurations. In addition, you can perform management tasks for phone numbers such as adding, modifying and deleting them, and you can write messages in your PC and send them to your modem.
Page 28
1.1. Basic User Interface 1. Connect/Disconnect Button: Used to Connect/Disconnect PC and Phone. 2. Manager Menu: Manager Menu allows you to conveniently move to each Manager by one click. The icon of each Manager is displayed, and when you click each Manager icon, the Sub Menu is displayed in the tree structure Name Image Button...
Page 29
3. Menu Bar: The basic menu of AxessManager is provided. The Menu Bar provides the following main and sub menus: Name Sub Menu Function File Open Open a file in the PC for each Manager. Save a file in the PC in the format supported by each File Save Manager.
Page 30
4. Toolbar: The frequently used menu items of the Menu Bar are provided as icons. Toolbar provides the following functions. Name Image Button Function Open Opens a file in the PC for each Manager. Saves a file in the PC in the format supported by each Save Manager.
Page 31
1.2. Connecting/Disconnecting Your Modem to/From the PC Connecting 1. First, connect your PC with the modem using the supplied cable. Insert the cable firmly to the modem until it clicks into place.
Page 32
1. Click the icon on your desktop to run the AxessManager Program. Axesstel Manager 2. Click the Connect/Disconnect button. Note that a connection profile needs to be defined and selected before using the Connect/Disconnect button. Please refer to the section “Add Connect Item”...
Page 33
3. Disconnect the cable from PC and modem. 2. Internet Connect Internet Connection System allows the PC to connect to the internet through network provider with Axesstel Modem. 1. Internet Connection Connect / Disconnect 1.1. Connect Once the initial setup is complete, you can use your modem. To make a communication connection using the modem, click the ‘E’...
Page 34
A short, functional description for each button on the Setup dialog is provided below. Button Description Allows you to add a new 'Connect Item'. Delete Allows you to delete an existing 'Connect Item.' Properties Allows you to modify existing 'Connect Item' settings. Allows you to view and select from a list of modems currently available for Modem connection.
Page 35
(1) Connect Name: Enter the name to be displayed on the 'Connect Item' list. (2) Phone: Specify the phone number to which modem will connect. (3) User Name: If required, enter the user ID for the network provider. (4) Password: Enter the password for the user name.
Page 36
2.3. Modify Connect Item Select the 'Connect Item' you want to modify from the 'Connect Item' list in the Setup dialog, and click Properties. The following dialog appears, allowing you to modify the settings. See ‘Add Connect Item' for detailed descriptions about the settings. 2.4.
Page 37
1. Inbox List View (1) By default, Inbox List View shows all Inbox messages saved in the phone. (2) The details of the Inbox message selected from Inbox List View is displayed in the Preview window at bottom.
Page 38
(3) You can delete the messages displayed in Inbox List View. (You cannot add.) 2. Preview Window & Reply/Forward (Send) (1) The details of the Inbox message selected from Inbox List View is displayed in the Preview window at bottom. (2) When you click the Reply button in the Preview window, a new window pops up for you to edit the message and send it to the sender.
Page 39
3.2. Saved box Manager To use Saved Box Manager, click the Saved Box icon. With Saved Box Manager, you can reply to, forward, or delete selected messages. 1. Saved Box List View (1) By default, Saved Box List View shows all Saved Box messages saved in the modem. (2) The details of the Saved Box message selected from Saved Box List View is displayed in the Preview window at bottom.
Page 40
The selected Saved Box data is deleted at once from the modem. The deleted Saved Box data cannot be restored. 4. To PC The Saved Box List View is updated with the Saved Box messages currently saved in the modem. 3.3.
Page 41
(6) You can type in the number directly, or click the ok button to open the following window (7) You can search for existing phone numbers from the contact list. 3. Delete Outbox Data Select the data to delete and press the Delete key on the keyboard. To delete multiple data simultaneously, select them with your mouse while pressing down the Shift or Ctrl key and then press the Delete key.
Page 42
(2) To write a new message, click the “New” button in the Preview window, or double click an empty field in the Draft Box List. A new window pops up in which you can write a new message and send it to others. (3) When you click the Forward button in the Preview window, a new window pops up for you to edit the message and send it to the another person.
Page 43
3. Delete Draft Box Data Select the data to delete and press the Delete key on the keyboard. To delete multiple data simultaneously, select them with your mouse while pressing down the Shift or Ctrl key and then press the Delete key. The selected Draft Box data is deleted at once from the modem. The deleted Draft Box data cannot be restored.
Page 44
4. PIMS Manager By using PIMS Manager, you can upload contact data to your modem, or download it from modem to PC for more convenient management.
Page 45
4.1 Contacts Manager By using the contacts, user can enter/change/erase the name, group, telephone numbers (mobile, home, office), Fax, E-Mail, Address. Also, user can check the number of SIM's and memories that can be registered, and here the number of possible registrations varies depending on the kinds of the connected modem. Therefore, the entries in the contracts can be selectively registered to the SIM and Memories.
Page 46
1. Upload (Modem After confirmation of successful connection with the modem, select the Tool then PHONE PC menu from the File menu on the top (Or, click the icon). 2. Download (PC Modem) After confirmation of successful connection with the modem, select the Tool then PC PHONE menu from the File menu on the top (Or, click the icon).
Page 47
Enter at least one digit in the Name and Phone Number For Phone Numbers: up to 20 digits can be entered including codes such as, '#', '-', '*'. For Names: When you add data in SIM, the name have a restricted length by SIM and you can only add mobile number.
Page 48
7. Arranging Contacts (1) To arrange the Contacts, click the item on the Phone Number list. (2) This will make the Contacts arranged with respect to the chosen item. 8. Making a Call (1) To make an outgoing call, highlight the item on the Phone Number list, and click the Phone Call button.
Page 49
2. Writing CSV Files (1) To store existing data as CSV files, perform the following steps. - Select Tool> Write CSV on the menu. (2) A dialogue box is displayed as shown below. - When the above dialogue box is displayed, click 'Find File' button to specify the directory to store files in your PC and enter the name of the file to store.
Page 50
(3) Then, a list of data read is displayed on Data List Window that shows the phonebook on PIMS Manager. 2. Writing vCard Files (1) To store existing data as vCard files, perform the following steps. - Select Tool> Export vObject on the menu. (2) A dialogue box is displayed as shown below.
Page 51
5. Call Manager Call Manager may be invoked from the main window or from the PIMS manager by pressing “Phone call” button. Both actions will bring up a new window that emulated a cell phone.
Page 53
1. Making a Call (1) Press number keypads (2) Type in numbers directly on the LCD box. (3) When typing/pressing numbers, press CLR button to erase last number entered, or END button to clear all numbers (4) Press the Send button to make a call to the number displayed on the LCD box. (5) Press END button to hang up the call.
Page 54
(3) Refer to SMS section to send a message. 5. PIMS (1) Press PIMS button to look up a number in the address book. (2) PIMS Window will be opened. (3) Refer to PIMS section to manage phonebook data.
SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: PH7MV140. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
Safety Information 1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS .POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death.
Page 61
U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the...
