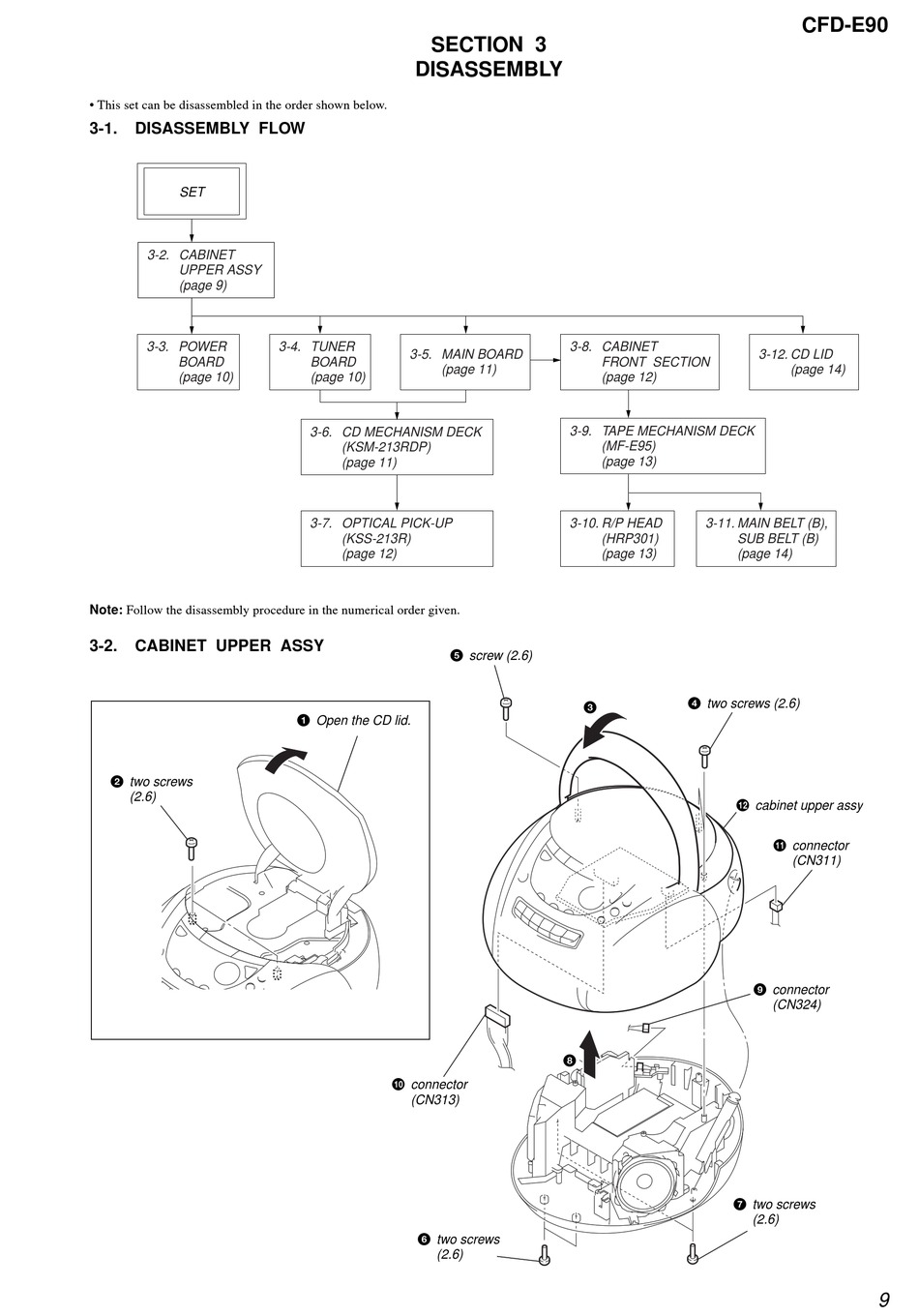

• This set can be disassembled in the order shown below.
3-1.

DISASSEMBLY FLOW

SET
3-2. CABINET
UPPER ASSY
(page 9)
3-3. POWER
BOARD
(page 10)
Note: Follow the disassembly procedure in the numerical order given.
3-2.

CABINET UPPER ASSY

2 two screws
(2.6)
SECTION 3

DISASSEMBLY

3-4. TUNER
3-5. MAIN BOARD
BOARD
(page 11)
(page 10)
3-6. CD MECHANISM DECK
(KSM-213RDP)
(page 11)
3-7. OPTICAL PICK-UP
(KSS-213R)
(page 12)
5 screw (2.6)
1 Open the CD lid.
0 connector
(CN313)
6 two screws
(2.6)
3-8. CABINET
FRONT SECTION
(page 12)
3-9. TAPE MECHANISM DECK
(MF-E95)
(page 13)
3-10. R/P HEAD 3-11. MAIN BELT (B),
(HRP301)
(page 13)
4 two screws (2.6)
3
8
7 two screws
CFD-E90
3-12. CD LID
(page 14)
SUB BELT (B)
(page 14)
qs cabinet upper assy
qa connector
(CN311)
9 connector
(CN324)
(2.6)
9
