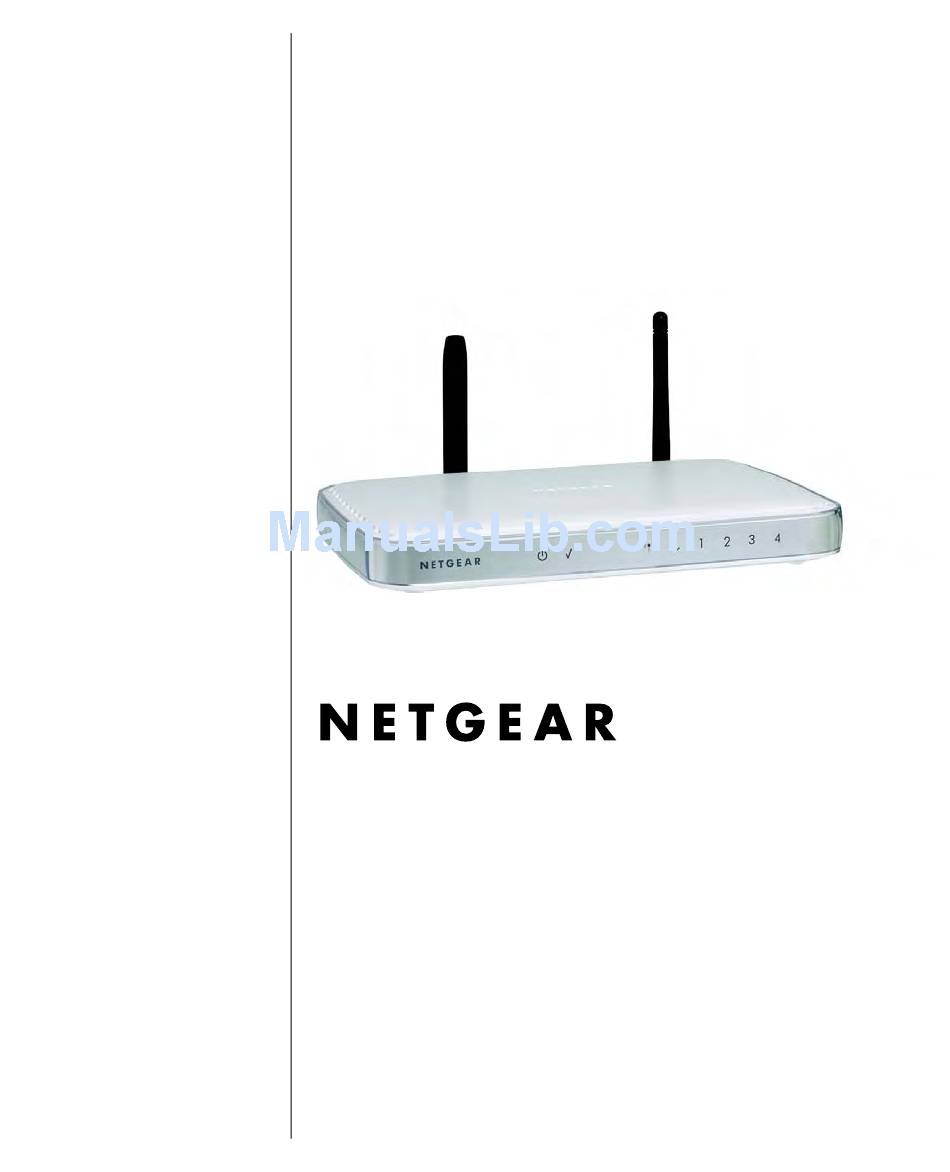

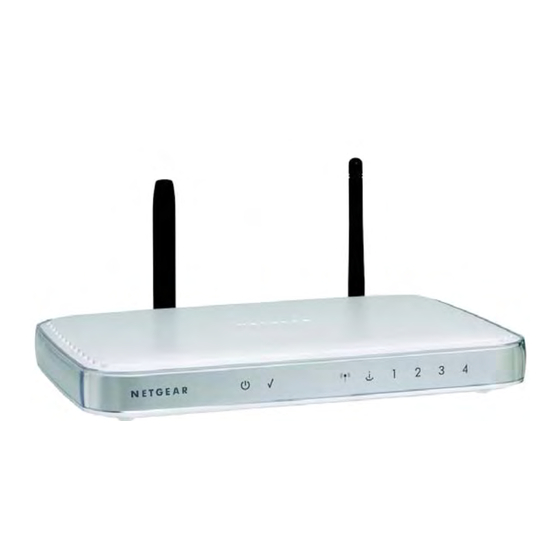

Reference Manual for the
Mobile Broadband Router
MBR814X
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
202-10141-01
January 2006

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR MBR814X

Summary of Contents for NETGEAR MBR814X

  • Page 1 Reference Manual for the Mobile Broadband Router MBR814X NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA 202-10141-01 January 2006...

  • Page 2: Customer Support

    In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Product and Publication Details Model Number: MBR814X Publication Date: January 2006 Product Family: Product Family Product Name: Mobile Broadband Router MBR814X Home or Business Product: Business Language: English Publication Part Number: 202-10141-01 v1.0, January 2006...
  • Page 4 v1.0, January 2006...

  • Page 5: Table Of Contents

    Computer Hardware Requirements .................3-1 LAN Configuration Requirements ................3-2 Internet Configuration Requirements ...............3-2 Where Do I Get the Internet Configuration Parameters? .........3-2 Record Your Internet Connection Information ............3-3 Connecting the MBR814X to Your LAN ................3-4 First, install the router....................3-4 v2.0 BETA, January 2006...
  • Page 6 How to Configure WEP ..................4-11 How to Configure WPA-PSK ..................4-12 Chapter 5 Protecting Your Network Protecting Access to Your Mobile Broadband Router MBR814X........5-1 How to Change the Built-In Password ..............5-1 Changing the Administrator Login Timeout ..............5-2 Configuring Basic Firewall Services ................5-2 Blocking Keywords, Sites, and Services ..............5-3...
  • Page 7 How to Back Up the Configuration to a File .............6-1 How to Restore the Configuration from a File ............6-2 How to Erase the Configuration ................6-2 Upgrading the Router’s Firmware ...................6-2 How to Upgrade the Router Firmware ..............6-3 Network Management Information .................6-4 Viewing Router Status and Usage Statistics ............6-4 Viewing Attached Devices ..................6-9 Viewing, Selecting, and Saving Logged Information ..........6-9...
  • Page 8 Troubleshooting the Web Configuration Interface ............8-3 Troubleshooting the ISP Connection ................8-4 Wireless Broadband Link ..................8-4 Obtaining an Internet IP Address ................8-4 Troubleshooting Internet Browsing ................8-5 Troubleshooting a TCP/IP Network Using the Ping Utility ..........8-5 Testing the LAN Path to Your Router ...............8-6 Testing the Path from Your Computer to a Remote Device ........8-6 Restoring the Default Configuration and Password ..........8-7 Using the Reset button .....................8-7...

  • Page 9: About This Manual

    This reference manual assumes that the reader has basic to intermediate computer and Internet skills. However, basic computer network, Internet, firewall, and VPN technologies tutorial information is provided in the Appendices and on the Netgear website. This guide uses the following typographical conventions: Table 1-1.

  • Page 10: How To Use This Manual

    Reference Manual for the Mobile Broadband Router MBR814X Danger: This is a safety warning. Failure to take heed of this notice may result in personal injury or death. This manual is written for the MBR814X router according to these specifications: Table 1-2. Manual Scope Product Version...
  • Page 11 Reference Manual for the Mobile Broadband Router MBR814X Each page in the HTML version of the manual is dedicated to a major topic. Use the Print button on the browser toolbar to print the page contents. • Printing a Chapter.
  • Page 12 Reference Manual for the Mobile Broadband Router MBR814X v1.0, January 2006...

  • Page 13: Introduction

    Introduction This chapter describes the features of the NETGEAR Mobile Broadband Router MBR814X. The MBR814X router is a combination of a wireless broadband modem, router, 4-port switch, and firewall which enables your entire network to safely share an Internet connection.

  • Page 14: 802.11 Standards-Based Wireless Networking

    • Wireless access can be restricted by MAC address. A Powerful, True Firewall Unlike simple Internet sharing NAT routers, the MBR814X is a true firewall, using stateful packet inspection to defend against hacker attacks. Its firewall features include: • Denial of Service (DoS) protection Automatically detects and thwarts Denial of Service (DoS) attacks such as Ping of Death, SYN Flood, LAND Attack and IP Spoofing.

  • Page 15: Auto Sensing And Auto Uplink™ Lan Ethernet Connections

    Auto Sensing and Auto Uplink™ LAN Ethernet Connections With its internal 4-port 10/100 switch, the MBR814X can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. The local LAN ports are autosensing and capable of full-duplex or half-duplex operation.

  • Page 16: Easy Installation And Management

    Easy Installation and Management You can install, configure, and operate the MBR814X within minutes after connecting it to the network. The following features simplify installation and management tasks: •...

  • Page 17: The Router's Front Panel

    • Warranty and Support Information Cards If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. The Router’s Front Panel The Mobile Broadband Router MBR814X front panel shown below contains status LEDs.

  • Page 18: The Router's Rear Panel

    Reference Manual for the Mobile Broadband Router MBR814X Table 2-1. LED Descriptions Activity Description Power Power is supplied to the router. Power is not supplied to the router. Test The system is initializing. The system is ready and running. Wireless Indicates that the Wireless port is initialized.
  • Page 19 Reference Manual for the Mobile Broadband Router MBR814X • Wireless antenna • AC power adapter outlet • Four Local Ethernet RJ-45 ports for connecting the router to the local computers • Factory Default Reset push button • Slot with wireless broadband PC Card...
  • Page 20 Reference Manual for the Mobile Broadband Router MBR814X v1.0, January 2006...

  • Page 21: Connecting The Router To The Internet

    DHCP. Ethernet Cabling Requirements The MBR814X router connects to your Ethernet LAN via twisted-pair cables. If the computer will connect to your network at 100 Mbps, you must use a Category 5 (CAT5) cable such as the one provided with your router.

  • Page 22: Lan Configuration Requirements

    For Macintosh computers, open the TCP/IP or Network control panel. • You can also refer to the MBR814X Resource CD for the NETGEAR Router ISP Guide which provides Internet connection information for many ISPs. Once you locate your Internet configuration parameters, you may want to record them on the next page.

  • Page 23: Record Your Internet Connection Information

    Reference Manual for the Mobile Broadband Router MBR814X Record Your Internet Connection Information Print this page. Fill in the configuration parameters from your Internet Service Provider (ISP). ISP Login Name: The login name and password are case sensitive and must be entered exactly as given by your ISP.

  • Page 24: Connecting The Mbr814X To Your Lan

    Reference Manual for the Mobile Broadband Router MBR814X Connecting the MBR814X to Your LAN This section provides instructions for connecting the MBR814X router. There are three steps to connecting your router: 1. Install the router. 2. Log in to the router.

  • Page 25: Next, Log In To The Router

    Reference Manual for the Mobile Broadband Router MBR814X • The power light is lit after applying power to the router. • The Status light comes on briefly and then goes off. Note: If applicable, the status light on the broadband card shows that it is active. Please refer to the broadband card user manual for details.

  • Page 26: Then, Connect To The Internet

    Reference Manual for the Mobile Broadband Router MBR814X Enter admin for the user name and password for the password, both in lower case letters. After logging in you will see the Basic Setup menu. Figure 3-4 Then, connect to the Internet.

  • Page 27: Testing Your Internet Connection

    After completing the Internet connection configuration, your can test your Internet connection. Log in to the router, then, from the Basic Settings link in the Setup menu, click the Test button. If the NETGEAR Web site does not appear within one minute, refer to Chapter 8, “Troubleshooting”.

  • Page 28: Manually Configuring Your Internet Connection

    A DNS server is a host on the Internet that translates Internet names (such as www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP address of one or two DNS servers to your router during login. If the ISP does not transfer an address, you must obtain it from the ISP and enter it manually here.
  • Page 29 Classical routing lets you directly manage the IP addresses the MBR814 uses. Classical routing should be selected only by experienced users. Note: Disabling NAT will reboot the router and reset all the MBR814X configuration settings to the factory default. Disable NAT only if you plan to install the MBR814X in a setting where you will be manually administering the IP address space on the LAN side of the router.
  • Page 30 Reference Manual for the Mobile Broadband Router MBR814X 3-10 v1.0, January 2006...

  • Page 31: Wireless Configuration

    Chapter 4 Wireless Configuration This chapter describes how to configure the wireless features of your Mobile Broadband Router MBR814X. Considerations for a Wireless Network In planning your wireless network, you should consider the level of security required. You should also select the physical placement of your router in order to maximize the network speed. For further information, refer to the link to “Wireless Communications:”...

  • Page 32: Implement Appropriate Wireless Security

    Restrict Access Based on MAC Address. You can allow only trusted PCs to connect so that unknown PCs cannot wirelessly connect to the MBR814X. Restricting access by MAC address adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

  • Page 33: Understanding Wireless Settings

    Reference Manual for the Mobile Broadband Router MBR814X • WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared Key authentication and WEP data encryption will block all but the most determined eavesdropper. • WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides data security. The very strong authentication along with dynamic per frame re-keying of WPA make it virtually impossible to compromise.
  • Page 34 32 alphanumeric characters. The same Name (SSID) must be assigned to all wireless devices in your network. The default SSID is NETGEAR, but NETGEAR strongly recommends that you change your network Name to a different value.
  • Page 35 • If Shared or Open Network Authentication is enabled, you can choose 64- or 128-bit WEP data encryption. Note: With Open Network Authentication and 64- or 128-bit WEP Data Encryption, the MBR814X does perform 64- or 128-bit data encryption but does not perform any authentication. Security Encryption (WEP) Key These key values must be identical on all wireless devices in your network (key 1 must be the same for all, key 2 must be the same for all, and so on).

  • Page 36: How To Set Up And Test Basic Wireless Connectivity

    LAN address and password you have set up. 2. Click the Wireless Settings link in the main menu of the MBR814X firewall. 3. Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box, enter a value of up to 32 alphanumeric characters.

  • Page 37: How To Restricting Wireless Access To Your Network

    Restricting Access to Your Network by Turning Off Wireless Connectivity You can completely turn off the wireless portion of the MBR814X. For example, if your notebook computer is used to wirelessly connect to your router and you take a business trip, you can turn off the wireless portion of the router while you are traveling.
  • Page 38 This list determines which wireless hardware devices will be allowed to connect to the firewall. To restrict access based on MAC addresses, follow these steps: 1. Log in to the MBR814X firewall at its default LAN address of http://192.168.0.1 with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.

  • Page 39: Choosing Wep Authentication And Security Encryption Methods

    6. Make sure the Turn Access Control On check box is selected, then click Apply. Now, only devices on this list will be allowed to wirelessly connect to the MBR814X. This prevents unauthorized access to your network.
  • Page 40 If you require strong security, use both the Shared Key and WEP encryption settings. Set your wireless adapter according to the authentication scheme you choose for the MBR814X router. Please refer to for a full explanation of each the link to “Wireless Communications:...

  • Page 41: How To Configure Wep

    LAN address and password you have set up. 2. Click the Wireless Settings link in the main menu of the MBR814X router. 3. Go to the Security Encryption portion of the page: Figure 4-6 4.

  • Page 42: How To Configure Wpa-Psk

    Be sure you clearly understand how the WEP key settings are configured in your wireless adapter. Wireless adapter configuration utilities such as the one included in Windows XP only allow entry of one key which must match the default key you set in the MBR814X. 8. Click Apply to save your settings.

  • Page 43: Protecting Your Network

    Note: The user name and password are not the same as any user name or password your may use to log in to your Internet connection. NETGEAR recommends that you change this password to a more secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of both upper and lower case letters, numbers, and symbols.

  • Page 44: Changing The Administrator Login Timeout

    Reference Manual for the Mobile Broadband Router MBR814X 2. From the main menu of the browser interface, under the Maintenance heading, select Set Password to bring up the Set Password dialog box. Figure 5-2 3. To change the password, first enter the old password, and then enter the new password twice.

  • Page 45: Blocking Keywords, Sites, And Services

    The section below explains how to configure your How to Block Keywords and Sites The MBR814X router allows you to restrict access to Internet content based on functions such as Web addresses and Web address keywords. 1. Log in to the router at its default LAN address of http://192.168.0.1...
  • Page 46 Reference Manual for the Mobile Broadband Router MBR814X 2. Select the Block Sites link of the Security menu. Figure 5-3 3. To enable keyword blocking, select one of the following: • Per Schedule—to turn on keyword blocking according to the settings on the Schedule page.

  • Page 47: Firewall Rules

    Reference Manual for the Mobile Broadband Router MBR814X You can specify one trusted user, which is a computer that will be exempt from blocking and logging. Since the trusted user will be identified by an IP address, you should configure that computer with a fixed IP address.

  • Page 48: Inbound Rules (Port Forwarding)

    Reference Manual for the Mobile Broadband Router MBR814X To access the rules configuration of the MBR814X, click the Firewall Rules link on the main menu, then click Add for either an Outbound or Inbound Service. Figure 5-4 • To edit an existing rule, select its button on the left side of the table and click Edit.
  • Page 49 Reference Manual for the Mobile Broadband Router MBR814X Remember that allowing inbound services opens holes in your firewall. Only enable those ports that are necessary for your network. Following are two application examples of inbound rules: Inbound Rule Example: A Local Public Web Server...
  • Page 50 Reference Manual for the Mobile Broadband Router MBR814X – Any — all IP addresses are covered by this rule. – Address range — if this option is selected, you must enter the Start and Finish fields. – Single address — enter the required address in the Start field.

  • Page 51: Outbound Rules (Service Blocking)

    WAN IP address will fail. Outbound Rules (Service Blocking) The MBR814X allows you to block the use of certain Internet services by computers on your network. This is called service blocking or port filtering. You can define an outbound rule to block Internet access from a local computer based on: •...
  • Page 52 Reference Manual for the Mobile Broadband Router MBR814X Outbound Rule Example: Blocking Instant Messenger If you want to block Instant Messenger usage by employees during working hours, you can create an outbound rule to block that application from any internal IP address to any external address according to the schedule that you have created in the Schedule menu.

  • Page 53: Order Of Precedence For Rules

    Reference Manual for the Mobile Broadband Router MBR814X – Single address — enter the required address in the Start field. • WAN Users These settings determine which packets are covered by the rule, based on their destination WAN IP address. Select the desired option: –...

  • Page 54: Services

    1024 to 65535 by the authors of the application. Although the MBR814X already holds a list of many service port numbers, you are not limited to these choices. Use the procedure below to create your own service definitions.

  • Page 55: Setting Times And Scheduling Firewall Services

    4. Click Apply to save your changes. Setting Times and Scheduling Firewall Services The MBR814X router uses the Network Time Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. How to Set Your Time Zone In order to localize the time for your log entries, you must specify your Time Zone: 1.

  • Page 56: How To Schedule Firewall Services

    Enabling Daylight Savings Time will cause one hour to be added to the standard time. 4. The router has a list of NETGEAR NTP servers. If you would prefer to use a particular NTP server as the primary server, enter its IP address under Use this NTP Server.
  • Page 57 Reference Manual for the Mobile Broadband Router MBR814X 1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name of admin, default password of password, or using whatever Password and LAN address you have chosen for the router.
  • Page 58 Reference Manual for the Mobile Broadband Router MBR814X 5-16 v1.0, January 2006...

  • Page 59: Managing Your Network

    Backing Up, Restoring, or Erasing Your Settings The configuration settings of the MBR814X router are stored in a configuration file in the router. This file can be backed up to your computer, restored, or reverted to factory default settings. The procedures below explain how to do these tasks.

  • Page 60: How To Restore The Configuration From A File

    “The Router’s Rear Panel” in Chapter Upgrading the Router’s Firmware The software of the MBR814X router is stored in FLASH memory, and can be upgraded as new software is released by NETGEAR. Upgrade files can be downloaded from NETGEAR's Web site. If the upgrade file is compressed (.ZIP file), you must first extract the binary (.BIN or .IMG) file before uploading it to the router.

  • Page 61: How To Upgrade The Router Firmware

    Reference Manual for the Mobile Broadband Router MBR814X How to Upgrade the Router Firmware Note: NETGEAR recommends that you back up your configuration before doing a firmware upgrade. After the upgrade is complete, you may need to restore your configuration settings.

  • Page 62: Network Management Information

    Reference Manual for the Mobile Broadband Router MBR814X Network Management Information The MBR814X provides a variety of status and usage information which is discussed below. Viewing Router Status and Usage Statistics From the main menu, under Maintenance, select Router Status to view a screen similar to below.
  • Page 63 Reference Manual for the Mobile Broadband Router MBR814X Table 6-1. Router Status Fields Field Description Firmware Version This field displays the router firmware version. Broadband These parameters apply to a wireless broadband PC card. Modem SW Version Software version used in the broadband PC card.
  • Page 64 Reference Manual for the Mobile Broadband Router MBR814X The Router Status page also displays parameter applicable for the broadband module. Please refer to your PC card module for the information regarding the parameters. Port Status Click the Port Status button on the Router Status page to display the broadband Status, as...
  • Page 65 Reference Manual for the Mobile Broadband Router MBR814X More Information Click the More Information button on the Router Status page to display more information about the DHCP Client Status. Figure 6-5 Clicking the Renew button updates the status information. This screen shows the following statistics: Table 6-1.
  • Page 66 Reference Manual for the Mobile Broadband Router MBR814X Show Statistics Click the Show Statistics button on the Router Status page to display router usage statistics, as shown below: Figure 6-6 This screen shows the following statistics:. Table 6-1. Show Router Statistics Fields...

  • Page 67: Viewing Attached Devices

    Reference Manual for the Mobile Broadband Router MBR814X Viewing Attached Devices The Attached Devices menu contains a table of all IP devices that the router has discovered on the local network. From the main menu of the browser interface, under the Maintenance heading,...
  • Page 68 Reference Manual for the Mobile Broadband Router MBR814X An example of the logs file is shown below. Figure 6-8 6-10 v1.0, January 2006...
  • Page 69 Reference Manual for the Mobile Broadband Router MBR814X Log entries are described below: Table 6-1. Security Log entry descriptions Field Description Date and Time The date and time the log entry was recorded. Description or The type of event and what action was taken if any.

  • Page 70: Examples Of Log Messages

    Reference Manual for the Mobile Broadband Router MBR814X Saving Log Files on a Server You can choose to write the logs to a computer running a syslog program. To activate this feature, select to Broadcast on Lan or enter the IP address of the server where the Syslog file will be written.

  • Page 71: Enabling Security Event E-Mail Notification

    Reference Manual for the Mobile Broadband Router MBR814X Enabling Security Event E-mail Notification In order to receive logs and alerts by e-mail, you must provide your e-mail information in the E- mail subheading: Figure 6-9 • Turn e-mail notification on. Select this check box if you want to receive e-mail logs and alerts from the router.

  • Page 72: Running Diagnostic Utilities And Rebooting The Router

    In this case, the router overwrites the log and discards its contents. Running Diagnostic Utilities and Rebooting the Router The MBR814X router has a diagnostics feature. You can use the diagnostics menu to perform the following functions from the router: •...

  • Page 73: Enabling Remote Management

    Using the Remote Management page, you can allow a user or users on the Internet to configure, upgrade and check the status of your Mobile Broadband Router MBR814X. Note: Be sure to change the router's default password to a very secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of letters (both upper and lower case), numbers, and symbols.
  • Page 74 Reference Manual for the Mobile Broadband Router MBR814X When accessing your router from the Internet, you will type your router's WAN IP address in your browser's Address (in IE) or Location (in Netscape) box, followed by a colon (:) and the custom port number.
  • Page 75 Reference Manual for the Mobile Broadband Router MBR814X 6-17 v1.0, January 2006...
  • Page 76 Reference Manual for the Mobile Broadband Router MBR814X 6-18 v1.0, January 2006...

  • Page 77: Advanced Configuration

    This chapter describes how to configure the advanced features of your Mobile Broadband Router MBR814X. Configuring Advanced Security The Mobile Broadband Router MBR814X provides a variety of advanced features, such as: • Setting up a Demilitarized Zone (DMZ) Server •...

  • Page 78: Connect Automatically, As Required

    Reference Manual for the Mobile Broadband Router MBR814X Incoming traffic from the Internet is normally discarded by the router unless the traffic is a response to one of your local computers or a service that you have configured in the Ports menu.

  • Page 79: Disable Port Scan And Dos Protection

    Reference Manual for the Mobile Broadband Router MBR814X If you have an “Always on” connection, this setting has no effect. Disable Port Scan and DOS Protection The Firewall protects your LAN against Port Scans and Denial of Service (DOS) attacks. This should be disabled only in special circumstances.
  • Page 80 Reference Manual for the Mobile Broadband Router MBR814X These addresses are part of the Internet Engineering Task Force (IETF)-designated private address range for use in private networks, and should be suitable in most applications. If your network has a requirement to use a different IP addressing scheme, you can make those changes in this menu.

  • Page 81: Dhcp

    Reference Manual for the Mobile Broadband Router MBR814X – RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you have an unusual network setup. – RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2 format.

  • Page 82: How To Configure Lan Tcp/Ip Settings

    Reference Manual for the Mobile Broadband Router MBR814X • Primary DNS Server, if you entered a Primary DNS address in the Basic Settings menu; otherwise, the router’s LAN IP address • Secondary DNS Server, if you entered a Secondary DNS address in the Basic Settings menu •...

  • Page 83: Using Static Routes

    Reference Manual for the Mobile Broadband Router MBR814X 2. From the main menu, under Advanced, click the LAN IP Setup link to go to the LAN IP Setup page: Figure 7-3 3. .Enter the TCP/IP, DHCP, or Reserved IP parameters.

  • Page 84: How To Configure Static Routes

    Reference Manual for the Mobile Broadband Router MBR814X When you first configured your router, two implicit static routes were created. A default route was created with your ISP as the router, and a second static route was created to your local network for all 192.168.0.x addresses.
  • Page 85 Reference Manual for the Mobile Broadband Router MBR814X a. Click the Edit button to open the Edit menu. Figure 7-5 b. Type a route name for this static route in the Route Name box under the table. This is for identification purpose only.

  • Page 86: Universal Plug And Play (Upnp)

    Reference Manual for the Mobile Broadband Router MBR814X Universal Plug and Play (UPnP) Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.
  • Page 87 Reference Manual for the Mobile Broadband Router MBR814X • UPnP Portmap Table: The UPnP Portmap Table displays the IP address of each UPnP device that is currently accessing the Router and which ports (Internal and External) that device has opened. The UPnP Portmap Table also displays what type of port is opened and if that port is still active for each IP address.
  • Page 88 Reference Manual for the Mobile Broadband Router MBR814X 7-12 v2.0 BETA, January 2006...

  • Page 89: Troubleshooting

    Chapter 8 Troubleshooting This chapter gives information about troubleshooting your Mobile Broadband Router MBR814X. After each problem description, instructions are provided to help you diagnose and solve the problem. For the common problems listed, go to the section indicated. •...

  • Page 90: Power Led Not On

    • Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product. If the error persists, you have a hardware problem and should contact technical support.

  • Page 91: Troubleshooting The Web Configuration Interface

    Reference Manual for the Mobile Broadband Router MBR814X Troubleshooting the Web Configuration Interface If you are unable to access the router’s Web Configuration interface from a computer on your local network, check the following: • If you are using an Ethernet-connected computer, check the Ethernet connection between the computer and the router as described in the previous section.

  • Page 92: Troubleshooting The Isp Connection

    ISP. You can determine whether the request was successful using the browser interface. To check the WAN IP address from the browser interface: 1. Launch your browser and select an external site such as www.netgear.com. 2. Access the main menu of the router’s configuration at http://192.168.0.1.

  • Page 93: Troubleshooting Internet Browsing

    Reference Manual for the Mobile Broadband Router MBR814X • Your ISP may check for your computer's host name. Assign the computer Host Name of your ISP account to the router in the browser-based Setup Wizard. • You have poor wireless coverage.

  • Page 94: Testing The Lan Path To Your Router

    Reference Manual for the Mobile Broadband Router MBR814X Testing the LAN Path to Your Router You can ping the router from your computer to verify that the LAN path to your router is set up correctly. To ping the router from a PC running Windows 95 or later: 1.

  • Page 95: Restoring The Default Configuration And Password

    Reference Manual for the Mobile Broadband Router MBR814X where <IP address> is the IP address of a remote device such as your ISP’s DNS server. If the path is functioning correctly, replies as in the previous section are displayed. If you do not receive replies: •...

  • Page 96: Problems With Date And Time

    The E-mail menu in the Content Filtering section displays the current date and time of day. The MBR814X router uses the Network Time Protocol (NTP) to obtain the current time from one of several Network Time Servers on the Internet. Each entry in the log is stamped with the date and time of day.

  • Page 97: Technical Specifications

    Appendix A Technical Specifications This appendix provides technical specifications for the Mobile Broadband Router MBR814X. Network Protocol and Standards Compatibility Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP, RFC 1483 Bridged or Routed Ethernet Wireless Networking Specifications Wireless Networking Standard 802.11b...
  • Page 98 Reference Manual for the Mobile Broadband Router MBR814X Environmental Specifications Operating temperature: 0° to 40° C (32º to 104º F) Operating humidity: 90% maximum relative humidity, noncondensing Electromagnetic Emissions Meets requirements of: FCC Part 15 Class B Interface Specifications LAN:...

  • Page 99: Appendix B Related Documents

    Appendix B Related Documents This appendix provides links to reference documents you can use to gain a more complete understanding of the technologies used in your NETGEAR product. Document Link Internet Networking and http://documentation.netgear.com/reference/enu/tcpip/index.htm TCP/IP Addressing: Wireless Communications: http://documentation.netgear.com/reference/enu/wireless/index.htm Preparing a Computer for http://documentation.netgear.com/reference/enu/wsdhcp/index.htm...
  • Page 100 Reference Manual for the Mobile Broadband Router MBR814X Appendix B-2 v1.0, January 2006...
