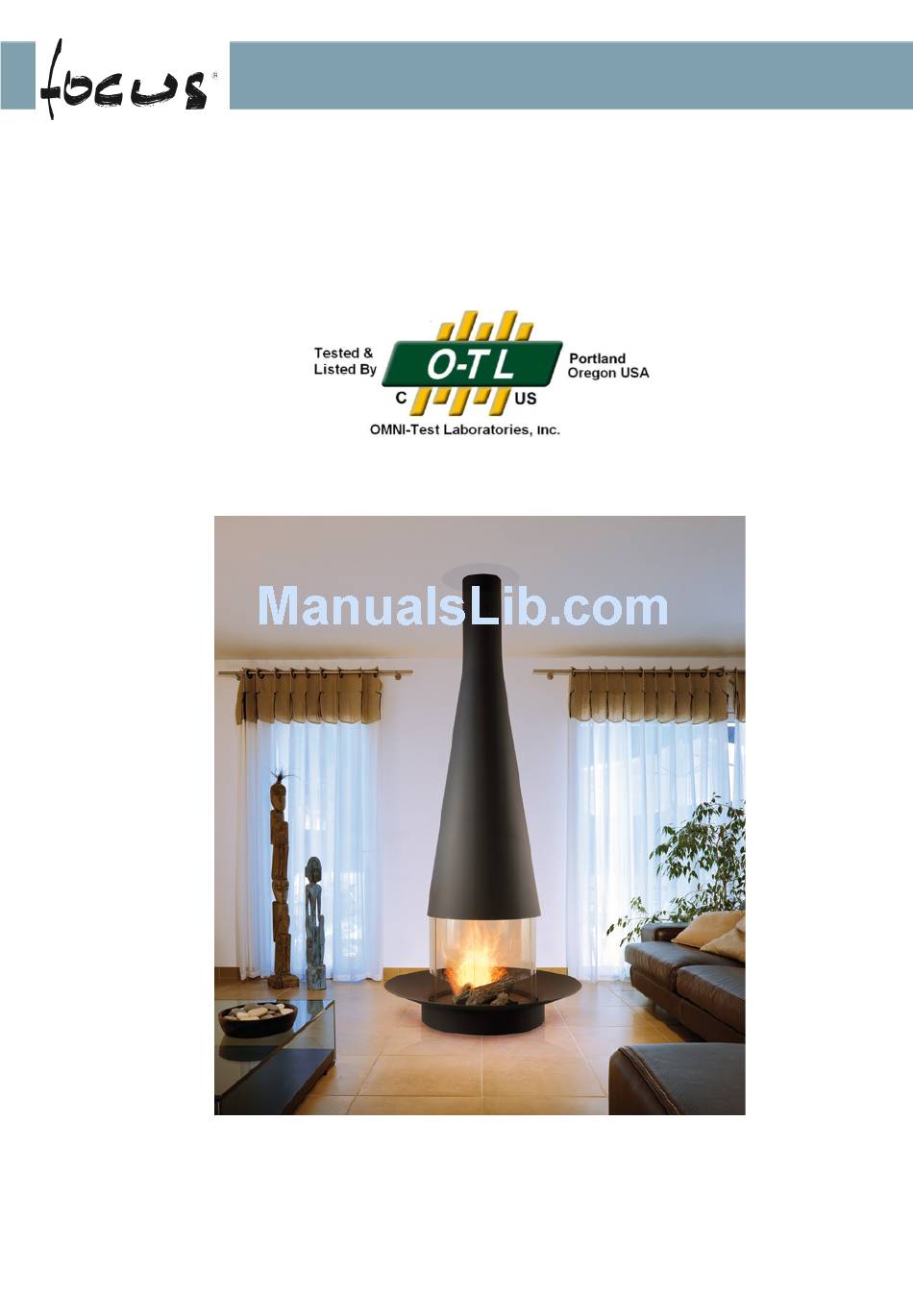

Filiofocus 1600 central version
Design Installation & Operating Manual v.3 EN
Tested by OMNI-Test Laboratories, Inc. and approved to
ULC-S610-M87 (A1998), UL 737-2011 And ULC S627-00
Report Number: 304-F-10-2
US EPA exempt
this document was packed with the appliance.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
Page 1 of 20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Focus Filiofocus 1600
Summary of Contents for Focus Filiofocus 1600
- Page 1 Filiofocus 1600 central version Design Installation & Operating Manual v.3 EN Tested by OMNI-Test Laboratories, Inc. and approved to ULC-S610-M87 (A1998), UL 737-2011 And ULC S627-00 Report Number: 304-F-10-2 US EPA exempt this document was packed with the appliance. KEEP THESE INSTRUCTIONS FOR FUTURE USE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1 – INTRODUCTION 2 – SPECIFICATIONS a) Characteristics b) Roof outlet requirement c) Chimney requirement d) Connectors e) Fresh air intake f) Clearances to combustibles 3 – INSTALLATION a) Included parts, materials and required tools for installation b) Options c) Good to know d) Assembly details... -
Page 3: Introduction
THEY SHOULD BE STRICTLY OBSERVED. Thank you for choosing focus fireplaces. Appliance designation: central windowed filiofocus 1600 Manufacturer: focus - atelier dominique imbert – le fort – 34380 viols le fort – France. 2 – SPECIFICATIONS: - NOT FOR MOBILE HOME OR EXTERIOR INSTALLATION! -
Page 4: B) Roof Outlet Requirement
a) Characteristics: • Hearth 1.12 m (44-3/32-inch) diameter; weight: 70 kg (154 lbs) • Hood weight: 70 kg (154 lbs) • Flue diameter : 219 mm (8-5/8-inch) ; length custom-made • Flue weight : 16 kg per meter (35 lbs per foot) •... -
Page 5: C) Chimney Requirement
STRUCTURE, SLAB, ETC…) MUST BE SIZED IN CONGRUENCE WITH THE FIREPLACE STATIC AND DYNAMIC CHARGES. THE SIZE CALCULATION FOR THE SUPPORT IS NOT THE RESPONSIBILITY OF FOCUS OR ITS AFFILIATES. IT IS YOUR RESPONSIBILITY TO CONSULT WITH AN ENGINEER OR ARCHITECT FOR YOUR PROJECT. d) Connectors:... -
Page 6: E) Fresh Air Intake
(1 mm). Please refer to installation details in this manual. e) Fresh air intake: To balance room air pressure with outdoors air pressure, focus recommends a fresh air intake in the room (ideally emerging under the fire bowl). Fresh air intake shall only take combustion air from outdoors. -
Page 7: F) Clearances To Combustibles
f) Clearances to combustibles: • Clearances to floor and ceiling: CAUTION: THE DISTANCE TO A COMBUSTIBLE WALL MUST BE MAINTAINED AT 34 inches FROM THE GLASSES. PROPERTY DAMAGE OR DEATH CAN OCCUR IF THIS DISTANCE IS NOT MAINTAINED. DRYWALL PRODUCTS LINED WITH PAPER SUCH AS SHEETROCK ARE COMBUSTIBLE. - Page 8 - stainless steel chimney system anchor plate detail : Hearth extensions must be installed only as illustrated. Page 8 of 20...
- Page 9 - focus flue attachment to stainless steel chimney system plate: Page 9 of 20...
- Page 10 To avoid premature aging of your painted walls, only use mineral or acrylic paints. With other paints, above clearances apply. - Focus recommends the integration of the fire bowl in a 3 inches floor recess with 30"-1/2" diameter.
-
Page 11: Installation
- Appliance and designated parts are the fire bowl, grate, suspended hood, black steel flue pipe, anchor plate, 4 curved pyroceramic glass screens, focus kit ( protective glove, mounting gloves, can of touch-up paint), and insulating washers. - Required tools : drill, M8 allen key, level, screw drivers, M12 key, scaffolding, refractory compound. -
Page 12: D) Assembly Details
d) Assembly details : Page 12 of 20... -
Page 13: Operating Instructions
4 – OPERATING INSTRUCTIONS : CAUTION : HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. Never use chemicals or fluids, gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or « freshen up » a fire in this heater. -
Page 14: E) Before Lighting Your First Fire
- to clean off (with a damp sponge and/or a dry cloth) any dirt collected during transport or installation. Actual scratches on painted designs can be retouched solely with the expressly provided focus can. If this is necessary, ventilate the area thouroughly before lighting your fire to disperse any fumes generated in the spraying process. -
Page 15: F) Building, Starting And Maintaining The Fire
Building, starting and maintaining the fire : DO NOT OVERLOAD YOUR FOCUS FIREPLACE TO AVOID OVER- FIRING. Build the fire without elevating it, directly on the fire-dogs, not too close to the glasses. For starting the fire, we recommend using a small amount of fire starter with enough kindling (small logs or mill ends) to establish a primary fire. -
Page 16: G) Protective Glove
CAUTION : CHEMICAL SWEEP NOT PERMITTED: ONLY MECHANICAL SWEEP ALLOWED ! Refering to focus black steel flue : it must absolutly be swept with a nylon brush. Never use metal brushes! Damage caused from non-observance of this caution is not covered under the focus limited warranty. -
Page 17: D) Directions And Reasons For Cleaning Glass
In that case, call a professional chimney sweeper or buy a brush at your local focus retailer and clean the chimney this way : Remove rain cap, use appropriately sized brush and sweep the entire system to remove all debris or refer to chimney manufacturer recommendations. -
Page 18: E) Replacement Parts
Replacement parts: DO NOT USE SUBSTITUTE MATERIALS. For ordering replacement parts, please contact the focus North American exclusive importer : European Home 30 Log Bridge Road Building 300 - Unit 303 Middleton, MA 01949 Tel: 781-324-8383 - Fire-dogs :... -
Page 19: Warranty
6 – WARRANTY: All of our Focus models are guaranteed against any defect in design, construction, or manufacture, and guaranteed to function properly for 5 years from date of order. Our product guarantees are applicable only when our fireplaces have been installed with respect to all local building codes and with strict attention to the technical details outlined in our Plan Study as well as our installation, maintenance, and users manuals. - Page 20 Appendix. How to determine if alternate floor protection materials are acceptable. All floor protection must be non-combustible (i.e., metals, brick, stone, mineral fiber boards, etc.). Any organic materials (i.e., plastics, wood paper products, etc.) are combustible and must not be used. The floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity).
