- Page 1 WATER METERS ‘M’ SERIES WATER METERS INSTALLATION, OPERATION AND MAINTENANCE GUIDE METAL ‘M’ SERIES WATER METER PLASTIC ‘M’ SERIES WATER METER...
-
Page 2: Specifications

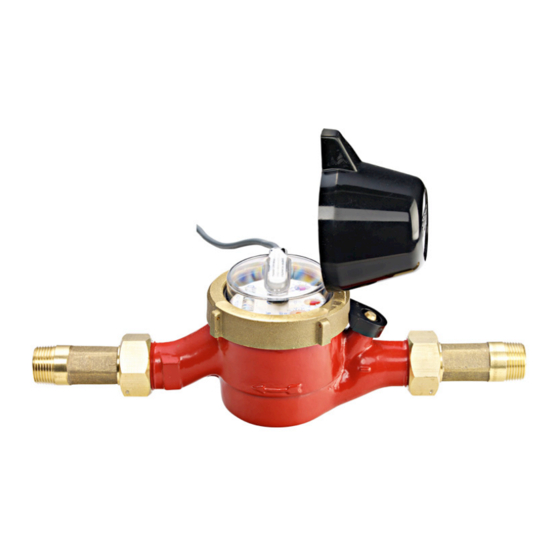

‘M’ SERIES WATER METERS INDUSTRY’S SMALLEST WATER METERS Netafim USA’s ‘M’ Series Water Meters are used as sub-meters for residential or commercial applications and the industry’s smallest multi-jet water meter. The multi-jet principle assures an equally distributed load on the impeller minimizing wear and maintaining accuracy. These meters offer the best cost and performance, long-life flow measurement instruments. - Page 3 REGISTERS REED SWITCH REGISTER The Reed Switch Register is a dry contact or simple switch closure for communicating with control and monitoring equipment. Registers are interchangeable and easily replaced with common tools. They are removable even when the meter is operating. A leak indicator in the center of the dial registers the lowest flow through the meter.
- Page 4 REGISTERS ER (ELECTRONIC) REGISTER Combines standard digital register features with dry pulse output capabilities. Clearly displays the rate of flow and volume readings in Gallons or Acre Feet. Mounted inside an IP68 stainless steel glass encapsulated cap. Multi-line digital LCD readout displays 9 digits for Total Volume in U.S. Gallons (U.S.G.) or Acre Feet and 4 digits for Rate of Flow in Gallons per Minute (GPM).
- Page 5 READING A REGISTER READING A REGISTER - ER (ELECTRONIC) Multi-line LCD digital readout displays 9 digits for Total Volume in U.S. Gallons (U.S.G.) or Acre Feet and 4 digits for Rate of Flow in Gallons per Minute (GPM). It’s programmable to display a variety of volume and flow units for multiple pipe sizes.
-
Page 6: Installation Requirements
7. Installation of a Continuous Acting Air Vent before the water meter is highly recommended to eliminate air and ensure accurate flow readings (see Figure 4). For additional details on air vent options and installation requirements, refer to the Netafim USA Landscape & Turf Catalog. ↑... -
Page 7: Maintenance Requirements
Basket Filter ‘M’ SERIES WATER METER WARRANTY Netafim ‘M’ Series Water Meters are individually tested, calibrated and inspected to ensure they meet the highest quality standards and the testing documents are included with each meter. They also have the industry’s longest warranty. - Page 8 NETAFIM USA 5470 E. Home Ave. Fresno, CA 93727 CS 888 638 2346 www.netafimusa.com 82000-013370 10/17...
