wombat
TM
English user manual
03.2005
© 2004 R82 A/S. All rights reserved.
The R82 logo and the Wombat chair are registered trademarks of R82 A/S.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wombat basic and is the answer not in the manual?

Questions and answers

Related Manuals for R82 wombat basic

Summary of Contents for R82 wombat basic

  • Page 1 English user manual 03.2005 © 2004 R82 A/S. All rights reserved. The R82 logo and the Wombat chair are registered trademarks of R82 A/S.

  • Page 2: Table Of Contents

    CONTENTS Safety ................4 Guarantee ................. 4 Tools .................. 4 Maintenance ..............4 Wombat klar til brug ............5 Adjusting seat and back ............ 6 Height adjustment basic frame .......... 7 Height adjustment upgrade frame ........8 Head support ..............9 Swing-away side supports ..........

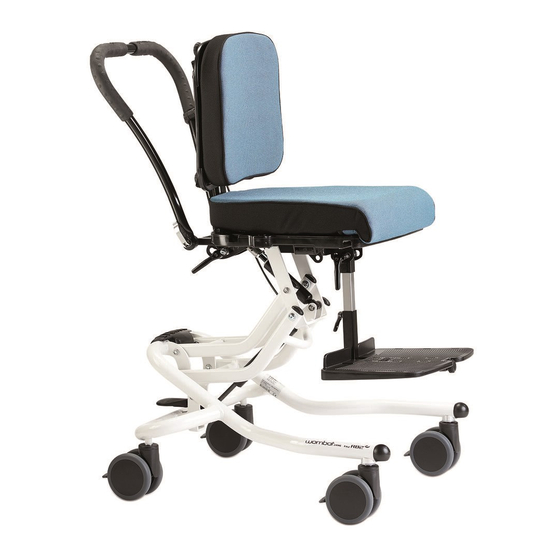

  • Page 3 The Wombat is the activity chair from R82, available in 3 sizes and 2 versions: WOMBAT basic and WOMBAT upgrade The Wombat basic is available with manuel height adjustment or with a gasspring.

  • Page 4: Safety

    The Wombat is guaranteed for 12 months. The guarantee is only valid when using original R82 spare parts and fittings. All special adjustments must be made by R82. R82 will not be held responsible for damage or injury caused by use of non-original parts or repairs made by a non-authorized R82 person.

  • Page 5: Wombat Klar Til Brug

    WOMBAT READY TO Wombat Basic: When you unpack your Wombat, you will find the back of the chair packed separately. Begin by removing the frame from the box. Loosen handle (A) on the central bar. Release handle (B) under the right-hand side of the seat so the seat can be raised.

  • Page 6: Adjusting Seat And Back

    (A), located below the seat. Tip away the safety device (B) before pushing the release handle. The angle of the Wombat Basic seat is adju- stable by turning the handle (C), located below the seat.

  • Page 7: Height Adjustment Basic Frame

    The Wombat basic frame is height adjustable either manual or with gasspring. The Wombat basic with manual ajdustment: To adjust the Wombat basic in height, loosen the grip (A). Adjust the height and fasten at the wanted position. The Wombat basic with gasspring: To adjust the frame height with a gasspring, push down the release handele (B) below the seat.

  • Page 8: Height Adjustment Upgrade Frame

    HEIGHT ADJUSTMENT UPGRADE FRAME The Wombat upgrade frame is adjustable either with gasspring or with an electrical motor. The Wombat upgrade with gasspring: The height is adjustable -from floor to table- height. When preasuring the footpedal (A) the height is adjusted. The footpedal is equipped with a security knob (B).

  • Page 9: Head Support

    HEAD SUPPORT The head support is mounted in the back of the chair and is fastened with the finger screw (A). Use the enclosed 5 mm Allen key to loosen the screws (B) and to adjust the head support. Angle the head support further by loosen the screw (C).

  • Page 10: Swing-Away Side Supports

    SWING-AWAY SIDE SUPPORTS Wombat size 1+2: Remove the back cushion and mount the side support in the slots in the back, using the enclo- sed screws and the 5 mm Allen key (A). Do not use the long screws. Push down the red button (B) to swing-away the side support.

  • Page 11: Armrest And Tray

    ARMREST AND TRAY Mount the armrest fitting in the side of the seat and adjust sideways. Fasten with the finger screws below the seat (A). The armrests are heightadjustable by loosen the knob (B). Turn the knob counter clockwise to loosen.

  • Page 12: Hip Supports

    HIP SUPPORTS Use the enclosed 5 mm Allen key to mount the hip supports in the seat (A). Wombat size 3 offers two different fitting options for hip supports. Loosen the two screws (B) and (C) to adjust the hip supports all round. Fasten with the enclosed 5 mm Allen key.

  • Page 13: Swing-Away Knee Supports

    SWING-AWAY KNEE SUPPORTS The knee supports are mounted in the side of the seat and fastened with two 4 mm screws below the seat (A). Use the 5 mm Allen key to loosen the screw (B) and angle the knee supports. Angle the cushion on the knee support by using the 4 mm Allen key and loosen the screw (C).

  • Page 14: Foot Rest

    FOOT REST As standard, the Wombat is delivered with foot rest. It is possible to dismount the foot rest - an advantage when using the Wombat at floor height. Further the foot plate can be adjusted in height. Use the enclosed 4 mm Allen key to loosen/fasten (A).

  • Page 15: Vests And Belts

    VESTS AND BELTS The Wombat can be equipped with various vests and belts. To ease the mounting, the Wombat is equipped with two 40 mm and two 25 mm buckles below the seat and four 25 mm buckles on the back. HELPERS HANDLES Mount the handles on the back of the seat and tip up/down when needed.

  • Page 16: The Sitting Comfort Of The Back Cushion

    THE SITTING COMFORT OF THE BACK CUSHION Optimum sitting comfort is very easily gained in the Wombat chair, using the velcro sheeted wedges. 1) Open the velcro sealings at the top and sides of the cover (A) and turn the cover complete or partly in side out.

  • Page 17: The Sitting Comfort Of The Seat Cushion

    THE SITTING COMFORT OF THE SEAT CUSHION Optimum sitting comfort is very easily gained in the Wombat chair, using the velcro sheeted wedges. 1) Open the velcro sealings at the front and sides of the cover (A) and turn the cover complete or partly in side out.

  • Page 18: Product Identification

    PRODUCT IDENTIFICATION WOMBAT Basic A) Serial number WOMBAT basic: The label is placed on the inside of the frame just above left rear wheel. WOMBAT upgrade: The label is placed on the inside of the frame just above left rear wheel.

  • Page 19: Measurements

    WOMBAT Basic WOMBAT Upgrade MEASUREMENTS Wombat basic Wombat basic Wombat upgrade Wombat upgrade Wombat upgrade Size 1 Size 2 Size 1 Size 2 Size 3 cm (inch) cm (inch) cm (inch) cm (inch) cm (inch) Seat depth (SD) 16-29 (6¼-11¼") 23-36 (9-14")

  • Page 20: Accessories

    See special brochure Swing-away side supports See special brochure TECHNICAL DATA Seat: ABS: Acrylonitrilbutadienstyren. (Recyclable) Cushions: Fireretardent, foam Cover: Fireretardent, 100% trevira CS Frame: Powderpainted steel DISTRIBUTOR PRODUCER R82 A/S Parallelvej 3 8751 Gedved Denmark Please find your distributor on www.r82.com...

  • Page 21: Care And Maintenance

    Accessories or available spare parts which are broken can be forwarded to R82 for repair. If fault in the fundamental parts, the whole chair need to be returned to R82 for repair. R82 will not be held responsible for damage or injury caused by use of non-original parts or repairs made by a...

  • Page 22: Stain Removal Guide

    STAIN REMOVAL GUIDE BLOOD Wasoff blood with cold water. If this fails to help, add a neutral kitchen detergent. Remove as much as possible with absorbent paper. Clean with 20% denatured alcohol and wash with water to which a neutral kitchen detergent has been added. CHOCOLATE AND CONFETIONARY Dab with lukewarm water GRASS AND VEGETABLES...
