HANDBOOK FNES 907 BTH XS
9925099 110.0044.369

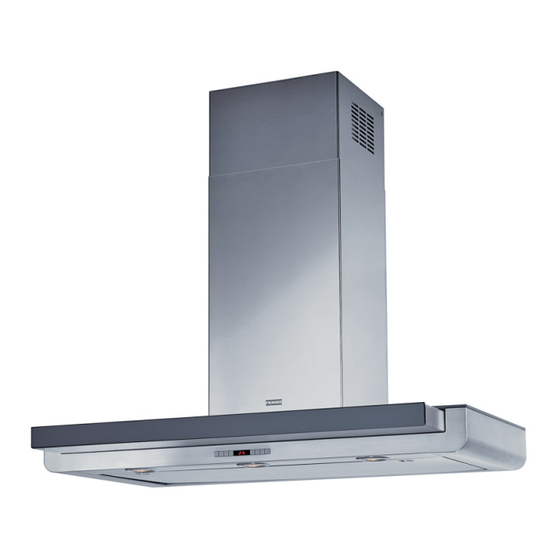

WALL MOUNTED HOOD
FLOW RATE 850/800 M3/H
TOTAL POWER WATT 400 W
no 01 motor 240 w
SPEED NO 04 speed + boost
NR 03 halogen lamps X 20 W each one
Sliding carriage
Delay – Enables automatic shutdown of the Motor, the Fans and the
Lighting with a 30' delay.
Turns the lighting system on and off. Press for 2 Seconds to allow an
optional additional appliance to be turned on and off. Turns the reduced
intensity lighting system on and off.
Starts the Motor at a speed that allows suction of 100 m3/h for 10 minutes
per hour for 24h, after which the Motor will stop.
CHARCOAL FILTER and GREASE FILTER ALARM
updated JANUARY 2010
