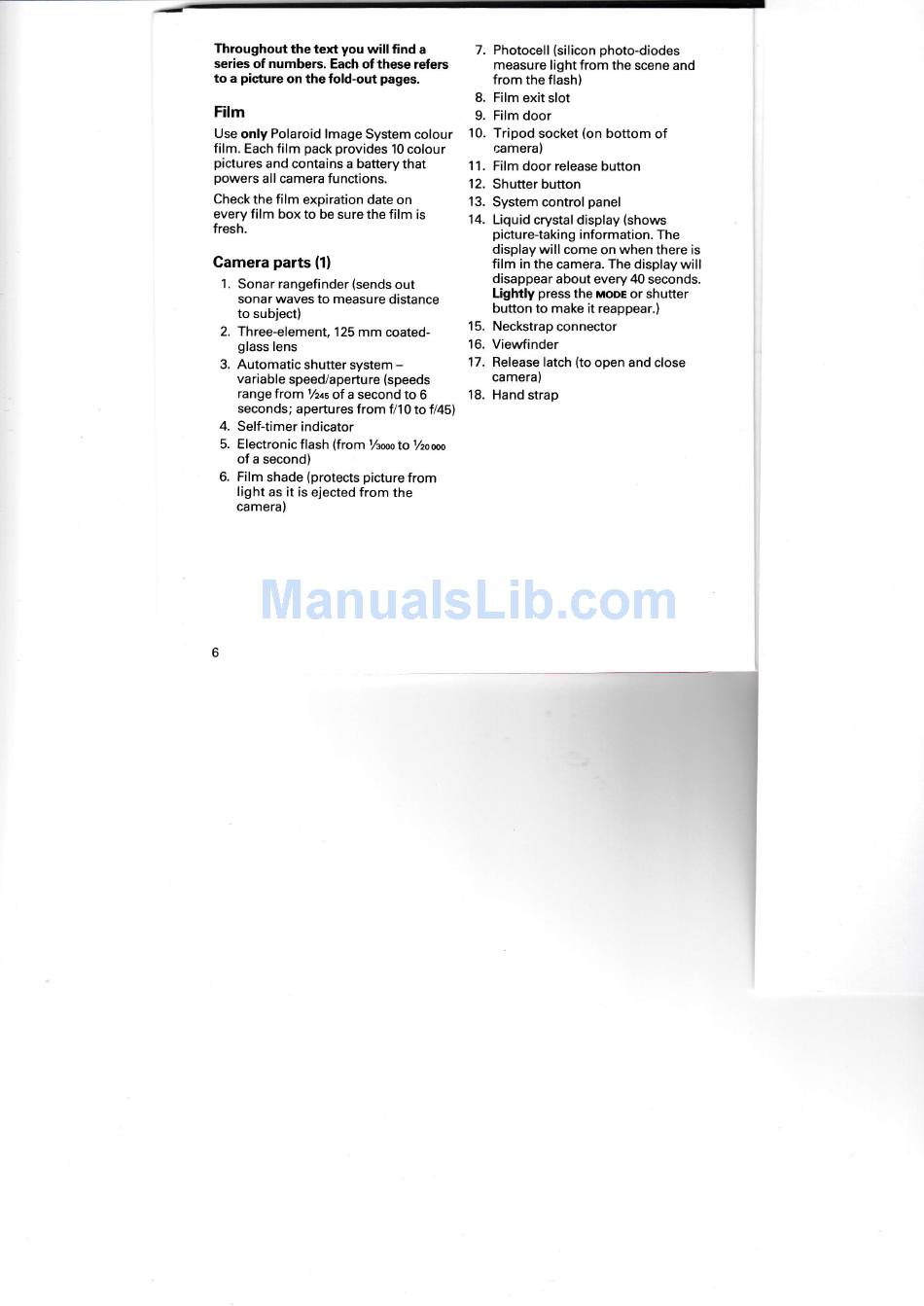

Camera Parts - Polaroid image pro User Manual

Throughout
the
text you will find
a
series
of numbers,
Each
of
these refers
to
a
on
the fold-out
pages.
Film
Use
only
Polaroid lmage System colour
film.
Each
film
pack provides
10
cofour
pictures
and contains
a
batterythat
powers
all
camera functions.
Check the
film expiration
date on
every
film
box
to
be sure the
film
is
fresh.
Camera
parts
(1)
1.
Sonar rangefinder
(sends
out
sonar waves
to
measure distance
to subject)
2.
Three-element,
125
mm
coated-
glass lens
3. Automatic
shutter
system
-
variable speed/aperture (speeds
range
from
1/z¿s
of
a
second to
6
seconds; apertures from
f/1 0
to f/45)
4.
Self-timer indicator
5.
Electronic flash (from 1/woto
1/zoqo
of
a
second)
6. Film shade (protects picture
from
light
as
it
is
ejected from
the
camera)
7. Photocell (silicon photo-diodes
measure light from the
scene and
from the flash)
8.
Film exit slot
9.
Film door
10. Tripod
socket (on
bottom of
camera)
1
1.
Film door
release
button
12.
Shutter buüon
13.
System control panel
14. Liquid crystal display (shows
picture-taking information.
The
display
will
come
on
when there
is
film
in the
camera. The
display
will
disappear about
every 40 seconds.
Lightly
press the
MoDE
or shutter
button to
make
it
reappear.)
15.
Neckstrap connector
16. Viewfinder
17.
Release
latch (to
open and
close
camera)
18.
Hand strap
