JMC Soundboard

User Manuel

Table of Contents

Need help?

Do you have a question about the Soundboard and is the answer not in the manual?

Questions and answers

Summary of Contents for JMC Soundboard

Page 1 JMC Soundboard User Manuel...

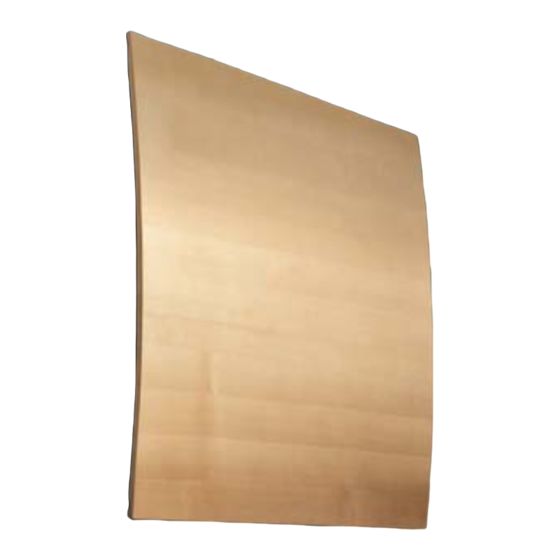

Page 3 JMC Soundboard, the loudspeaker made out of tonewood...
Page 4 D’autres langues disponibles online ou sur demande au siège. Andere Sprachen erhältlich online oder auf Anfrage beim Sitz der Firma.
Page 5: Table Of Contents
Table of contents Page Introduction Choosing the location of your Soundboard Installing your Soundboard Connecting your Soundboard 10-13 Selecting the audio system Caring for your musical instrument Technical data Frequently Asked Questions 17-18 Repairs and warranty Deliveries and returns Contact www.jmclutherie.com...
Page 6: Introduction
Introduction The JMC Soundboard is a full-ﬂedged musical instrument stemming from 21 century lutherie techniques. It is thus very important to take great care of it, in terms of packaging (resonance spruce is very soft and thus easily marked); humidity (at least 40%); and exposure to sources of heat (avoid placing it near a ﬁreplace, a radiator or positioning it behind a window in direct sunlight).
Page 7: Choosing The Location Of Your Soundboard
Soundboard wave Twin-loudspeaker wave The Soundboard works well whatever the size of the room in which it is used. While it is extremely effective in a large living room, it can also ﬁll spaces of up to 400 m in music listening situations. One may of course also opt to install several Soundboards.
Page 8: Installing Your Soundboard
Soundboard may also be placed on a dedicated stand. The Soundboard should ideally be placed between 1.2 and 1.5 m above ground level (ﬁxing it too high might make you lose the sense of companionship you establish with it).
Page 9 8. Remove the protective rails, and slide the female part of the ﬁxation located on the back of the JMC Soundboard into the ﬁxation element on the wall until it is completely ﬁxed. Insert the speaker cable plugs into the JMC Soundboard. It is recommended to connect the cable before attaching the JMC Soundboard against the wall, because access to the rear can become difﬁcult at a later stage...
Page 10: Connecting Your Soundboard
Now that the Soundboard is plugged in, check that the cables are not touching the cover. If this is the case, you can hold the cables together with a dedicated grip. You can now switch on your amp and listen to your favourite music.
Page 11 Standard installation Connection diagram single (stereophonic) Soundboard Impedance 8 to 16 Ohms The Soundboard is a single stereophonic loudspeaker and two loudspeaker cables must therefore be plugged into the Soundboard (as if there were two traditional loudspeakers). www.jmclutherie.com Page | 11...
Page 12 The amp must be able to handle a 4-Ohm impedance. If such is not the case, opt for the installation suggested on the next page. Connecting both sides of the Soundboard in parallel (side-by-side) as shown above or in series (end-to- end) means it operates in monophonic mode and one can thus place two Soundboards in a room like a pair of speakers.
Page 13 Special installation 2 Connection diagram for two Soundboards in stereo/bridged operation. Impedance 16 Ohms Here, in series (end-to-end), the two loudspeaker cables must be plugged into the Soundboard with the cables crossed. www.jmclutherie.com Page | 13...
Page 14: Selecting The Audio System
« Thank you very much for the quick delivery. Installing it was so simple that I did it myself: with just four screws, the Soundboard was secured to the wall. The sound is incomparable and ﬁlls the entire room, covering the entire spectrum from treble to bass notes. Complex sounds are extremely accurate and detailed.
Page 15: Caring For Your Musical Instrument
Caring for your musical instrument The membrane of this speaker has been crafted from over 350-year resonance spruce using lutherie techniques. It is glued and varnished with varnishes that do not perturb the vibration. It is important to care for it like a musical instrument - which means it must not be installed near a source of heat, i.e.
Page 16: Technical Data
890 mm x 890 mm x 210 mm Fixture Central mount, secured to the wall by four screws. The Soundboard may be placed either ﬂat or in a corner. Anchorage Approx. 1.2 m to 1.5 m from ﬂoor level Weight 15 kg (depending on the model) Ampliﬁer power...
Page 17: Frequently Asked Questions
The Soundboard generates an omnidirectional wave. Listeners can be near, far or even in another open space, and they can perceive the music on the same level of quality. The Soundboard is crafted in the tradition of musical instruments that actually play music for us. The impression is that of a concert, with a powerful presence, precision and a well-rounded sound.
Page 18 Where is the resonance chamber? One can in fact see the all piece as a resonance chamber, and the Soundboard plays the role of a vibrating membrane. Despite what one reads on the topic of resonance chambers which are said to amplify sounds, they in fact mostly serve to enable listeners to hear all the frequencies emitted by the soundboard by reducing the acoustic short-circuit inherent to the moment when a membrane begins to vibrate.
Page 19: Repairs And Warranty
(scratches or fading), damage resulting from improper maintenance, nor damage due to indirect causes or negligence. The customer must inform JMC Lutherie SA in writing and in detail of any potential hidden ﬂaw within 15 days of taking delivery of the goods. If such a report is not received, the product is considered to be exempt from any such ﬂaws.
Page 20: Deliveries And Returns
Vallée de Joux, Switzerland. User Manual JMC Soundboard - version 4.1 / 01-2017 Copyright © 2017 JMC Lutherie SA. All rights reserved. The total or partial reproduction of this publication is prohibited in any form whatsoever without the written permission of JMC Lutherie SA. The most recent version is available at www.jmclutherie.com.
Page 21: Contact
Contact JMC Lutherie SA Route de France 6 CH - 1348 Le Brassus Switzerland T +41 21 845 56 10 F +41 21 845 56 30 info@jmclutherie.com www.jmclutherie.com www.jmclutherie.com Page | 21...
