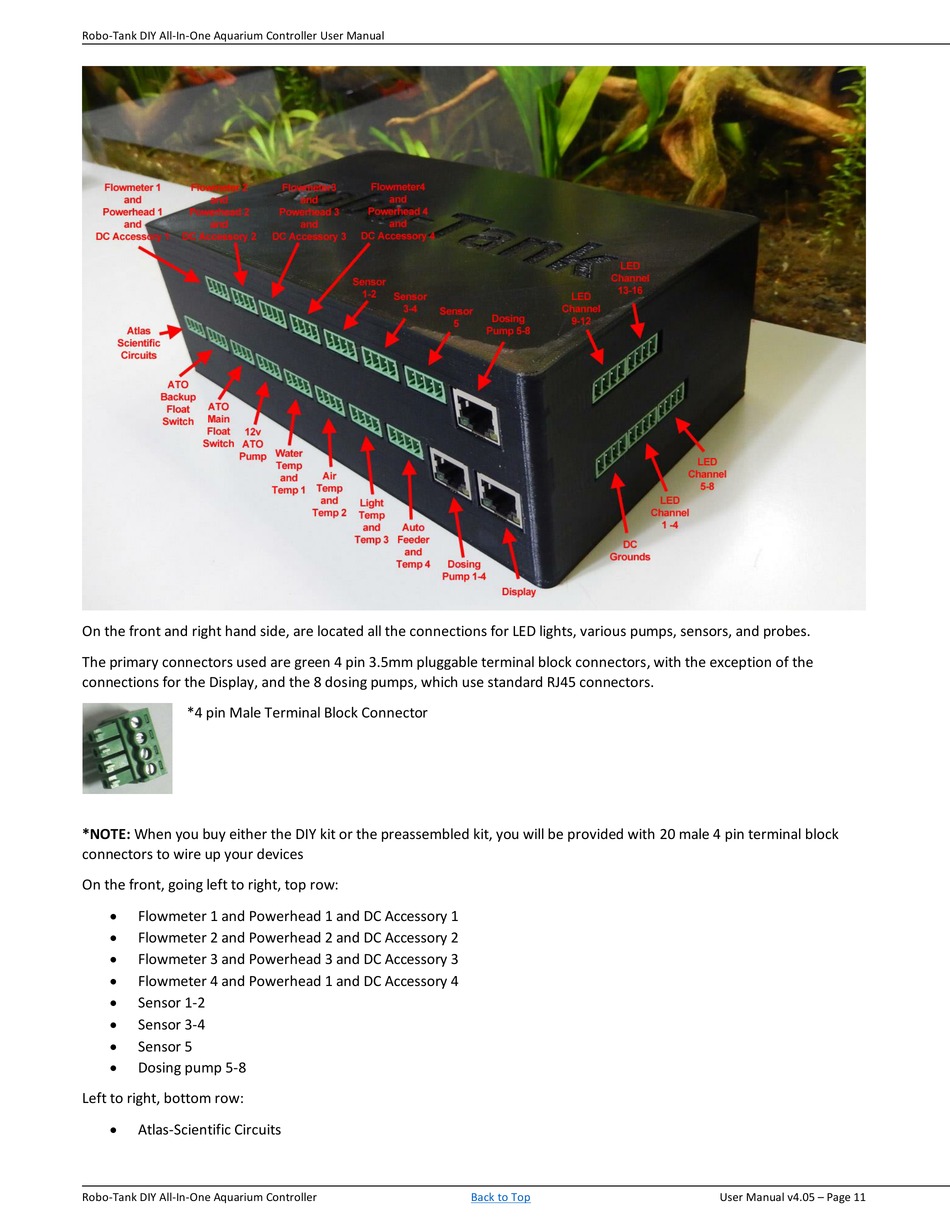

On the front and right hand side, are located all the connections for LED lights, various pumps, sensors, and probes.
The primary connectors used are green 4 pin 3.5mm pluggable terminal block connectors, with the exception of the
connections for the Display, and the 8 dosing pumps, which use standard RJ45 connectors.
*4 pin Male Terminal Block Connector
*NOTE: When you buy either the DIY kit or the preassembled kit, you will be provided with 20 male 4 pin terminal block
connectors to wire up your devices
On the front, going left to right, top row:

Flowmeter 1 and Powerhead 1 and DC Accessory 1

Flowmeter 2 and Powerhead 2 and DC Accessory 2

Flowmeter 3 and Powerhead 3 and DC Accessory 3

Flowmeter 4 and Powerhead 1 and DC Accessory 4

Sensor 1-2

Sensor 3-4

Sensor 5

Dosing pump 5-8
Left to right, bottom row:

Atlas-Scientific Circuits
