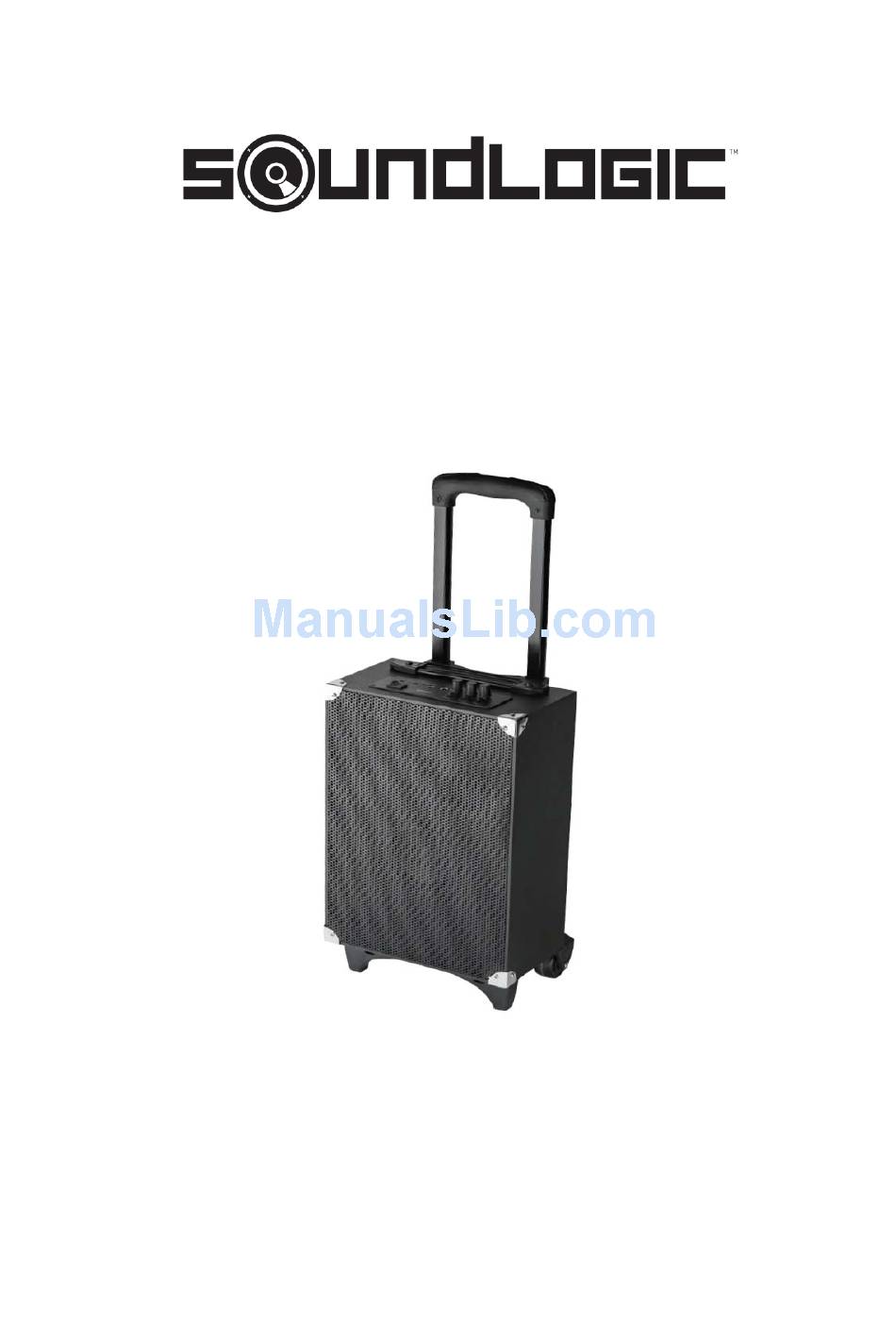

- Page 1 CAB‐92080 Tailgate Wireless Speaker System INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE ...
-
Page 2: Getting Started
Getting Started Remove the unit from the box. Remove any packaging from the product. Please retain all packaging after you have checked and counted all the parts and the contents against the list. Package Contents Bluetooth portable speaker AC/DC power adapter Aux‐in cable Instruction Manual Product Features Blast your music anywhere, anytime you want Powerful speaker system for iPhone, iPad, iPod, Android smart phones, MP3 players and other audio devices Streams music from any Bluetooth enabled devices Perfect for parties, BBQ’s and more Microphone mic input x 2 Built‐in Aux jack Built‐in rechargeable battery Speaker includes rugged wheels and telescoping handle SAFETY INSTRUCTIONS Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. ... - Page 3 Description of Parts Location of Controls ...
-
Page 4: Mic Volume
1 DC IN 8 ECHO 2 CHARGE INDICATOR 9 MAIN VOLUME 3 AUX IN 10 POWER ON/OFF SWITCH 4 LED INDICATOR 11 SOURCE BUTTON 5 MIC INPUT 1 12 PLAY/PAUSE BUTTON 6 MIC INPUT 2 13 PAIR BUTTON 7 MIC VOLUME INSTRUCTIONS FOR USE Charging the Tailgate Bluetooth Speaker For best results, fully charge the unit before use. 1. Connect the provided adapter to the DC IN of the speaker and plug the adapter to a wall port. 2. While charging, charge indicator turns RED in POWER ON mode, and it will turn ORANGE when fully charged. Note: Before using the unit for the first time, please charge it for around 5 hours or until the charge indicator turns ORANGE. ... - Page 5 speaker. Listening to Wireless Music Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the speaker to stream wireless music. Once it is paired, play music from your device. Function Operation Button Increase / Playing music Turn MAIN VOLUME knob located on the control panel to adjust Decrease Volume the volume to your desired level, or Adjust volume from the source device. Pause Playing music Short press PLAY/PAUSE button once to pause music Play ...
-
Page 6: Using The Microphone
Using the Microphone 1. Turn on the speaker. 2. Insert the plug of the Microphone (not included) into the MIC INPUT 1 or 2 of the speaker. 3. Turn on the Microphone, and speak for microphone operation or sing for Karaoke operation. 4. Turn MIC VOLUME (and ECHO knob) to adjust the desired level (and echo output) respectively. Care and maintenance Clean the unit with a soft, dry cloth. Never use chemicals or hard abrasives. Keep this unit away from wet or damp surroundings. Product Specifications: Bluetooth version : 2.1 + EDR Speaker output : 10 Watts Unit size : 18.8” x 11.3” x 7.9” Unit weight : 17.9 lb Power supply : AC/DC adaptor (Input: AC 100‐240V 50/60Hz 0.5A, Output: DC 9V 1300mA centre positive) Bluetooth range : 27 ‐ 33 Feet Built‐In Rechargeable Battery: ... - Page 7 FCC Instructions Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled This equipment should be installed and operated with minimum distance 20cm environment . between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ...
- Page 8 effective only if the product is purchased and operated in USA and Canada, and does not extend to any units which have been used in violation of written instructions furnished by manufacturer or to units which have been altered or modified or, to damaged products or parts thereof which have had the serial number removed, altered, defaced or rendered illegible. WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for manufacturer any other liability in connection with the sale of our products. There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no circumstances will Manufacturer’s / Distributor’s maximum liability exceed the retail value of the product. WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will be either repaired or replaced with a reconditioned comparable model (at manufacturer's option). The repaired or replacement product will be in warranty for the balance of the 90 day warranty period and an additional one‐month period. No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group Customer Service at info@mtradinggroup.com or by calling 1 (866) 815‐4714, Monday to Friday 10am to 6pm EST. NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming shipment. As a precautionary measure, carefully package the product for shipment, and insure it with the carrier. Be sure to ...
