Summary of Contents for Iron-A-Way NE-42

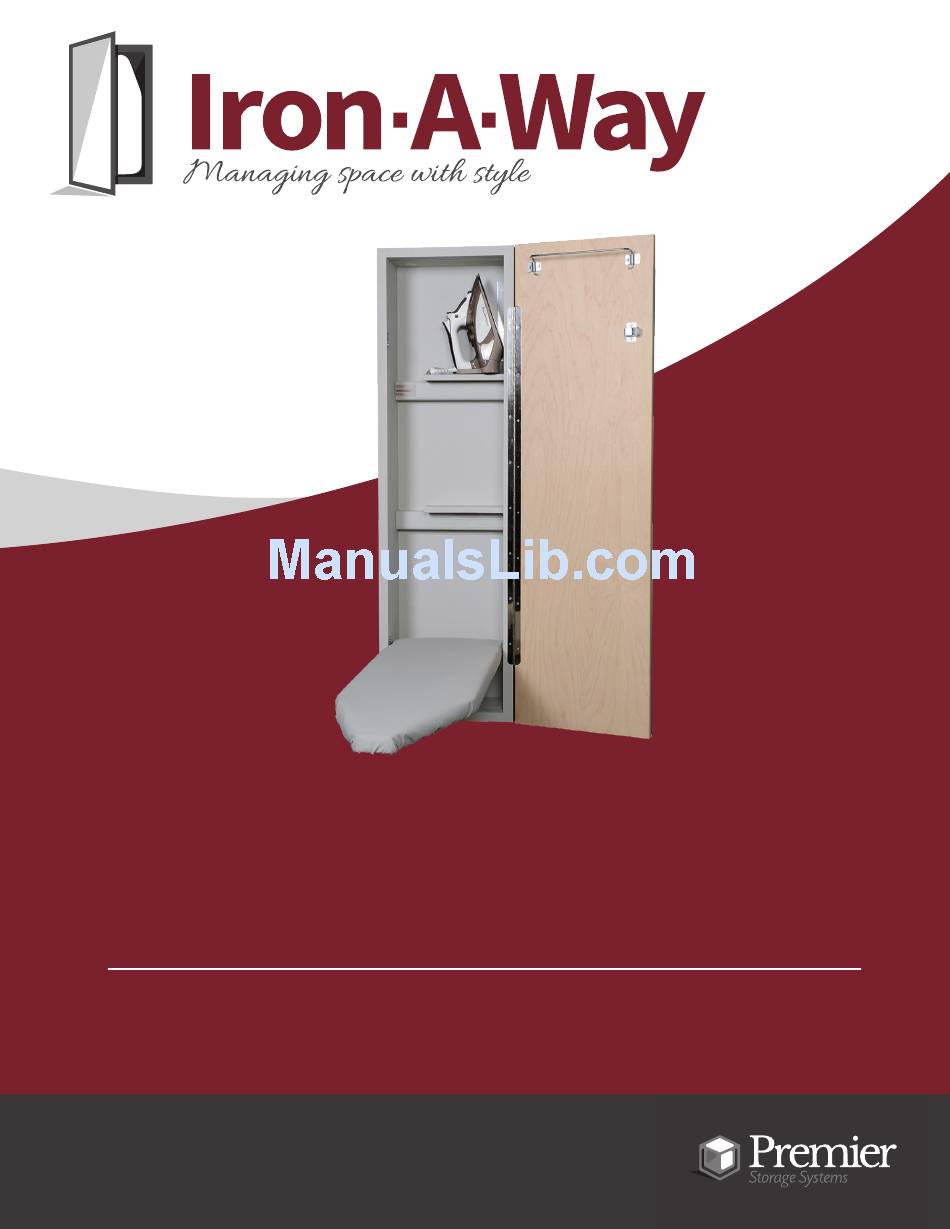

- Page 1 Installation Manual MODEL NE-42...
- Page 2 GET TO KNOW YOUR UNIT 1. CROSS BRACES Tools Needed: Supplied Parts: Recessed Mounting: - Stud Finder - 1/4” Nut Driver - Four #10 x 1 ” wood screws for top (optional) - 12-14” Level portion of cabinet - Safety Glasses - Tape Measure - Two #14 x 2 ”...
- Page 3 PRE-INSTALLATION 1. DETERMINE MOUNTING HEIGHT Mounting Using the charts provided, determine Desired Ironing Height Above the mounting height above floor (the Board Height Floor distance between the floor and the 29” 36” bottom of the cabinet). First choose 28” 35” your desired ironing board height from the left column, then locate the 27”...
- Page 4 3. ENSURE ADEQUATE SPACE Refer to provided chart to ensure adequate clearance for ironing. The cabinet door opens at 180 degrees; allow 16” from side of cabinet for door to fully open. NE42 Distance from wall to tip of ironing board 42”...
- Page 5 RECESSED INSTALLATION Note: Instructions based on installation between 16” on-center studs. 1. CUT WALL OPENING 3. PRE-DRILL HOLES Cut an opening into wall using the Your unit will be attached to the studs unit dimensions below: by screws in the upper and lower sides of the cabinet.
- Page 6 4. INSTALL UNIT INTO WALL 6. FINISH INSTALLATION Begin installation by carefully lifting Finish installation by inserting the unit into the wall opening. #14 x 2 ” screws in bottom pre-drilled holes. Make sure the cabinet is plumb and level. If needed, add shims to help 7.
- Page 7 Surface Mount Installation 1. PREPARE CABINET 4. PARTIALLY INSERT SCREW Screws will be drilled through the Partially insert one #14 x 4” upper and lower cross braces inside screw in the upper cross brace. the cabinet. Determine location of screws, ensuring that the location of 5.
