RADIO CONTROLLED
DESCRIPTION OF PARTS
PROJECTION CLOCK
WITH DIGITAL THERMOMETER
MODEL : RM328P / RM328PU
Instruction Manual
INTRODUCTION

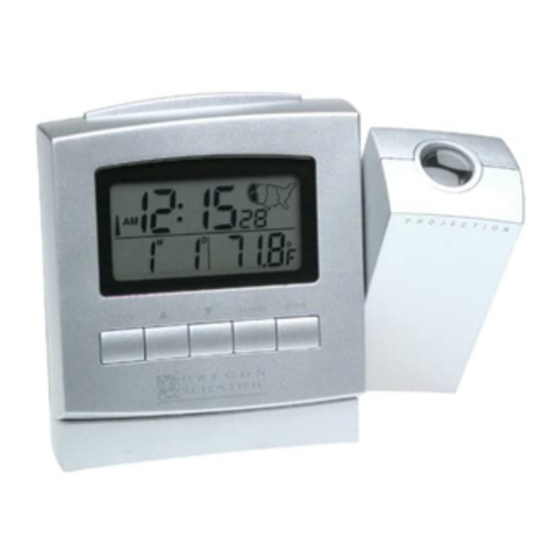

Congratulations on your purchase of the RF Projection Clock with
Temperature Display RM328P (RM328PU) .
The RM328P is a multifunction (RF) controlled clock. It can
automatically synchronize its current time and date when brought
within an approximate 1500 km radius of the radio signal DCF77
generated from Frankfurt, Germany (the UK version from MSF
Rugby, England).
To facilitate nighttime reading, the unit comes with a projector that
can cast large, clear clock-time figures onto flat surfaces in dark. It
also has a back light for easy reading of the display.
Other features of the RM328P include: displaying the current indoor
temperature, a current date display, daily crescendo alarm with eight-
minute snooze function, and extra-large display.
1
Advertisement
Table of Contents
Related Manuals for Oregon Scientific RM328P
Summary of Contents for Oregon Scientific RM328P
- Page 1 Congratulations on your purchase of the RF Projection Clock with Temperature Display RM328P (RM328PU) . The RM328P is a multifunction (RF) controlled clock. It can automatically synchronize its current time and date when brought within an approximate 1500 km radius of the radio signal DCF77 generated from Frankfurt, Germany (the UK version from MSF Rugby, England).
-
Page 2: Battery Installation
A Two-line LCD ] IMAGE ROTATION knob Displays the time, date, alarm status and temperature 90° (left or right) image rotation ] Battery-Low icon N FOCUS Knob Lights up when batteries are running dry Adjusts the focus of the projection ] Radio-Reception Signal O 180°... -
Page 3: How To Use The Projector
Projector Features Feature Effect Instructions Adjustable Rotates 180° to cast Adjust by turning forwards Projector image onto any wall or backwards, the projector so that the projection lens is pointed in the appropriate direction FOCUS Focuses image Rotate knob forwards or Knob backwards until the image Note: Under normal circumstances, the batteries are good for... -
Page 4: About Radio Reception
(UK version within a 1500km radius of radio signal (MSF) from Rugby, England) Note: Making sure the voltage is correct, plug the other end of When the batteries are first installed, the RM328P (RM328PU) will the power adapter into a free wall socket. automatically search for a radio signal. - Page 5 When the reception is complete, the radio-reception signal will stop The day-of-the-week is displayed as an abbreviation in five languages. blinking. Day-of-the-week Interference Language Monday Tuesday Wed. Thursday Friday Saturday Sunday Reception can be affected by a number of factors. For best reception, place the device away from metal objects and electrical appliances.
- Page 6 3. The alarm is automatically activated. To deactivate it, press ALARM once. If the RM328P (RM328PU) is taken outside of the range of Frankfurt DCF77 radio signal it will need to be manually set (the UK version from MSF Rugby, England).
-
Page 7: Indoor Temperature
INDOOR TEMPERATURE for time and 06:00am for the alarm). The temperature is shown in Centigrade (°C). The RM328P The button is required only when the unit is not operating in a (RM328PU) is capable of measuring temperatures within the -5°C favorable way, such as in the rare case of a malfunction. -
Page 8: Specifications
General Specification SPECIFICATIONS Battery Type : Two (2) UM-3 or “AA” size Operating Temperature : 5° C to 50° C Alkaline 1.5V battery Unit Dimension : 116 x 150 x 42 mm (H x W x D) Unit Weight : 240g (without battery) Clock Functions Radio Control : Auto synchronize current time and...
