Instruction Manual
전자
강영구
15-04-15
Full HD

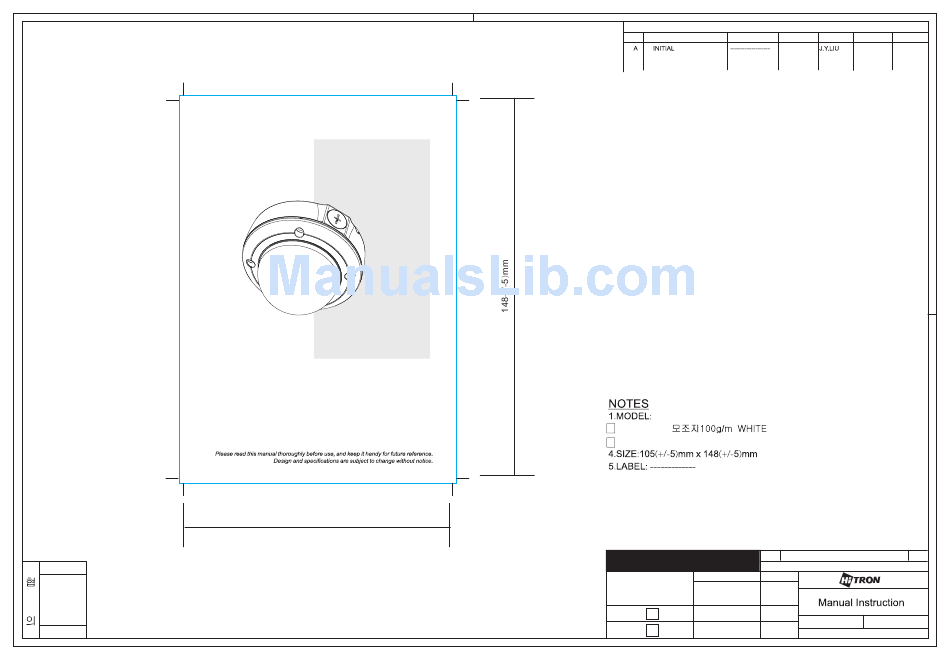

Dome Camera
3-AXIS INFRARED-LED
PLASTIC DOME CAMERA
105(+/-5)mm
PRODUCTION RELEASE & REVISION
REV
DESCRIPT'N/BUYER
DWG No
PARTS No. BY
50303906
HDGI-N31NPV2S9D/NoBrand
2
2.MATERIAL:
3.COLOR: BLACK
50303906
ITEM
UNLESS OTHERWISE SPECIFIED
APPROVALS
DATE
ALL DIMENSIONS ARE IN MM.
- TOLERANCE
LABEL
+/- 3
MANUAL
+/- 5
K.H.JUNG
15-04-15
GUIDE
+/- 5
MATERIAL
CHKED
2
M.J.KWON
15-04-15
COLOR
DRAWN
3
J.Y.LIU
15-04-15
CHK
DATE
M.J.KWON
15-04-15
DESCRIPTION/MATERIAL
QTY
PARTS LIST
TITLE
SIZE
REV.
A
A4
SCALE
DO NOT SCALE
Advertisement
Related Manuals for Hitron HDGI-N31NPV2S9D
Summary of Contents for Hitron HDGI-N31NPV2S9D
- Page 1 DESCRIPT’N/BUYER DWG No PARTS No. BY DATE 50303906 M.J.KWON 15-04-15 Instruction Manual Full HD Dome Camera 3-AXIS INFRARED-LED PLASTIC DOME CAMERA HDGI-N31NPV2S9D/NoBrand 2.MATERIAL: 3.COLOR: BLACK 105(+/-5)mm 50303906 ITEM DESCRIPTION/MATERIAL 전자 PARTS LIST UNLESS OTHERWISE SPECIFIED APPROVALS DATE ALL DIMENSIONS ARE IN MM.
- Page 2 Instruction Manual Full HD Dome Camera...
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. . Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 CONTENTS & PACKAGE BASE INSTALLATION VIDEO OUT CHECK LENS ADJUSTMENT DC AUTO IRIS LENS...
- Page 6 The 1/2.8" 2.4M HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. 1/2.8" 25/30 fps @ 1080p BLC (Back-light compensation) Auto and manual white balance modes (ATW/AWC/Manual/AWB) DWDR 30 EA, 850nm IR LED HSBLC...
- Page 7 (IR Model 5 Watts) BNC connector used to connect the camera to a DVR, etc. Switch Cable : -Green & Black : open -> AHD signal BNC output -Green & Black : short -> CVBS signal BNC output...
- Page 10 1/2.8" CMOS 2.8 - 12mm 2.8mm : 109˚ 12mm : 37.8˚...
- Page 11 BACKLIGHT WHITE BAL SENS-UP D-WDR <BACKLIGHT> <WHITE BAL> <DAY&NIGHT> AWC->SET HSBLC INDOOR OUTDOOR MANUAL <EXIT> SHARPNESS CAM TITLE SAVE& END MONITOR RESET NOT SAVE D-EFFECT VIDEO OUT RETURN DEFECT DET LANGUAGE COMET RETURN...
- Page 12 ▶ INDOOR, OUTDOOR Select the DC iris speed ▶ 0~15 MAIN MANU MAIN MANU LENS LENS MANUAL EXPOSURE EXPOSURE BACK LIGHT BACK LIGHT WHITE BAL WHITE BAL DAY&NIGHT AUTO DAY&NIGHT AUTO IMAGE IMAGE FUNCTION FUNCTION SYSTEM SYSTEM EXIT SAVE&END EXIT SAVE&END The EXPOSURE menu is used to set the automatic light control method for the camera.
- Page 13 BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. 1)BLC Prevents such a back light effect to secure a clear image under All illumination environments. Adjust the size of Back Light Compensation area. Select the BLC gain ▶...
- Page 14 WHITE BALANCE The screen color can be adjusted by using the Auto White Balance function. It compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. 1)ATW Automatically adjust color temperature.
- Page 15 The DAY&NIGHT menu is used to configue the day and night related setting for the camera. DAY&NIGHT mode are changed according to the brightness of the image. Use only when the camera is installed in a dark place but the camera is viewing a bright place.
- Page 16 The IMAGE menu provides the ability to adjust the SHARPNESS, LSC and D-EFFECT functions of the camera. Adjust the SHARPNESS level. ▶ OFF, AUTO (0 - 10) 1) SHARPNESS Select the lens Lens Shading Compensation. ▶ ON, OFF 2) LSC Select real or still mode ▶...
- Page 17 1) DNR Select Digital Noise Reduction. ▶ OFF, LOW, MIDDLE, HIGH ▶ OFF, LOW, MIDDLE, HIGH Detects the Motioned Object in the image. ▶ ON, OFF 2) MOTION Select the Motion area ▶ AREA1 - AREA4 SELECT DISPLAY Adjust the Motion area window position & size Adjust the Motion sensitivity level ▶...
- Page 18 <DNR> MIDDLE MIDDLE RETURN <MOTION> FUNCTION MOTION SELECT AREA1 MOTION DISPLAY PRIVACY SENSITIVITY |▪I▪▪▪| 10 DEFECT DET COLOR WHITE RETURN TRANS ALARM DEFAULT RETURN < PRIVACY > PRIVACY SELECT AREA1 DISPLAY COLOR COLOR WHITE TRANS DEFAULT RETURN < DEFECT DET >...
- Page 19 SYSTEM The IMAGE menu provides the ability to adjust the CAM TITLE, RS485, MONITOR, CVBS CROP, VIDEO OUT, LANGUAGE and VERSION functions of the camera. 1) CAM TITLE Maximum of 15 characters are allowed. Select the Monitor type ▶ LCD, CRT 2) MONITOR Adjust the Blue gain level ▶...
- Page 20 < MONITER > SYSTEM CAM TITLE GAMMA USER MONITOR RED GAIN |▪▪|▪▪| 69 VIDEO OUT NTSC BLUE GAIN |▪▪|▪▪| 60 LANGUAGE ENGLISH RETURN COMET RETURN EXIT The EXIT menu provides the ability to adjust the RESET, SAVE & END and NOT SAVE functions of the camera.
- Page 21 MODEL Full HD CAMERA DC 12V ± 10% Power Source Power Power Consumption MAX 4.8 Watts (400mA) Image sensor 1/2.8" 2.4M Sony CMOS Total Pixels 2000(H) x 1121(V) Active Pixels 1920(H) x 1080(V) Scanning system Sync. System Video Frame Rate 1920x1080@25fps ;...
- Page 22 1.67lb. (760g) 2.20lb. (1.0kg) 50303906A...
