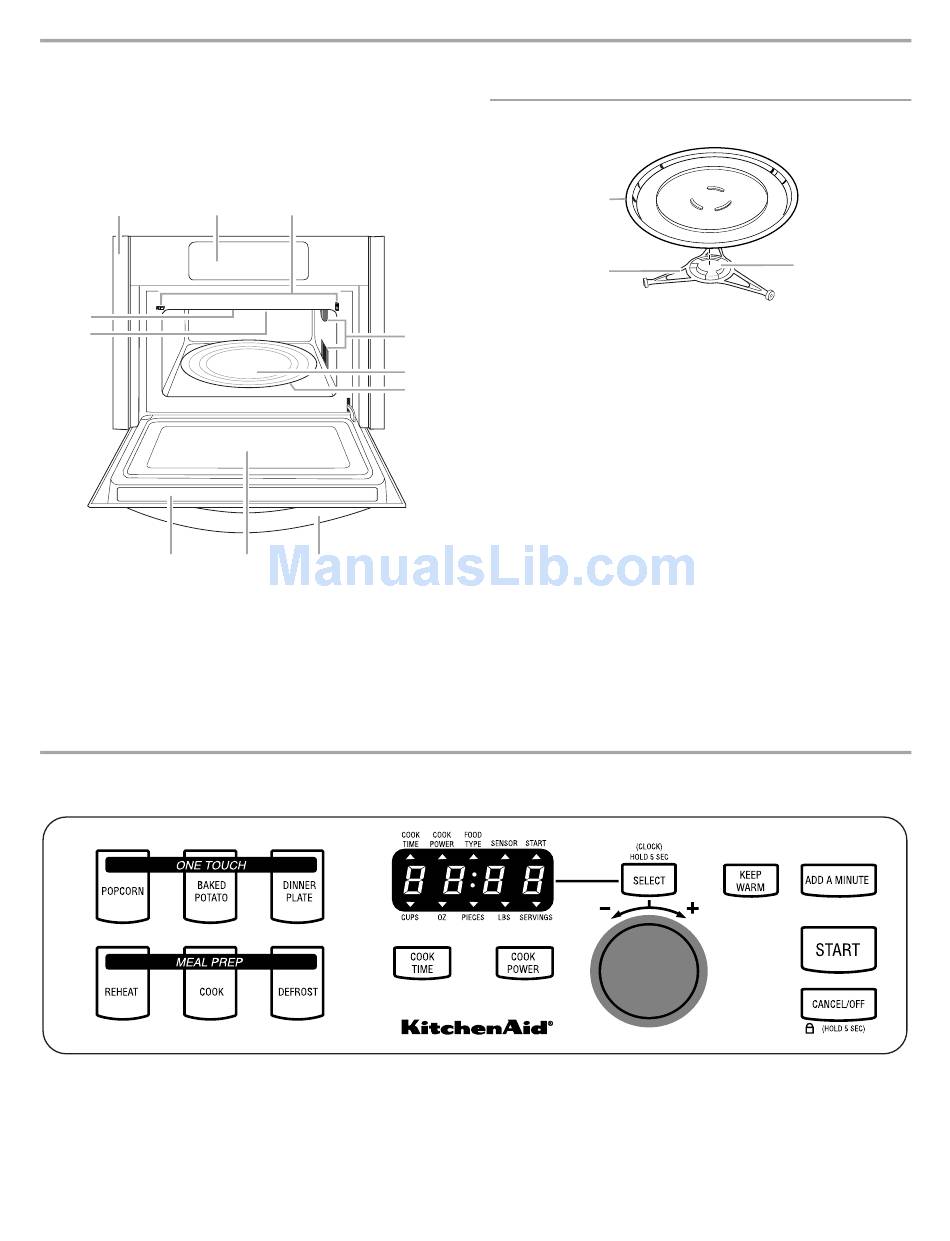

This manual may cover several different models. The model you
have purchased may have some or all of the features shown here.
The appearance of your particular model may differ slightly from
the illustrations in this manual.
A
B
K
J
I
A. Frame
B. Control Panel
C. Door safety lock system
D. Dual microwave emissions
E. Glass turntable
F. Turntable support, rollers and
hub
G. Door handle
6

PARTS AND FEATURES

C
D
E
F
H
G
H. Metal shielded window
I. Cooking guide label
J. Microwave oven light
(inaccessible -- in ceiling)
K. Microwave inlet cover

MICROWAVE OVEN CONTROL

Turntable

A
B
A. Turntable
B. Support
C. Hub (attached to support)
The turntable rotates in both directions to help cook food more
evenly. Do not operate the microwave oven without the turntable
in place. See "Assistance or Service" to reorder any of the parts.
To Install:
1. Place the support on the oven cavity bottom.
2. Place the turntable on the support.
Fit the raised, curved lines in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.
C
