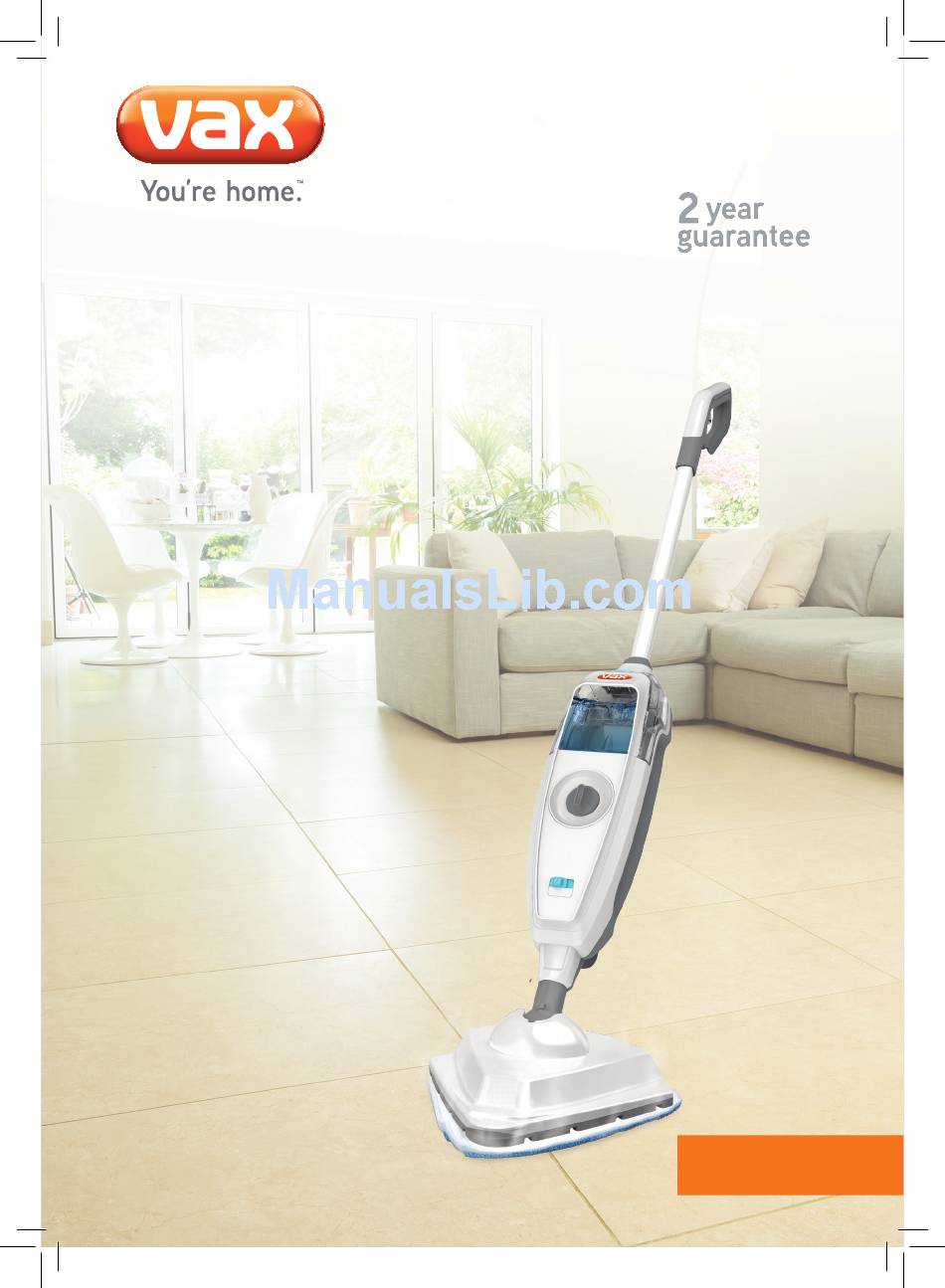

- Page 1 Steam Fresh Let’s get started vax.co.uk S86-SF-A...
-
Page 2: Let's Talk Safety
• Keep fingers, hair and loose clothing from moving parts and electrical heating systems etc openings whilst using the steam mop • Only Vax recommended cloths and detergent should be used • This appliance can be used by persons with reduced with this steam mop. Using other detergents will invalidate... - Page 3 Calls are charged at the UK local rate. Please make a note of the serial number and model number of the Steam Fresh before calling. Alternatively, you can write to us at: Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK @VaxUK Let us know what you think...
-
Page 4: Table Of Contents
Contents Included with your machine Let’s talk safety 250ml detergent Getting to know your machine 1x Microfibre cleaning pad Getting started Carpet glider Using your machine Taking care of your machine What to do if it goes wrong Getting in touch Accessories Notes... -
Page 5: Getting To Know Your Machine
Microfibre Cleaning Pads (Type 1) 1-1-131448-00 Voltage 220-240 Carpet Glider (Type 3) Wattage 1600w 1-1-133527-00 Cord length 7m Hard Water Filter (Type 1) Weight 3.3kg 1-1-133327-00 To purchase consumables and accessories, please visit vax.co.uk Subject to technical change without notice. -
Page 6: Getting Started
Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Assembling your steam mop Wrap power cord around hooks Push the main body down Stand the steam mop Push the handle into for easy storage and insert into into the floor head until it upright by pushing the main body until it... -
Page 7: Using Your Machine
IMPORTANT: If you do not want to use detergent on your flooring, select off on the detergent dial. Always test on an inconspicuous area of flooring first before using detergent. Filling twin tank Pour 50ml of Vax Before replacing the twin Align the twin tank... - Page 8 Using your machine Using your machine To produce steam, Move the steam mop slowly Place your foot onto the squeeze the trigger. floor head and pull handle backwards and forwards paying To prevent over wetting backwards to recline particular attention to high floors avoid holding the traffic areas trigger continuously...
- Page 9 Using your machine Refreshing carpets Move the steam mop slowly Place your foot onto the To produce steam, floor head and pull handle squeeze the trigger. backwards and forwards across backwards to recline To prevent over wetting the carpet paying particular floors avoid holding the attention to high traffic areas trigger continuously...
-
Page 10: Taking Care Of Your Machine
Taking care of your machine IMPORTANT: Allow the steam mop to fully cool down before performing any maintenance or troubleshooting checks Don’t leave water or detergent in the twin tank between uses, as this can effect the machines performance, the twin tank needs to be emptied and rinsed after each use. - Page 11 Taking care of your machine Replacing the hard water filter Remove twin water Lift to remove the hard New filter - Hard water filter should be tank to access the water filter (beige/cream colour) replaced every 3-6 months hard water filter or when discoloured and darkened (dark orange) Clearing blockages...
-
Page 12: What To Do If It Goes Wrong
What to do if it goes wrong Problem Solution • Check the ‘This pack contains’ panel on the box to make sure the part is included with your steam mop. There is an accessory missing • Check the On/Off switch is in the On position. •... -
Page 13: Getting In Touch
Getting in touch * Calls are charged at the UK local rate. Please make a note of the serial number and model number of the Steam Fresh before calling. - Page 14 Accessories Don’t forget your accessories! Order at: www.vax.co.uk/spares-and-solutions 2x Mircrofibre Cleaning Pads (Type 1) 1-1-131448-00 Microfibre cleaning pads, ideal to remove dirt and grime. These cleaning pads attach to the base of the steam mop using velcro, so it’s quick and easy to fit and remove.
- Page 15 Spring Fresh. Steam Detergent Lime Zest 1-9-132809-00 Vax Lime Zest Steam Detergent cuts through grease and grime, neutralises odours, eliminates 99.9% of harmful bacteria for up to 7 days and leaves your floors smelling of Lime Zest.
- Page 16 Notes...
- Page 17 Notes...
- Page 18 Version 1.0 EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the S86-SF-A is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
