Summary of Contents for SecuPlate ELKITW2G

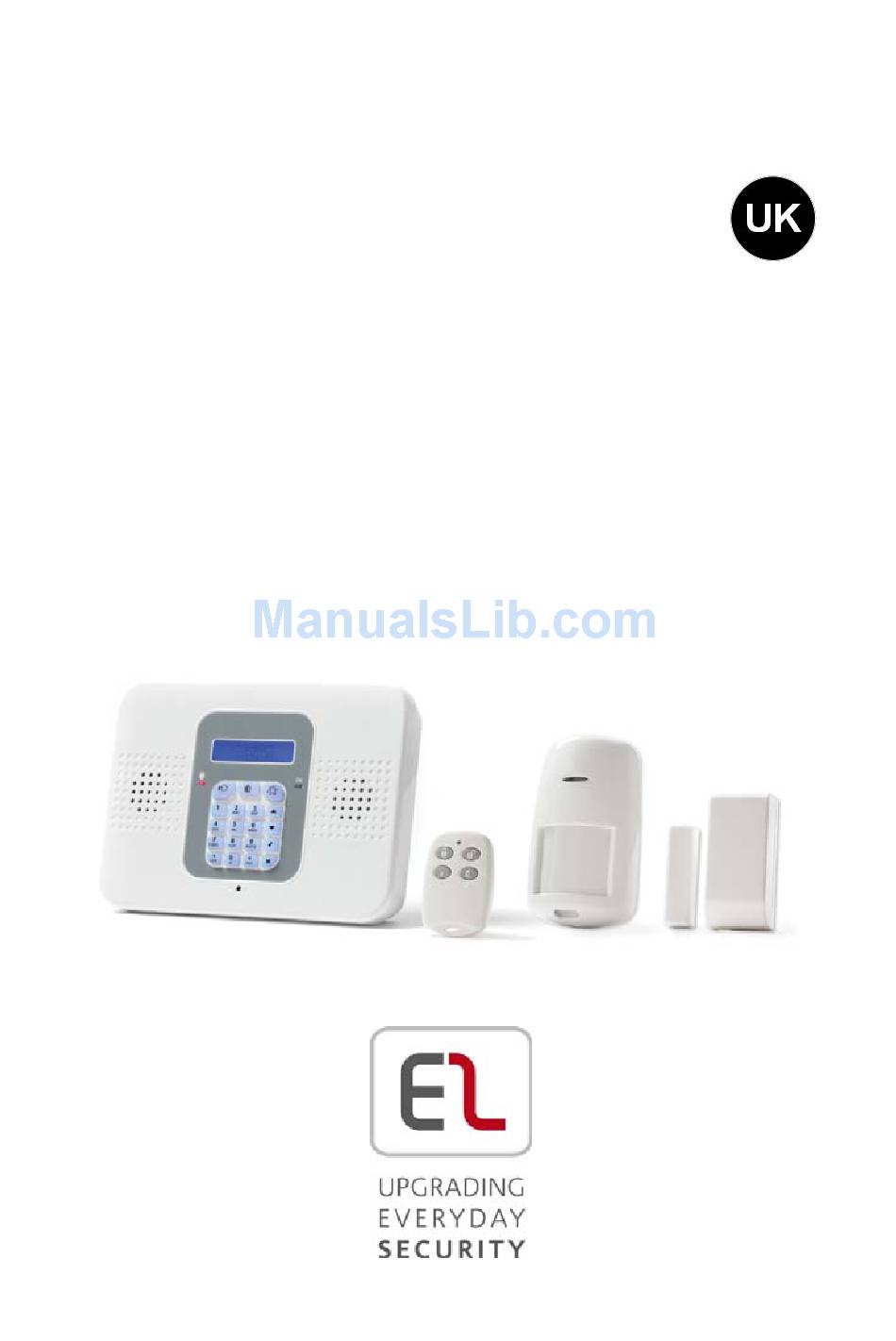

- Page 1 SecuPlace Quick Installation Guide...
- Page 2 Step 1: SIM & Panel Installation and Power-Up NOTE: The SecuPlace system should be installed by a professional, such as an alarm system engineer or electrician. If the system does not have a SIM card pre-installed, install it before applying electrical power to the control panel. To insert the SIM card: SIM card access cover...
- Page 3 To mount the control panel: WARNING: Make sure the control panel is not connected to any electrical power supply.
- Page 4 To power-up the control panel: 1. Apply electrical power to the control panel with the AC power cable, or at the circuit breaker switch; SELECT LANGUAGE displays on the keypad. 2. Now select the language you wish to display at the control panel.
- Page 5 Step 2: Registering Kit Components All components must be registered in order to be recognized by the system. Your kit comes with pre-registered components. Activate the components to complete the registration process. To activate the detectors: NOTE: If a tamper alarm sounds during this procedure, enter the default master code (1234) to silence it.
-
Page 6: Installing The Magnetic Door/Window Contact Detector
Step 3: Installing Kit Components Installing the Magnetic Door/Window Contact Detector Mounting Guidelines It is recommended to affix the transmitter to the frame, and to affix the magnet to the moving part of the door or window. Transmitter Magnet... - Page 7 To install the transmitter and magnet: NOTE: If the transmitter is installed using adhesive strips, the back tamper switch will not be operational. NOTE: For installing the transmitter with adhesive strips, start at step 4B in the following procedure. Tamper...
- Page 8 -OR-...
- Page 9 Installing the PIR-Pet Detector The wireless PIR (Passive Infra-Red) detector detects movement for up to 11 metres (36 feet) indoors. The Pet Immunity (PI) model is designed to not trigger alarms by small pets that weigh up to 36 kilograms (80 pounds). Mounting Guidelines Avoid mounting the PIR-Pet detector in a location where a pet can come within...
- Page 10 To install the PIR-Pet detector Screw location Tamper switch Pyro sensor NOTES: • Retain the screw for use when re-installing the PCB • Do not touch the front of the pyro sensor • An additional battery (purchased separately) can also be used to extend the operational duration (size ½...
- Page 11 -OR- -OR- Step 4: Establishing System Communication In addition to installing a SIM card, in order to connect via GPRS/GSM, the Access Point Name (APN) must also be configured. If your default APN is not set to INTERNET (or if you are not sure what it is set to), you can view and edit the APN accordingly.
- Page 12 To configure the APN: 1. At the control panel press , and then enter your engineer code (default is 1111). 2. Enter 9 > 5 > 7 > 6 > 1; INTERNET displays by default. 3. Either press to select the default APN name (INTERNET), or if the cellular provider has supplied a different APN name, enter that instead.
- Page 13 Installation Completion Check the control panel LEDs to confirm installation complet The system is powered-up and ready to operate if: • The OK LED is green and not flashing -or- The OK LED is yellow and flashing slowly (this indicates the back-up battery is not yet charged, however the system operates on its AC power supply) •...
- Page 14 4. Press the detector’s tamper switch (see illustrations on pages 7 and 10) and then release it; the automatically- generated zone number and SAVE? display. 5. Press to save the registration or press to cancel. 6. Put the detector cover back on. 7.
- Page 15 Certification and Standards Compliance SecuPlace complies with: EN 50131-3:2009 Grade 2 Environmental Class II EN 50136-1-1 and EN 50136-2-1: PSTN/GPRS/GSM version complies with ATS classification and parameters: ATS 5 GPRS: D4, M4, T4, S2, I3 ATS 2 GSM: D2, M2, T4, S2, I3 ATS 2 PSTN: D2, M3, T2, S0, I0 Notes...
- Page 16 Contacting Electronics Line 3000 Ltd. Electronics Line 3000 Ltd. International Headquarters: 14 Hachoma St. Rishon Le Zion Israel, 75655 Tel: (+972-3) 963-7777 Fax: (+972-3) 961-6584 EL website: www.electronics-line.com RTTE Compliance Statement Hereby, Electronics Line 3000 Ltd. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
