Active Vision ACC-P106N-2VSW-W User Manual

Ir, cmos 2 mega pixel
Hide thumbs Also See for ACC-P106N-2VSW-W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

User Manual

IR IP CAMERA
1/33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC-P106N-2VSW-W and is the answer not in the manual?

Questions and answers

Related Manuals for Active Vision ACC-P106N-2VSW-W

Summary of Contents for Active Vision ACC-P106N-2VSW-W

  • Page 1: User Manual

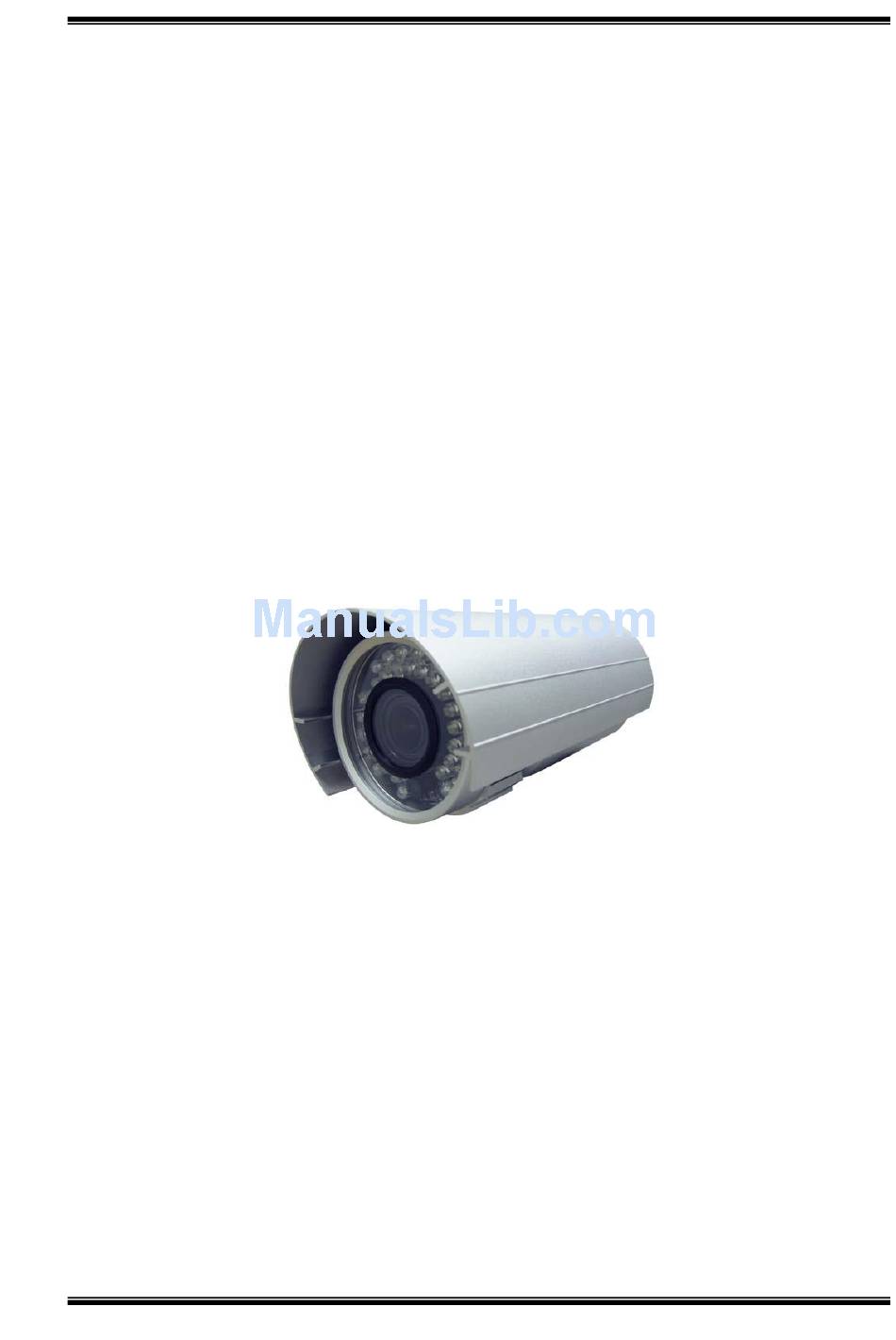

    User Manual IR IP CAMERA 1/33...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC & ELETRIC CONDUCTIVE OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

  • Page 3: Table Of Contents

    Content PREFACE .............................. 4 PRODUCT SPECIFICATIONS ......................4 III. PRODUCT INSTALLATION ......................6 ..........................6 ONITOR ETTING ........................7 ARDWARE NSTALLATION IP A ........................... 8 SSIGNMENT : ......................11 NSTALL CTIVE CONTROL LIVE VIDEO ...........................13 IR IP CAMERA CONFIGURATION ....................15 .............................16 YSTEM ............................19...

  • Page 4: Preface

    I. Preface This is a professional CMOS 2 Mega Pixel IP Camera. It has built-in web server which enables user to view real-time video via IE browser. It also supports simultaneously H.264/JPEG/ MPEG4 (3GPP Only) video compression with CMOS 2 M-Pixel Sensor which provides smooth and high video quality. The video can be stored in the SD card, and can be playback remotely.
  • Page 5 Power over Ethernet Power Consumption DC 12V, 470mA -10℃ ~ 40 ℃ Operating Temperature Dimensions 83mm (W) x 79.5mm (H) x 182.5mm (D) Weight 700g Network Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP System 1600x1200, 1280x1024, 1280x960, 1280x720, Video Resolution...

  • Page 6: Product Installation

    III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties”. Change color quality to highest (32bit). 6/33...

  • Page 7: Hardware Installation

    B. Hardware Installation DC 12V Network Connect power adaptor Connect Ethernet cable to IP Camera iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”. PoE (Power Over Ethernet) 802.3af, 15.4W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.

  • Page 8: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP Camera. The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE)
  • Page 9 click “Search Device” to search again. viii. Click one of the IP Camera listed on the left side. The network configuration of this IP camera will show on the right side. You may change the “name” of the IP Camera to your preference (eg: Office, warehouse).
  • Page 10 To Change PC IP address: Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...

  • Page 11: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. IE ...
  • Page 12 When popup the following dialogue box, click “Yes”. 12/33...

  • Page 13: Live Video

    IV. Live Video Start an IE browser, type the IP address of the IP Camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the IP Camera ,The following program interface shows.
  • Page 14 ：Get into the administration page ：Video Snapshot Show system time, video resolution, and video refreshing rate Shows how many people connect to this IP camera Double-click the video, it will change to full screen mode. Press “Esc” or double-click the video again, it will change back to normal mode. Right-Click the mouse on the video, it will show a pop-up menu.

  • Page 15: Ir Ip Camera Configuration

    V. IR IP CAMERA Configuration Click to get into the administration page. Click to back to the live video page. 15/33...

  • Page 16: System

    A.System i、 System Information Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simple Chinese to select. When changed, it will show the following dialogue box for the confirmation of changing language.
  • Page 17 ii、 User Management IP Camera supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit”...
  • Page 18 iii、 System update： To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to the proceed. Reboot system：re-start the IP camera Factory default：delete all the settings and restore defaults system. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 19: Network

    B.Network i、 IP Setting IR IP CAMERA supports DHCP and static IP. DHCP：Using DHCP, IR IP CAMERA will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 20 Please follow the procedure to activate UPnP open the Control Panel from the Start Menu select Add/Remove Programs Select Add/Remove Windows Components and open Networking Services section Click Details and select UPnP to setup the service The IP device icon will be added to “MY Network Places” User may double click the IP device icon to access IE browser ii、...
  • Page 21 iii、 DDNS： IR IP camera supports DDNS (Dynamic DNS) and Manual Built-in DDNS services. DynDNS： Please enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked.
  • Page 22 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.

  • Page 23: A/V Setting

    C.A/V Setting i、 Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. If needed, please select “Back Light Compensation” ON to compensate back light situation ii、 This IP camera belongs to external varifocal lens adjustment camera. Please adjust “ZOOM” first and “FOCUS” in the following to complete the adjustment.
  • Page 24 iii、 Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 30 FPS) Streaming 1 Basic Mode： Resolution：...
  • Page 25 Streaming 1 Advanced Mode： Resolution：1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Bitrate Control Mode There are CBR (Constant Bit Rate) and VBR (Variable Bit Rate) to use. CBR：32Kbps~4Mbps – Increase CBR to increase the picture quality; vise versa VBR：1(Low) ~10(High) –...
  • Page 26 Video Format： There are 2 Video Format to choose MPEG4 or JPEG. RTSP Path: RTSP output connecting route Streaming 2 Basic Mode： Resolution： There are 3 resolutions to choose. 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
  • Page 27 Streaming 2 Advanced Mode： Resolution： There are 3 resolutions to choose. 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate : Picture display frame per second.
  • Page 28 Streaming 2, 3GPP mode: 3GPP default value is QQVGA，128Kbp，5FPS，GOP=1XFPS 3GPP mode suggested setting: QQVGA, lower than 128kbps, 5FPS, GOP= 1x FPS or 2x FPS, MPEG4 format 3GPP can achieve up to 10FPS, In 3GPP mode, Stream 1 & Stream 2 combined frame rate is 20FPS Fix Resolution：...

  • Page 29: Event List

    D. Event List IR IP CAMERA provides multiple event settings. i、 Event Setting Motion Detection IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send video to some specific mail addresses, transmit video to remote ftp server. To set up the motion area, click “Area Setting”.
  • Page 30 triggered. Note: Pre/Post Alarm record time is base on record time setting and IP Cam built-in Ram memory. Limited by IP Cam built-in Ram Memory, When information is too much or video quality set too high, it will cause recording frame drop or decrease on post alarm recording time.
  • Page 31 Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. v、 SD card The SD card manual install is only provide for the indoor type camera, Please Insert Micro SD card before use it.

  • Page 32: Network Configuration

    VI. Network Configuration i、 Configuration 1： Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only IR IP CAMERA connects to the internet For fixed real IP, set up the IP into IR IP CAMERA. For dynamic IP, start PPPoE.

  • Page 33: Package Contents

    Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IR IP CAMERA and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. VII. Package contents i、 IR IP CAMERA Network Camera ii、...
