Active Vision ACC-P106N-2VSW-W User Manual

Hide thumbs Also See for ACC-P106N-2VSW-W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
.

User Manual

IP CAMERA
1/42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC-P106N-2VSW-W and is the answer not in the manual?

Questions and answers

Related Manuals for Active Vision ACC-P106N-2VSW-W

Summary of Contents for Active Vision ACC-P106N-2VSW-W

  • Page 1: User Manual

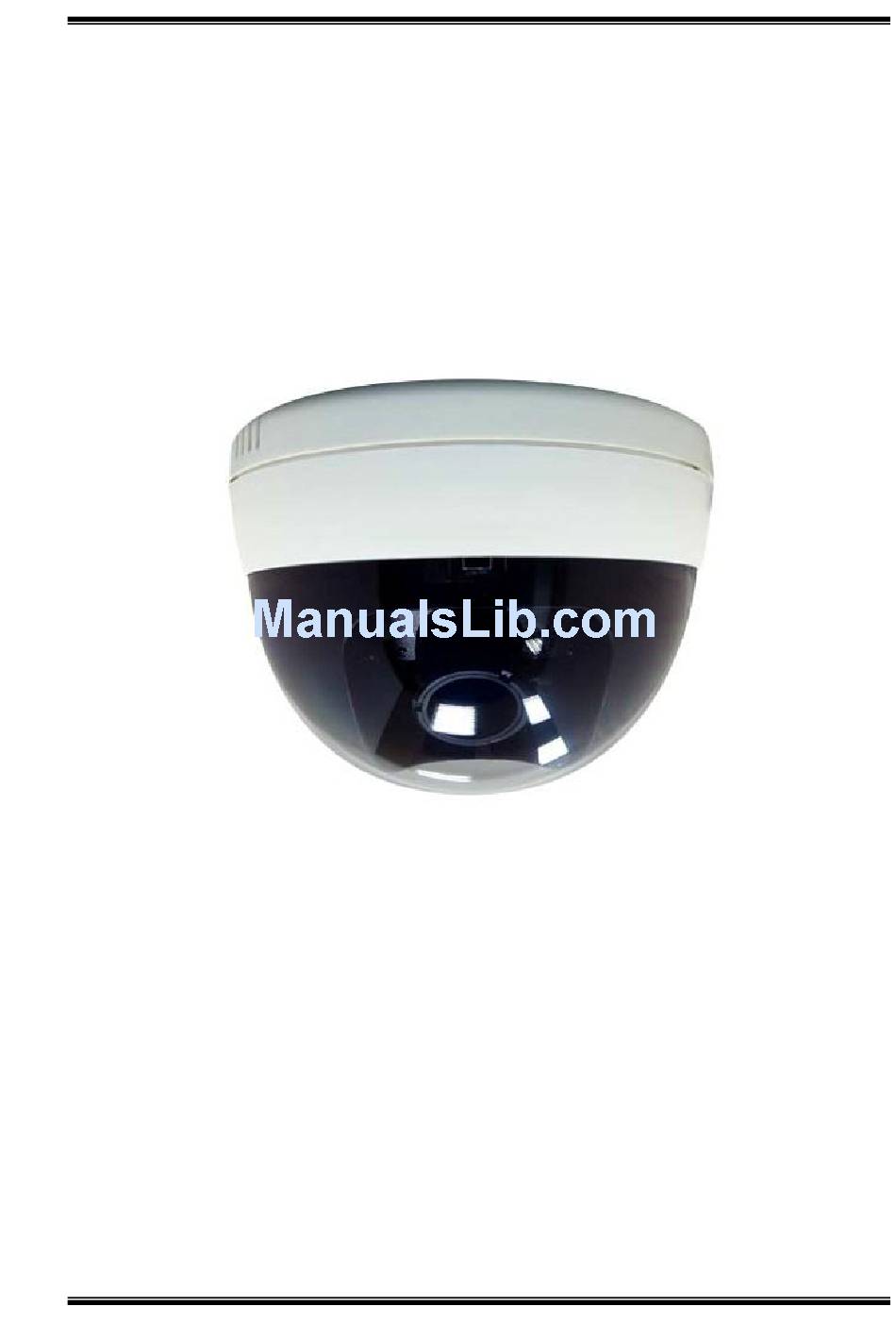

    User Manual IP CAMERA 1/42...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ......................4 PRODUCT SPECIFICATIONS ................4 III. PRODUCT INSTALLATION ................. 8 ....................8 ONITOR ETTING I/O P ..........9 ARDWARE NSTALLATION AND SSIGNMENT C. IP A ....................11 SSIGNMENT D. I : ................13 NSTALL CTIVE CONTROL IV. LIVE VIDEO ....................... 15 CONFIGURATION .....................

  • Page 4: Preface

    I. Preface This is a 720P real time IP camera with the web server built in. User can view real-time video via IE browser. It supports H.264, JPEG and MPEG4 video compression which provides smooth and high video quality. The video can be stored in the Micro SD card and playback remotely.
  • Page 5 1 DI / 1 DO Audio G.711(64K) and G.726(32K,24K) audio compression Input : External Mic in Output: External Audio out Power over Ethernet Power Consumption PoE Power consumption 12V DC Power Max: 2.88W consumption Max: 2.64W (IR Off) 4.08W (IR ON) Operating Temperature -10°C ~ 45°C Dimensions...
  • Page 6 Motion Detection Yes, 3 different areas Triggered Action Mail, FTP, Save to SD card, SAMBA, DO Pre/ Post Alarm Yes, configurable Security Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP Firmware Upgrade HTTP mode, can be upgraded remotely Simultaneous Connection Up to 10...
  • Page 7 Input : External Mic in Output: External Audio out Power over Ethernet Power Consumption PoE Power consumption 12V DC Power Max: 3.84W consumption Max: 2.64W(IR off); 4.44W(IR On) Operating Temperature -10°C ~ 45°C Dimensions 131.2mm () x 94.3mm (H) Weight 300g IR LEDs (Option) LEDs...

  • Page 8: Product Installation

    Pre/ Post Alarm Yes, configurable Security Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP Firmware Upgrade HTTP mode, can be upgraded remotely Simultaneous Connection Up to 10 SD card management Recording Trigger Motion Detection, IP check, Network break down (wire only),Schedule, DI Video Format...

  • Page 9: Hardware Installation And I/O Pin Assignment

    B. Hardware Installation and I/O Pin Assignment Connect power adaptor. Connect IP Cam to PC or network with Ethernet cable. iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”.
  • Page 10 Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week.

  • Page 11: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages. IPInstallerCht.exe：Chinese version. IPInstallerEng.exe：English version. iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE)
  • Page 12 change the “name” of the IP Camera to your preference (eg: Office, warehouse). Change the parameter and click “Submit” then click “OK”. It will apply the change and reboot the Device. Please make sure the subnet of PC IP address and IP CAM IP address are the same.

  • Page 13: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. IE ...
  • Page 14 When popup the following dialogue box, click “Yes”. 14/42...

  • Page 15: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the IP CAMERA。The following program interface shows.
  • Page 16 function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP Camera side Shows how many people connect to this IP camera Control the relay which is connected to this camera Right-Click the mouse on the video, it will show a pop-up menu.

  • Page 17: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 17/42...

  • Page 18: System

    A.System i、 System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 19 Server Time Setting：Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. ii、 User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login.
  • Page 20 Click “edit” or “delete” to modify the user. iii、 System update： To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management：User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 21: B.network

    B.Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP：Using DHCP, IP Camera will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 22 that video streams can be sent out from a LAN. There are three External port can be set, Web Port, Http Port and RTSP port. To utilize of this feature, make sure that your router supports UPnPTM and it is activated. Note: UPnP must be enabled on your computer.
  • Page 23 Created Request: remove secure identification in Created request mode. There is a warning message showing. Please set “Yes” to remove secure identification. Setting the secure identification and apply it. Installed Certificate: remove Certificate in .Installed Certificate mode. There will be a warning message to check again. There are two ways to set Certificate- Install Signed Certificate and Create Self-Signed Certificate.
  • Page 24 SNMP(Simple Network Management Protocol)： Enable SNMPv1 or SNMPv2 and write the name of Write Community and Read Community. Enable SNMPv3, please set Security Name, Authentication Type, Authentication Password, Encryption Type, Encryption Password of Write mode and Read mode. Enable SNMPv1/SNMPv2 Trap can detect the Trap server. Please set what event need to detect.
  • Page 25 QoS/DSCP(Quality of Server/Differentiated Services Code-point)： DSCP specifies a simple mechanism for classifying and managing network traffic and provide QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. Please define the reserve for Live Stream, Event / Alarm and Management. IEEE 802.1x：...
  • Page 26 Please check what version of the authenticator and authentication server support. This camera supports EAP-TLS method. Please enter ID, password issued by the CA, then upload related certificates. iii、 PPPoE & DDNS： PPPoE：Select “Enabled” to use PPPoE. Key-in Username and 26/42...
  • Page 27 password for the ADSL connection. Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP” settings. DDNS： It supports DDNS (Dynamic DNS) service. DynDNS：...
  • Page 28 (1) Please enable this service (2) Key-in user name. (3) IP Schedule update is default at 5 minutes (4) Click “Apply”. DDNS Status (1) Updating：Information update (2) Idle：Stop service (3) DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. (4) Update Failed, the name is already registered：The user name has already been used.
  • Page 29 29/42...

  • Page 30: A/V Setting

    C.A/V Setting i、 Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation, Sharpness, AGC,” to get clear video.
  • Page 31 Video Format：H.264 or JPEG or MPEG4 RTSP Path: RTSP output name Streaming 1 Advanced Mode： Resolution： There are 5 resolutions can be chosen. 1280x800, 1280x720, 640x480, 320x240, 176x144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~8Mbps (the higher the CBR is, the better the video quality is) VBR：1(Low)~10(High) –...
  • Page 32 Resolution： There are 5 resolutions can be chosen. 1280x800, 1280x720, 640x480, 320x240, 176x144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second.
  • Page 33 Video Frame Rate The video refreshing rate per second. GOP Size It means "Group of Pictures". The higher the GOP is, the better the quality is. Video Format：H.264 or JPEG or MPEG4 RTSP Path: RTSP output name 3GPP Streaming mode: 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming 3GPP: 3GPP output name...
  • Page 34 The Audio will not be smooth when enable SD card recording function simultaneously. 34/42...

  • Page 35: Event

    D.Event IP CAMERA provides multiple event settings. i、 Event Setting Motion Detection： IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card and SAMBA.
  • Page 36 recording file to change its record size. When motion/alarm is triggered, there are 3 different types of record mode. AVI File (With Record File Setting ) Multi-JPEG (With Record File Setting), only with JPEG compression format. Single JPEG (Single File with Interval Setting) Record Time Setting：...
  • Page 37 iii、 I/O Setting IP CAMERA supports 1 input/ 1 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card and Samba.
  • Page 38 4.5V Sensor Digital In (1. ) Non-Triggered Device Triggered 4.5V 4.5V Sensor Digital In (2. ) Triggered Device Digital Output Setting In Digital output setting, the user can setup the output device to perform the related output action. I/O PIN definition, please refer to the following statement Digital Input: Standard Voltage: 5V (internal Voltage) Connect “Digital Input”...
  • Page 39 Playback： It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del.

  • Page 40: Network Configuration

    Network Configuration i、 Configuration 1： Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only IP CAMERA connects to the internet For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start PPPoE.

  • Page 41: Factory Default

    iii、 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. VI. Factory Default ...

  • Page 42: Package Contents

    VII. Package contents  IP CAMERA Network Camera  Adaptor  Quick installation guide  CD title (User manual, IP installation Utility) 42/42...
