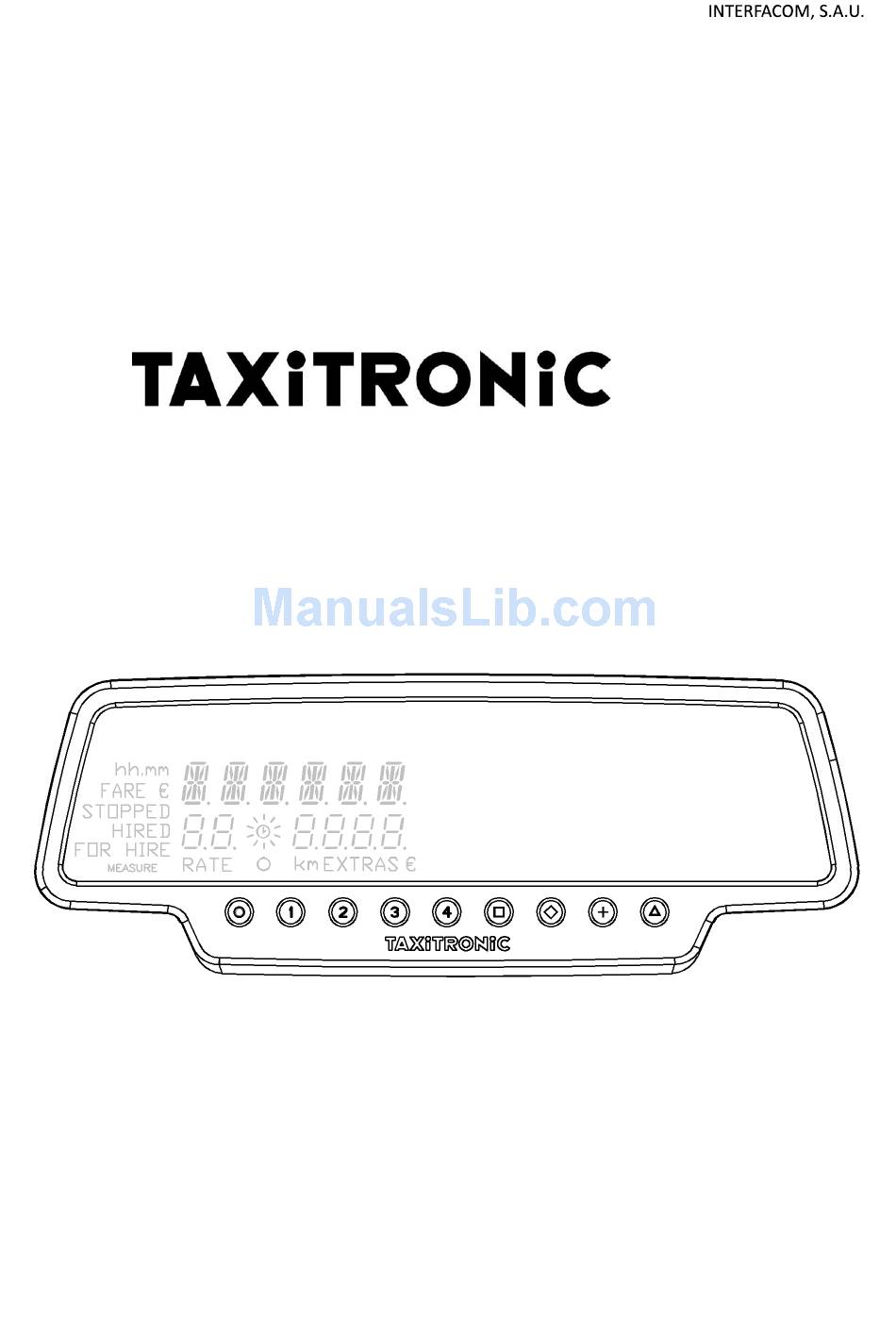

- Page 1 Skyglass USER’S MANUAL Skyglass_EN.002.docx...
-
Page 2: Table Of Contents
INDEX SWITCHING THE TAXIMETER ON......................... 4 TRIP SEQUENCE ............................5 2.1. HIRED POSITION ..........................5 2.2. ADDING EXTRAS IN HIRED ........................5 2.3. STOPPED POSITION ..........................5 2.4. ENTERING EXTRAS IN STOPPED ......................6 2.5. ADDING THE EXTRAS TO THE FARE ..................... 6 2.6. - Page 3 6.2.1. ACTIVE PAUSE ..........................15 6.2.2. PASSIVE PAUSE .......................... 16 ANCILLARY FUNCTIONS IN FOR HIRE ......................17 7.1. ROOFLIGHT ON/OFF .......................... 17 7.2. LIGHT ON/OFF ........................... 17 7.3. UV LIGHT ON ............................17 7.4. SETTINGS SEQUENCE ......................... 17 7.4.1. DATE AND TIME VISUALIZATION ....................18 7.4.2.
-
Page 4: Switching The Taximeter On
1. SWITCHING THE TAXIMETER ON. Taximeter OFF. Press the O key to turn the Taximeter ON. If a password is required, the second point in the status display will blink, waiting for the introduction of the code. If no password is required, or once the correct code is entered, the taximeter goes to ON. Skyglass_EN.002.docx... -
Page 5: Trip Sequence
2. TRIP SEQUENCE 2.1. HIRED POSITION Press 1 , 2 , 3 or 4 key to start the right tariff. Δ For tariffs 5, 6, 7 and 8, first press the key, and then press key 1 , 2 , 3 or 4 . 2.2. -
Page 6: Entering Extras In Stopped
2.4. ENTERING EXTRAS IN STOPPED By pressing key the text STOPPED will start flashing. Δ Add the extras by pressing keys 1, 2, 3 or 4. For extras 5, 6, 7 and 8, press the key, and then press key 1, 2, 3 or 4. To exit the extras sequence press key 2.5. -
Page 7: Vat Type Selection (Only For Germany)
2.7. VAT TYPE SELECTION (only for Germany) Press the key. Select the VAT type using the 1, 2 and 3 keys. 2.8. LIGHT ON/OFF By pressing key the courtesy light. By pressing key again the courtesy light will turn off. It is possible to configure the courtesy light to be automatically turned on when the taximeter goes to STOPPED. -
Page 8: Print A Ticket
2.11. PRINT A TICKET By pressing while the status indication is blinking, the trip receipt will be printed. Copies of the receipt can be printed by pressing key again. Press to go back to FOR HIRE. 2.12. GOING BACK TO FOR HIRE The taximeter will go back to FOR HIRE automatically after a few seconds. -
Page 9: Multipassenger Sequence
3. MULTIPASSENGER SEQUENCE In some countries it may be allowed to use a taximeter in a multi-passenger configuration. 3.1. ADD A NEW PASSENGER To add one additional passenger once the trip has started, press the key, and then 2. To add additional passengers, press the key, and then the 3 or 4 keys. -
Page 10: Entering Extras In Hired
3.3. ENTERING EXTRAS IN HIRED Once the passenger has been selected, enter Extras as explained in 2.2. 3.4. STOPPED POSITION First select the passenger for whom you want to end the trip, then press the key. 3.5. CANCELLATION OF MANUAL EXTRAS Once selected the passenger, as explained at 2.4. -
Page 11: Display Last Trip Data
4. DISPLAY LAST TRIP DATA Only works when the car is stopped. While in FOR HIRE, press the key. The taximeter will show the following data successively: - The Fare amount and the Extras - The duration of the trip: Hours and minutes. - The trip distance in kilometers. -
Page 12: Totalizers Sequence
Press the key to print the receipt of the last trip. 5. TOTALIZERS SEQUENCE Only works when the car is stopped. 5.1. ACCUMULATIVE TOTALIZERS By pressing key the first totalizer is shown. Press key to print the totalizers. By pressing again key the next figures of the total will be displayed. -
Page 13: Daily Totalizers
5.2. DAILY TOTALIZERS After the accumulated totalizers, the daily totalizers are showed by continuing pressing the according to the next list. Press key to print the totalizers. By pressing again key the next figures of the total will be displayed. The totalizers sequence can be aborted at any moment by pressing the key - 1. -
Page 14: For Hire Menu
6. FOR HIRE MENU In FOR HIRE, by pressing the key you access to the FOR HIRE MENU. 6.1. SHIFT OPENING Press the key to put the taximeter in closed shift, then press the key to open shift. Enter the Driver number changing the numbers using the keys. -
Page 15: Turn Off
Enter the Password number changing the numbers using the keys. Press the key. If it is not a valid user/password pair, shift opening is rejected and the taximeter will return to closed shift. To close shift, press the key and then the key. -
Page 16: Passive Pause
6.2.2. PASSIVE PAUSE If during a certain time period the driver does not operate the taximeter in any way, and the car does not move, the device may enter the Pre-Pause status automatically without intervention. The time is configurable. After some time in this status (configurable, 5 min) the device enters Pause status. Pressing the key the Extras displays shows the total time that the device has been in Pause status. -
Page 17: Ancillary Functions In For Hire
7. ANCILLARY FUNCTIONS IN FOR HIRE 7.1. ROOFLIGHT ON/OFF Δ By pressing key and then key the rooflight will toggle between ON and OFF. When the rooflight is switched OFF a dot will appear near the L of FOR HIRE. 7.2. -
Page 18: Date And Time Visualization
7.4.1. DATE AND TIME VISUALIZATION The display of date and time is the first option shown. By pressing key the time is displayed. By pressing key it switches to FOR HIRE. By pressing key again or after few seconds the date is displayed. By pressing key it switches to FOR HIRE. -
Page 19: Light
By pressing key again or after few seconds the year is displayed. By pressing key or after few seconds it switches to FOR HIRE. 7.4.2. LIGHT Δ By pressing key after the date and time visualization. By pressing enters the lights menu. By pressing key repeatedly increases the sensibility of display light regulation circuit. -
Page 20: Volume
7.4.3. VOLUME Δ By pressing key after light setting. By pressing key to set the volume of the beep. The circular indicator shows the selected intensity. By pressing changes the beep mode. By pressing key it switches to FOR HIRE. 7.4.4. -
Page 21: Taximeter Control Blocks Visualization
By pressing key or after few seconds it switches to FOR HIRE. 7.4.5. TAXIMETER CONTROL BLOCKS VISUALIZATION Δ By pressing key after test sequence. By pressing key or after few seconds it switches to FOR HIRE. Skyglass_EN.002.docx... - Page 22 7.4.5.1. BLOCK 1 VISUALIZATION Displays the current K Constant. Press key for going to the next visualization or it goes automatically after few seconds: - C.1 Current "K" constant - C.2 Tariff serial number - C.3 Tariff recording date (Y.MM.DD) - C.4 Agent's code - C.5 Tariff checksum - C.6 Ticket identification control number.
- Page 23 7.4.5.2. BLOCK 2 VISUALIZATION Car License number. Press key to go to the next visualization. The data displayed in block 2 are the following: - L.1 Car License number - L.2 Board serial number - L.3 Manufacturing date (YYMMDD). - L.6 Program version Press key to print the control blocks.
- Page 24 - I.1 State led tariff indication - b.1 Flag drop - M.1 Meters first drop - S.1 Seconds firs drop - d.1 Price per km - H.1 Price per hour - P.1 Price per km in stopped position - E.1 Extras amount assigned to these tariff Press key to print the control blocks.
-
Page 25: Skyglass Control Blocks Visualization
7.4.6. SKYGLASS CONTROL BLOCKS VISUALIZATION Δ By pressing key after taximeter control blocks visualization. By pressing key or after few seconds it switches to FOR HIRE. 7.4.6.1. BLOCKS VISUALIZATION Serial number. Press key to go to the next visualization, or automatically after few seconds: - E.1 Skyglass serial number - E.2... -
Page 26: Language Settings
The sequence can be aborted at any time by pressing the key 7.4.7. LANGUAGE SETTINGS Δ By pressing key after Skyglass control blocks visualization. Δ By pressing key or , or after few seconds it switches to FOR HIRE. By pressing key to select the language.
