CHANNEL SAFETY SYSTEMS

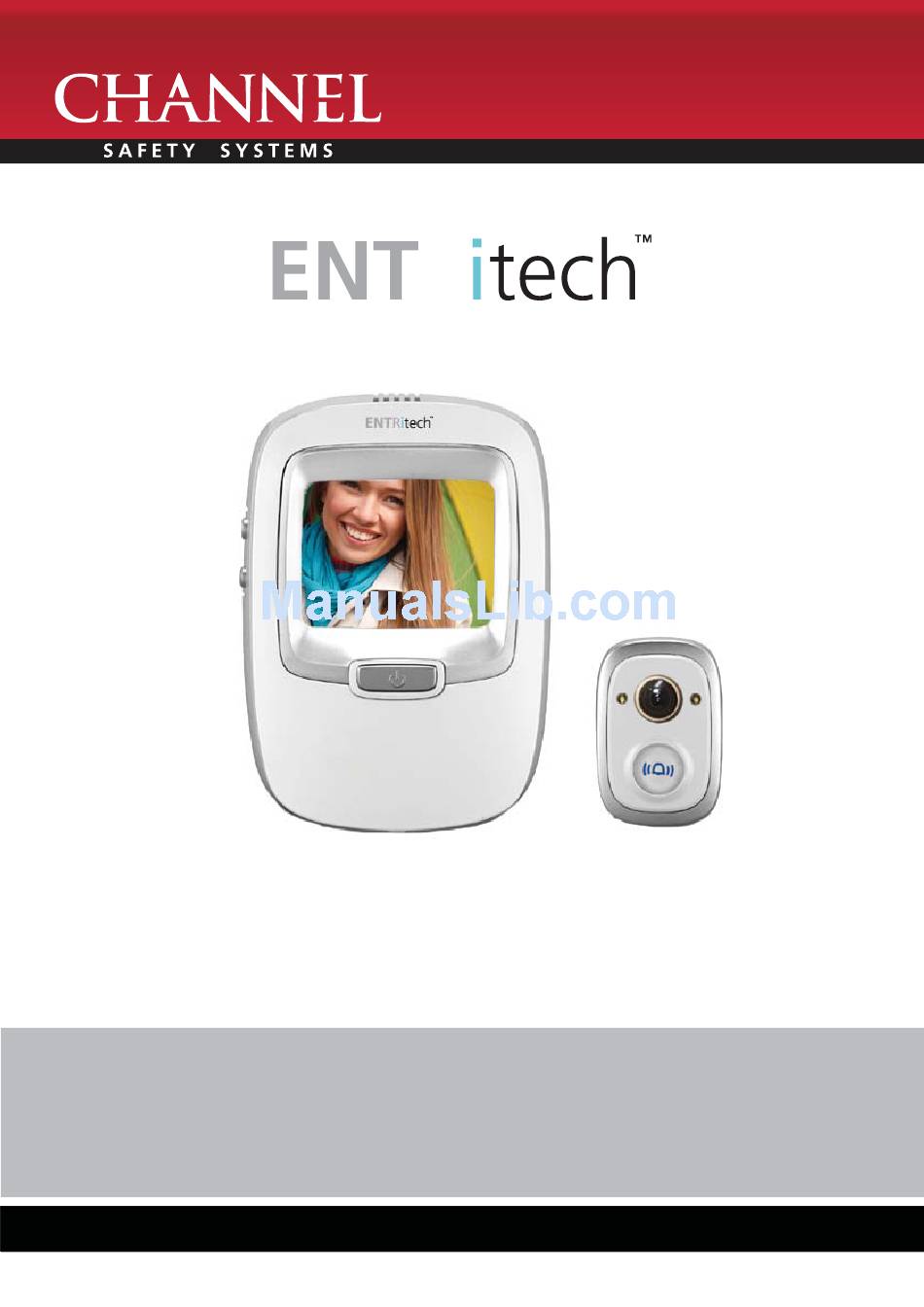

The new digital door viewer from
CHANNEL SAFETY SYSTEMS
Petersfi eld Business Park
Bedford Road
Petersfi eld
Hampshire
GU32 3QA
DDV INSTALLATION GUIDE
R
Digital Door Viewer
Channel Safety Systems
Digital Door Viewer Installation Guide
t: 0845 884 7000 | w: www.channelsafety.co.uk
t: 0845 884 7000
f: 0845 884 6000
e: sales@channelsafety.co.uk
w: www.channelsafety.co.uk
| 1/1
Advertisement
Related Manuals for Channel Safety Systems ENTRItech
Summary of Contents for Channel Safety Systems ENTRItech
- Page 1 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk Digital Door Viewer The new digital door viewer from Channel Safety Systems CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk...
-
Page 2: Table Of Contents
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk CONTENTS Parts ........................2 Installation ......................3- Operations ......................7 3.1. Buttons ......................7 3.2. Screen Shots ....................7 3.1. Device Timing Operation ................7 PARTS Main Unit (Screen) Doorbell Unit (Camera) -
Page 3: Installation
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INSTALLATION 1. Remove the current peep hole from your door. if you haven’t already got a peep hole, drill a 5/8”inch hole. 2. Peel of the adhesive cover on one side of the Adhesive tape and attach to the back of the Doorbell Unit. - Page 4 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk 3. Securely place the Doorbell unit on the outside of the door using the Adhesive tape, insuring that the metal threading is exactly in the middle of the peep hole.
- Page 5 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk 5. Peel off the tape backing on the back side of the Mounting plate, this will help prevent scratching on your door when attaching the main unit. Then place the backing unit against the door and pull the connection ribbon through the centre hole.
- Page 6 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk 6. Snap the PCB to the connection point. 7. Use a screw driver not included) to help remove the faceplate from the main unit. Install two AA batteries into the unit (not included).
- Page 7 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk ATTENTION For the following steps, please note that the main connection points are vital to the Digital Door Viewer’s operation. If they are not properly connected, the device will not work.
- Page 8 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk 8. Use a Philips head screw driver (not included) along with the 2 long screws included to mount the unit to the backing plate in two locations. Screw locations Replace the cover on the front of the device and using the 1 short screw to secure the faceplate to the device.
- Page 9 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk The Digital Door Viewer is now fully installed. Please note that both the screen and camera lens may have a clear plastic cover to prevent scratching. Please remove the plastic after installation.
-
Page 10: Operations
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk OPERATIONS Replacing the Batteries To replace the batteries simply remove the faceplate of the main unit by unscrewing the bottom screw of the device. Remove the old batteries and replace them with two new AA batteries. -
Page 11: Buttons
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk Buttons The Digital Door Viewer included 4 buttons, including A, B, C & D. Using the Digital Door Viewer Take a picture from the inside: To monitor who is outside your door, you can press “A”, the screen will turn on after 3 seconds. When the screen is on press “A”... - Page 12 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk Digital Door Viewer Installation Guide...
