Summary of Contents for HITEC Lynx 4S

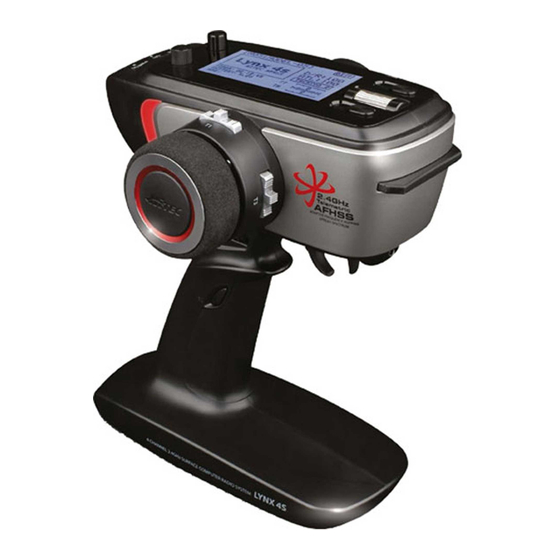

- Page 2 Intro. Thank you for purchasing the LYNX 4S transmitter. LYNX 4S is composed of diverse features to maximize customer’s R/C experiences. Please read carefully to become familiar with LYNX 4S under your control. After reading this, please keep this manual for easy reference.
- Page 3 30 – Model Memory(Micro SD - Add 30 memory, Total 60 memory) 12 letter model name Easy Left-hander change Mode PC link and Upgrade Earphone connection Extension Mountain Mode Various Battery Compatibility(Lipo / Life / NiMH / NiCD) Transceiver Binding(ID setting) <TX>...
- Page 4 ESC twice while pressing the stop menu. Transmitter Scan Mode 1. LYNX 4S Power ON, Move to SYSTEM TAB. RX-SCAN Menu button entered will appear asking if you want to scan. "You will run a scan is it? Then all you need to rebind RX! "...
- Page 5 Fail safe and hold mode When Rx signal take effect on external influence if you set the Fail - safe mode, the servo will go to Fail–safe position you stored already. The servo will turn off the power for 1 second in hold time if you didn’t enable the Fail–safe mode. Then the servo will keep no-load condition and move to the position that is ordered last time until it detects a normal signal again.
- Page 6 (Warning – The Fail-safe setting will delete you set lastly if the Fail-safe mode is disabled. Always check the Fail-safe mode work normally before you turn on the engine or motor.) Low Battery Warning The battery voltage is normal, there is no change in the module. The battery voltage is low, the alarm sounds.
- Page 7 WARNING & SAFETY INFORMATION Safety Symbols FCC Information Warning Caution FCC notification to users Note WARNING & SAFETY INFORMATION...
