Summary of Contents for Mercedes-Benz A0009060307

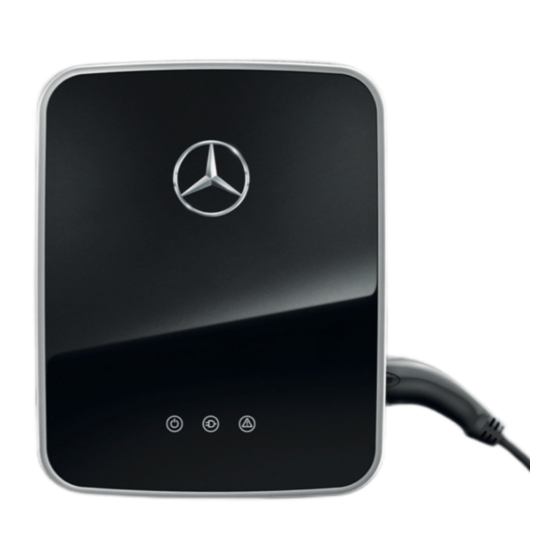

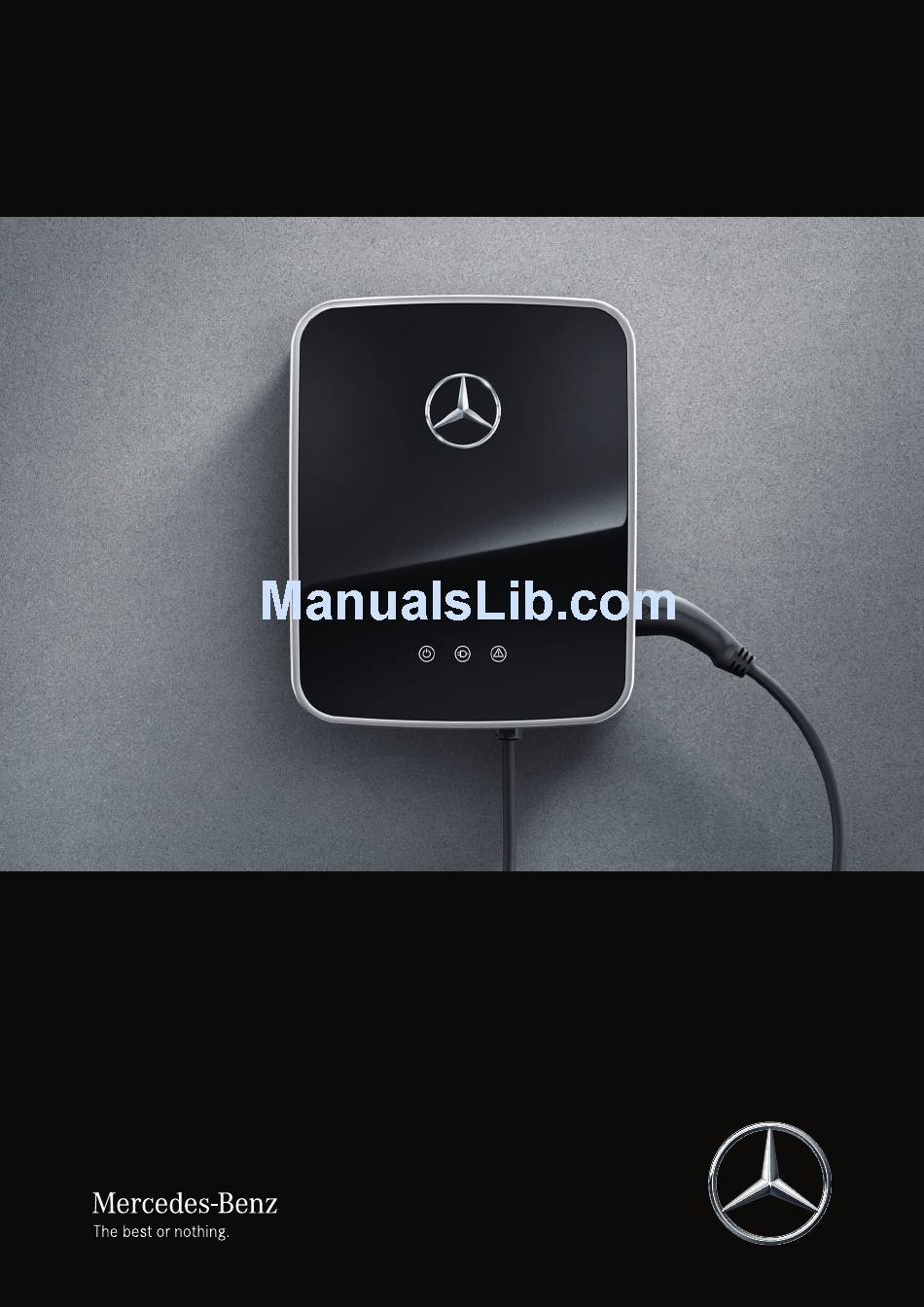

- Page 1 Mercedes-Benz Wallbox Instruction Manual...
-
Page 2: Important Addresses
Mercedesstraße 137 70327 Stuttgart, Germany In case of technical questions, please contact your local Mercedes-Benz technical support. This manual, in its entirety or in parts, must not be reproduced, stored electronically or otherwise transmitted electronically, electrically, mechanically, optically, chemically, by photocopy or as an audio recording without express written permission. -
Page 3: Table Of Contents
CE certification and compliance Unpacking and components declaration included Maintenance Identifying your model variant Cleaning and care Charging procedure Trademarks Charging procedure using the Intellectual Property & Copyright Mercedes-Benz Wallbox Disposal advice Resolving errors Error messages during the charging procedure Mercedes-Benz Wallbox... -
Page 5: Important Information
• vidual working steps. Please make sure you read this manual, as it contains important information for use of the wallbox with your Mercedes-Benz vehicle. Please especially follow all operational and safety notices that are printed in this manual. Keep this manual in a safe place for future reference. In case the wallbox is operated by several users, the contents of this manual, and the safety notices in particular, must in all cases be passed on to each individual user or made available to them. -
Page 6: General Safety Information
Only use accessories intended and sold for the device by Mercedes-Benz. • Do not operate this wallbox in close vicinity to running water or water jets. However, the Mercedes-Benz Wallbox is suffi- • ciently protected against water splashes and sprays according to the respective protection degrees. -
Page 7: User Information
Should you detect damage to the housing or charging cable, you must take the wallbox out of operation immediately via the upstream fuse(s) in your domestic power distribution box: No further use of the wallbox is permitted in this case! Please contact your local Mercedes-Benz technical support! User information To operate your wallbox, please note these instructions: The device must always be connected to the protective earth conductor of your electricity supply. -
Page 8: Introduction
The carton in which the Mercedes-Benz Wallbox is delivered offers optimal protection against external influences during transport and storage. If possible, keep this carton and use it to pack the Mercedes-Benz Wallbox, should you need to send it to the manufacturer or otherwise transport it because of a malfunction or similar. -
Page 9: Identifying Your Model Variant
The Mercedes-Benz Wallbox series comprises several model variants, which are mechanically and electrically adapted to different usage profiles. A product sticker with the specific Mercedes-Benz product identification number is located on the underside of the wallbox. Please check the product sticker to ensure that the model variant you have installed is the one described in this manual. -
Page 10: Charging Procedure
Please contact a specialist electrical contractor or your local Mercedes-Benz partner, who will be pleased to assist you with any questions regarding the installation and operation of your wallbox. - Page 11 Should the vehicle not be fully charged after a sufficiently long charging process, please contact your local Mercedes- Benz partner. After the charging procedure has been completed, please remove the cable from the vehicle socket and store it appropriately in readiness for the next charging procedure. Mercedes-Benz Wallbox | Charging procedure...
-
Page 12: Resolving Errors
In some circumstances, malfunctions and disruptions of the charging procedure may occur that prevent the proper charging of the vehicle according to IEC 61851.1. The Mercedes-Benz Wallbox independently detects possible internal errors as well as errors on the part of the vehicle and shows them using the indicator LEDs. -
Page 13: Taking The Product Out Of And Back Into Operation
Taking the product out of and back into operation If required, you can take your Mercedes-Benz Wallbox out of operation. To take the wallbox out of operation, please proceed as follows: 1. Switch of the external residual current circuit breaker (RCCB), thus disconnecting the wallbox from the power grid. -
Page 14: Frequently Asked Questions
The key for opening the housing or for unblocking the charging procedure has been lost. Can I order a replacement key? One triangular key for the housing cover ins included with the Mercedes-Benz Wallbox. Two keys for the key switch on the •... -
Page 15: Appendix
Appendix Technical specifications Model Variant A0009060307 Compliance standard IEC 61851-1 / 61439-7 Grid connection for supply cable sizes of max. 3 x 16 mm² Rated voltage see product label Rated current 32 A, single phase Rated frequency 50 Hz Max. output 7.2 kW... -
Page 16: Scale Drawings And Dimensions
Scale drawings and dimensions The Mercedes-Benz Wallbox is delivered fully assembled and checked. All dimensions are indicated in the scale drawings below. Wallbox with fixed charging cable Plan and elevation (all dimensions in mm) Standards & guidelines The Mercedes-Benz Wallbox complies with the following standards and protection ratings:... -
Page 17: Ce Certification And Compliance Declaration
(e.g. biannually). DANGER! Never remove the internal cover of the Mercedes-Benz Wallbox: Cleaning or maintenance of components is not necessary, or may not under any circumstances be performed by the user. Conduct a visual inspection of the housing surfaces and check for damage. -
Page 18: Cleaning And Care
Have all damage repaired before continuing to operate the wallbox. Until then, take the wallbox out of operation as described in section “Taking the product out of and back into operation” on page 9. The Mercedes-Benz Wallbox does not have a dedicated ON/OFF switch: If you want to take the wallbox out of operation, •... -
Page 19: Disposal Advice
European Union: Please inquire with your local authorities regarding proper disposal. The materials are recyclable as marked. By re-using, recycling or through other forms of processing obsolete devices, you make an important contribution to environmental protection. Mercedes-Benz Wallbox | Appendix... - Page 20 The manufacturer may have made minor technical modifications to the product after publication of this instruction manual. This may also have led to minor discrepancies in the appearance of the product. Any color differences are a result of the printing process. Daimler AG, Mercedesstr.
