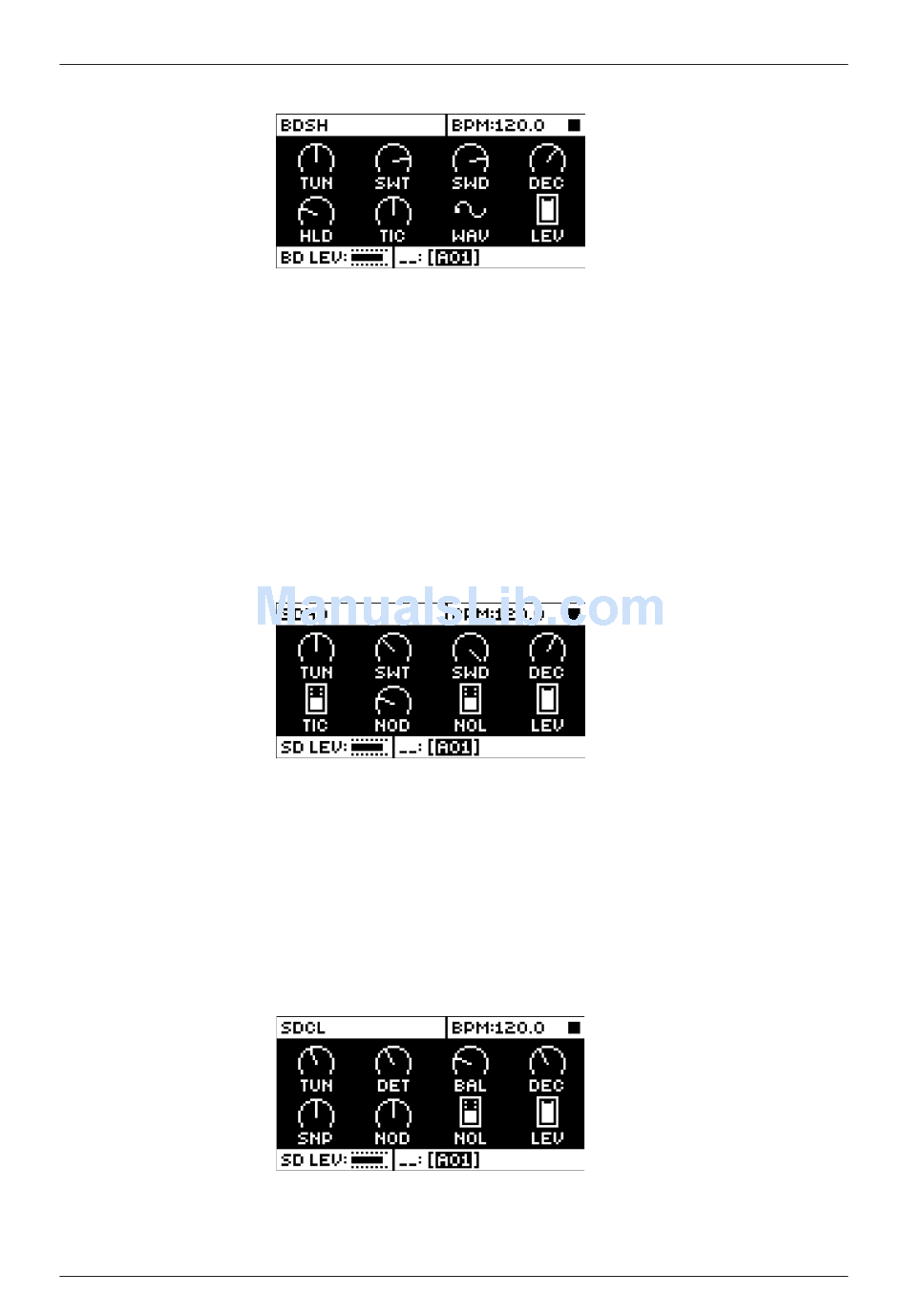

BDSH (BASS DRUM SHARP)
TUN (Tune) sets the pitch of the oscillator. (-64–+63)
SWT (Sweep Time) sets the pitch sweep time. (0–127)
SWD (Sweep Depth) sets the depth of the pitch sweep. (0–127)
DEC (Decay) sets the length of the decay phase. (0–127)
HLD (Hold Time) sets the length of the hold phase. (0–127)
TIC (Tick Level) sets the level of transient tick. (0–127)
WAV (Waveform) sets the waveform. There are five waveforms to choose from (Sine, Asymmetric
Sine, Triangle, Sinetooth and Sawtooth), and there is a choice between letting the oscillator run freely,
or have it reset each time the synth is trigged (wave graphics showed with an anchor point on the LCD).
LEV (Level) sets the synth volume. (0–127)
D.3 SNARE DRUM
SDHD (SNARE DRUM HARD)
TUN (Tune) sets the pitch of the oscillators. The interval between them is fixed. (-64–+63)
SWT (Sweep Time) sets the pitch sweep time. (0–127)
SWD (Sweep Depth) sets the depth of the pitch sweep. (0–127)
DEC (Decay) sets the length of the decay phase. (0–127)
TIC (Tick Level) sets the level of the transient tick. (0–127)
NOD (Noise Decay) sets the length of the noise decay phase. (0–127)
NOL (Noise Level) sets the noise level. (0–127)
LEV (Level) sets the synth volume. (0–127)
SDCL (SNARE DRUM CLASSIC)
TUN (Tune) sets the common pitch of the oscillators. (-64–+63)
DET (Detune) sets the pitch of the second oscillator in relation to the first. (-64–+63)
