Replace Rope (continued)

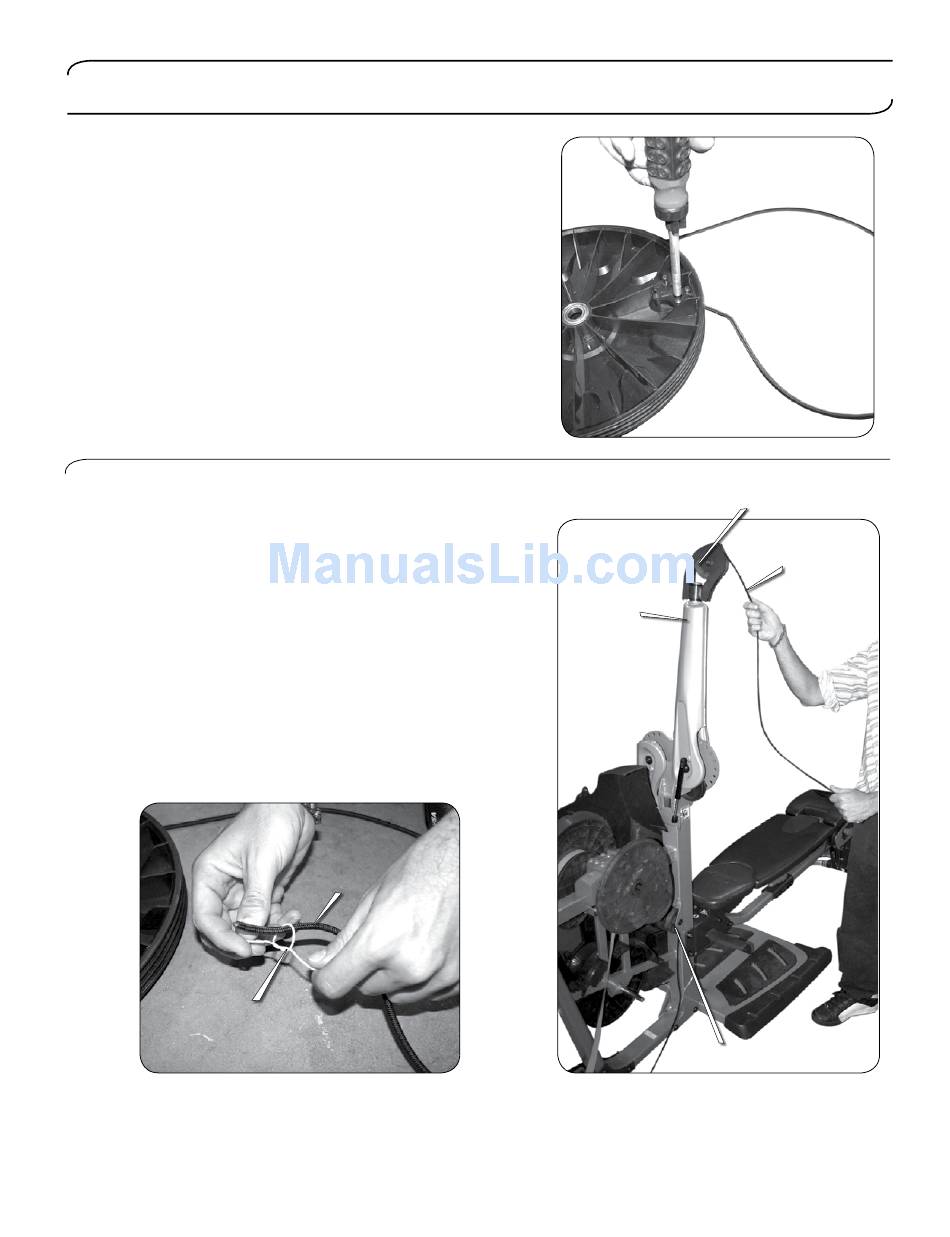

4. Remove Rope From Pulley.

9-1. Remove Cam from Cam Axle.

5. Remove Old Rope.

5-1. Raise the Arm to fully upright position.
5-2. Tie a piece of string (about 6 feet long) to the end
of the old Rope. ( Figure A )
5-3. Gently pull the old Rope through the Arm and and
over the Upper Pulley leaving the string theaded
through the arm. ( Figure B )
Note:
Do not pull the string through the arm. Leave enough
string exiting at the Lower Pulley to pull the new Rope
back through.
String
Maintenance Procedures
Rope
Figure A
Arm
Lower Pulley
Bowflex Revolution Service Manual
™
Upper Pulley
Rope
Figure B
23
