D16
User Manual for Windows
Windows 7 or later
Driver Version 3.0 and later
Ver.3.4 Release
Date: 10/12/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTISUL D16

Summary of Contents for ARTISUL D16

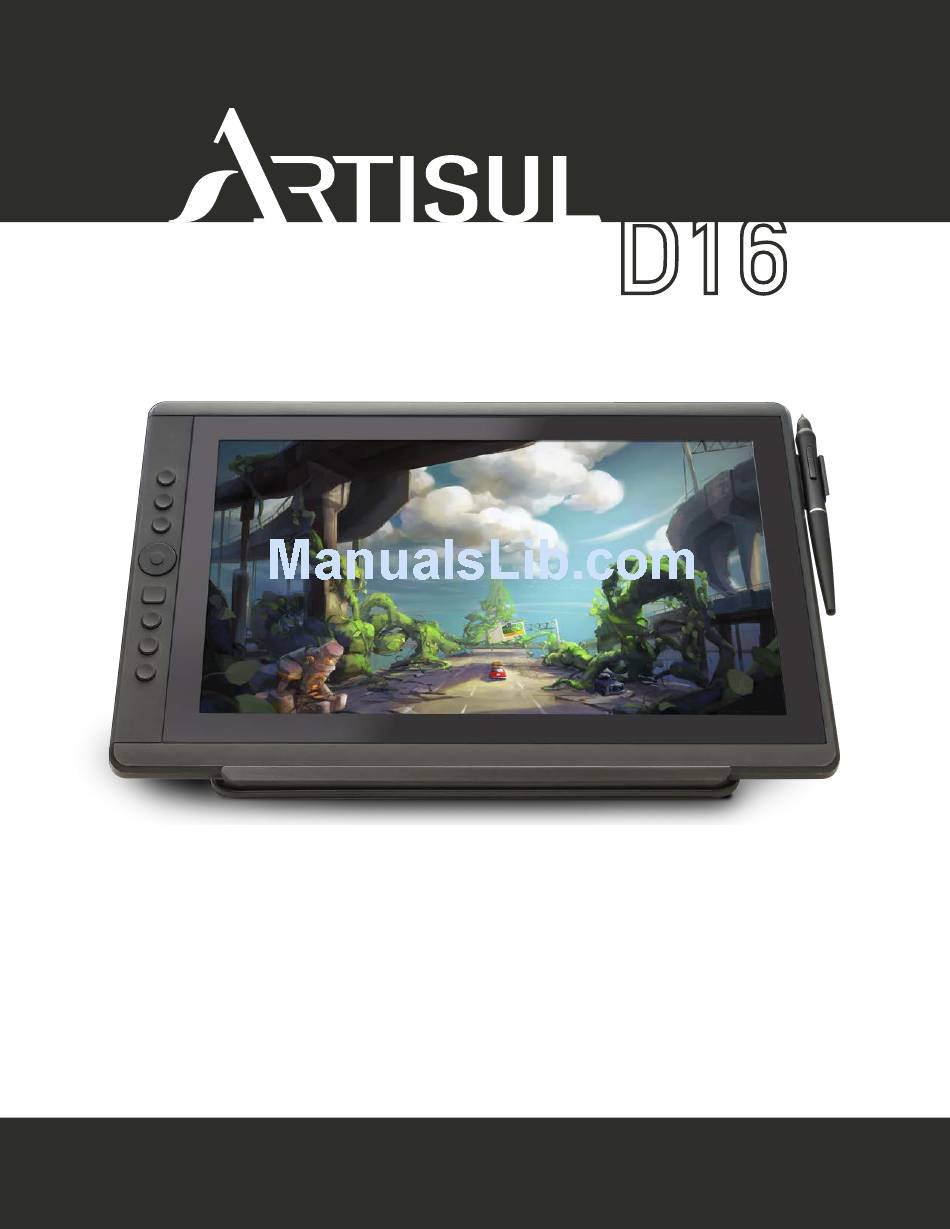

  • Page 1 User Manual for Windows Windows 7 or later Driver Version 3.0 and later Ver.3.4 Release Date: 10/12/17...
  • Page 2 Any additional company and product names mentioned in this document may be registered trademarks or trademarks. ARTISUL and UC-Logic are registered trademarks of UC-Logic Technology Corp. UC-Logic reserves the right to revise this publication without obligation to provide notification of such changes.

  • Page 3: Table Of Contents

    • Support • Save & Backup • III. Changing the Pen Tip IV. How to Care for your ARTISUL V. Settings for graphic applications VI. Frequently Asked Questions APPENDIX Appendix 1: Troubleshooting & Solutions Appendix 2: Uninstalling the ARTISUL Driver...

  • Page 4: General Information

    I. General Information OVERVIEW Welcome to the ARTISUL Family! Discover how simple and innovative it is to control your computer using our Pen and LCD Pen Display in place of your mouse or track pad. The Monet Pen functions very similar to an art pen, being able to draw a line very thin or thick, light or dark.

  • Page 5: Verifying Hardware

    Artisul D16 Driver Version 3.4 VERIFYING HARDWARE Your ARTISUL Pen Display and its packaged contents are shown below. If anything is missing, contact your dealer immediately.

  • Page 6: Setup

    Artisul D16 Driver Version 3.4 SETUP 1. Find 2 cables packaged with your ARTISUL Pen Display: a. Micro-USB (with safety lock) to USB b. Mini-HDMI to HDMI c. AC 2. Insert micro-USB end of cable with safety lock into pen display. Insert USB end into computer.
  • Page 7 2. Plug in red power USB end into adapter. 3. Plug black male USB end into computer. 4. Plug male USB end of ARTISUL display cable into female end of Y cable. Note: Please remove power adapter first when removing your ARTISUL D13 from your computer.

  • Page 8: Installation On Windows

    5. After you have finished the driver installation and restarted your computer. If the device has been successfully installed, you will see a small ARTISUL icon appear in the system tray, which is normally located at the lower right-hand corner of the screen.
  • Page 9 Artisul D16 Driver Version 3.4 NOTE: Please connect your ARTISUL Pen Display to your computer before opening graphics software or app.

  • Page 10: Usage Tips

    Traditional Mouse Setup You can have both the ARTISUL Pen Display and a traditional mouse setup to your computer at the same time. However, only one device is able to actively work at a time. You cannot use the mouse and Monet Pen at the same time.
  • Page 11 Note: 11. Under the “Duplicate” display mode of the “Multiple Display” function, the display resolution of your monitor must be set to the same resolution as your ARTISUL. Otherwise, your pen cursor will be misplaced on the screen. For ARTISUL D13, please make sure the other monitor resolution is set to 1920 x 1080.

  • Page 12: Artisul Configuration

    Driver Version 3.4 II. Artisul Display Configuration You may configure your ARTISUL Pen Display by modifying the functions of the pen tip and the two side buttons. Tap on the ARTISUL icon in the system tray, usually located at lower right-hand corner of the •...
  • Page 13 Artisul D16 Driver Version 3.4 Dashboard The Dashboard tab can help you connect to the ARTISUL website. Click Home to go to our website. Devices The Devices tab shows the device currently in use and the driver version being run.
  • Page 14 Note: Software keystrokes are based on English input methods. If not already, set to English when • using HotKeys on your Artisul pen display. Note: Most creative software will not accept keystroke inputs when you U-Pen is still in use or •...
  • Page 15 Pen Pressure Setting: Move the slider in the sensitivity bar to adjust pen pressure response. Light means your ARTISUL pen display will recognize the slightest nuance of pressure, while heavy means it will take more pressure for the pen tip to register.
  • Page 16 Pen Pressure: Using the U-Pen, press down in the white rectangle. Use different levels of pressure to test if pen pressure sensitivity is working on your computer. Note: Please close the ARTISUL Control Panel when finished with the Pressure test. •...
  • Page 17 Monitor: If working in Extended Display, choose which monitor you want your ARTISUL pen display • to track with. Most likely, you will want it to track with the ARTISUL display. To learn which monitor is Monitor 1 and which is Monitor 2, go to Start > Settings > Display and click Identify.
  • Page 18 Artisul D16 Driver Version 3.4 Support Support Forum: Connect to our online community support forum. • User Manuals/Setup Tutorials: Helpful guides to setting up your ARTISUL pen display. • Warranty Registration: Link to our product registration webpage. • Languages: English, Chinese •...

  • Page 19: Changing The Pen Tip

    2. For D13, pull out the pen nib from with nib remover device built into the pen case. For D10, use the pen nib removal device in the pen nib storage case to pull out the pen nib. For D16, use the pen nib removal tool to pull out the pen nib.

  • Page 20: Settings For Graphic Applications

    Artisul D16 Driver Version 3.4 V. Settings for graphic applications Some applications need their settings changed so the ARTISUL can act just the way you like. A. SAI a. Find [misc.ini] in SAI folder. b. Right click on [misc.ini] and select “Edit.”...
  • Page 21 Artisul D16 Driver Version 3.4 D. Clip Studio Paint a. Run Clip Studio Paint and press Ctrl + K to open [Preferences]. b. Select “Tablet.” c. In “Using tablet services” select Tablet PC. d. Press OK and restart Clip Studio Paint.

  • Page 22: Frequently Asked Questions

    C. Re-connect your ARTISUL USB and HDMI cables to your computer. a. If you see the ARTISUL logo appear briefly but the screen goes dark, there is an HDMI connection issue. Please try using a different HDMI port on your computer, or checking your computer settings to make sure the HDMI port supports display output.

  • Page 23: Appendix 1: Troubleshooting & Solutions

    Download the latest version of the driver from our website. • Follow installation instructions and restart computer. • Find the Artisul Icon in the system tray, usually at the bottom right-hand corner of the screen. • Test Pressure Sensitivity in the Artisul Driver. •...

  • Page 24: Appendix 2: Uninstalling The Artisul Driver

    Artisul D16 Driver Version 3.4 Appendix 2: Uninstall ARTISUL Driver 1. Go to “Control Panel.” 2. Under Programs, click “Uninstall a program.” 3. Click on ARTISUL Driver. 4. Click “Ok” when the uninstall instructions show on your screen.

  • Page 25: Appendix 3: Hot Key Comparison Table

    Artisul D16 Driver Version 3.4 Appendix 3: HotKey Comparison Tablet Hot Key Keyboard Shortcuts Copy Ctrl c Cut Ctrl x Paste Ctrl v Undo Ctrl z Close the Active Item/App Alt F4 Photoshop Tools Hot Key Keyboard Shortcut Image Size Alt Ctrl i...
  • Page 26 Artisul D16 Driver Version 3.4 Eraser e Type t Hand h Toggle Screen Modes f Move Tool v Selection Tool a Illustrator Tools Hot Key Keyboard Shortcut Group Alt Ctrl i Ungroup Ctrl Shift g Select All Ctrl a Lock Selection Ctrl 2...
  • Page 27 Artisul D16 Driver Version 3.4 Clip Studio Paint Tools Hot Key Keyboard Shortcut Select All Ctrl a Clear outside of selected area Shift Backspace Clear Selection Ctrl d New Raster Layer Ctrl Shift n Combine to layer below Ctrl e...
  • Page 28 Artisul D16 Driver Version 3.4 Corel Painter Tools Hot Key Keyboard Shortcut Undo Ctrl a Redo Ctrl y Copy Ctrl c Paste (as new object) Ctrl v Copy Visible Ctrl Shift c Send to Front Shift Pageup Send to Back Shift Pagedown...
