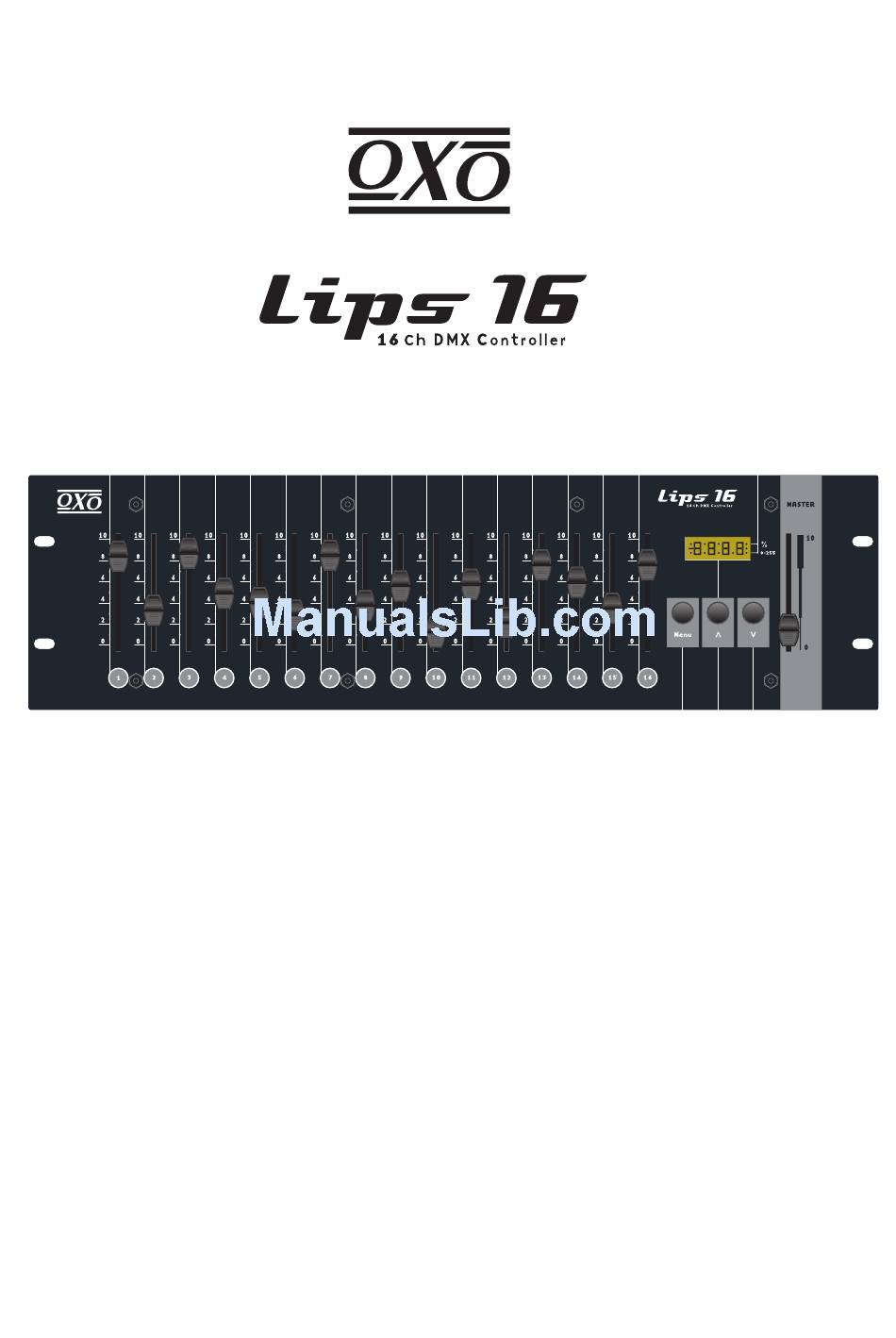

- Page 1 User Manual 24-004-1459 Rev1.0 August 2004...
- Page 2 LIPS 16 User's Instruction What's the LIPS 16 Thank you for your purchase this simple and convenient product. This unit is a 512 DMX controller, which can control consecutive 16 channels from the start address each time. It can be easily set the start address by Up /Down keys and adjusted the channels values by 16 faders.
- Page 3 Master Up Down Mode Fader Fader When switching on the power supply, the LED window will display the start DMX channel address. It can be "A001". If there are no character and number display, check the power whether it's correctly connected. .
- Page 4 4. Master fader Pushing the Master fader can control the output values of all the 512 channels. The output value can be set to 0 ~ 255 by the Master fader. There are also two display modes, including decimal and percent mode. The default mode is decimal mode. And you can shift between these two modes by pressing the mode key.
