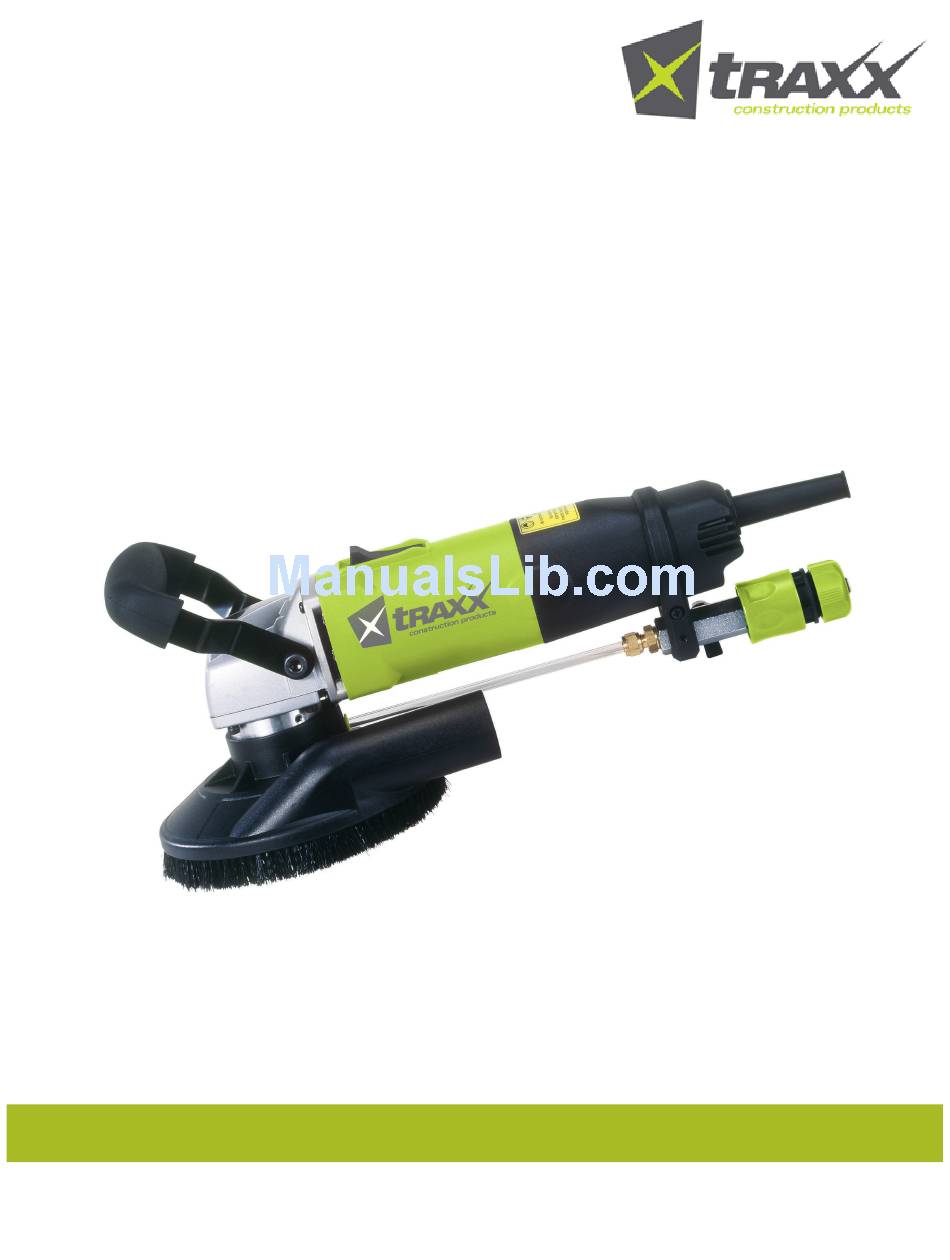

- Page 1 OPERATIONS M ANUAL TRAXX E P5LFB & E P7FB S TONE G RINDER ...
- Page 2 Model 5" High speed mode 5" Low speed mode 5" Wet-Dry mode Power input 1200W Voltage See machine nameplate No Load min 3000 ~ 6500 1700 ~ 3700 1700 ~ 3700 Spindle Max. Disc Diameter 5" (125 mm) Soft Start & Overload Protection With Dimensions 303mm ( L ) X 72mm ( W ) X 80mm ( H )
- Page 3 Model 5" Dust Collect Cover Mode Power input 1200W Voltage See machine nameplate No Load min 1700 ~ 3700 Spindle Max. Disc Diameter 5" (125 mm) Soft Start & Overload Protection With Dimensions 303mm ( L ) X 72mm ( W ) X 80mm ( H ) Net Weight 2.8 kg (6.16Lbs) 5"...
- Page 4 Model 7" Wet-Dry mode 7" Dust Collect Cover Mode Power input 2500W Voltage See machine nameplate No Load min 1000 ~ 2400 Spindle Max. Disc Diameter 7" (180mm) Soft Start & Overload Protection With Dimensions 500mm ( L ) X 210mm ( W ) X 200mm ( H ) Net Weight 5.8 kg (12.76bs) 6.00 kg (13.2Lbs)
- Page 5 GENERAL SAFETY RULES path to carry electricity away from the user. A v o i d b o d y c o n t a c t w i t h g r o u n d e d W A R N I N G ! R e a d a n d u n d e r s t a n d a l l surfaces such as pipes, radiators, ranges instructions.
- Page 6 Remove adjusting keys or switches before moving parts, breakage of parts, and any turning the tool on. A wrench or a key that is other condition that may affect the tools operation. If damaged, have the tool left attached to a rotating part of the tool serviced before using.
-
Page 7: Functional Description
SPECIFIC SAFETY RULES Use the machine with both hands at all t i m e s . L o s s o f c o n t r o l c a n c a u s e Keep hands away from rotating disc personal injury. -
Page 8: Carton Contents
Extension cable ■5"&7", To install a the Backing Plate and ■ Diamond Polishing Pad, Diamond Plate If an extension cable is required, it must Unplug the machine. have a sufficient cross-section so as to Thread on the Backing Plate onto the prevent an excessive drop in voltage or arbor. - Page 9 5" Dust Collect Cover Mode Diamond plate with flanges Hoop and loop plate for Diamond polishing Out flange Inner flange Diamond plate with flanges Out flange SPECIAL INSTRUCTIONS FOR WATER FEED EQUIPPED MACHINES Water feed models provide water directly to the workpiece. Inner flange WARNING: Never allow water to enter the m o t o r o r i t s p o w e r s u p p l y c o r d !
- Page 10 WARNING: This is a lock-on switch, so L-hex key whenever it is on, it will remain locked on until you actively turn it off. Before plugging the tool in, always ensure that the switch is in the "Off" position. Whenever there is a power outage, always remember to switch seal the tool off.
- Page 11 T h i s i s a l o c k - o n t y p e s w i t c h , s o f o r Speed Adjustment continued operation, the locking pin may Thumbwheel be pressed. To shut off, first re-squeeze and then release the trigger switch to release the lock.
-
Page 12: Grinding Operations
the door away. Put the door in a safe place dry compressed air. All plastic parts should where it will not be lost or damaged when it be cleaned with a soft damp cloth. NEVER is time to replace it. use solvents to clean plastic parts. - Page 13 into place. Then tighten the 2 screws. Brushes. NOTE: When putting the Carbon Brushes back into the Carbon Brush Holders it is essential that both flanges go back inside the holder. NOTE: To reinstall the same brushes, first ■7" Wet-Dry Mode make sure the brushes go back in the way ■7"...
- Page 14 5" Stone Grinders Wiring...
- Page 15 7" Stone Grinders Wiring...
- Page 16 5" Stone Grinders Exploded View...
- Page 17 5" Stone Grinders Parts List Parts Name 5"W 5"L 5"LF 5"LFB POWER SUPPLY CABLE POWER SUPPLY CABLE CORD ARMOR SCREW M4 x 16 ELECTRONICS BOARD ELECTRONICS BOARD CABLE CLIP TAIL COVER SCREW M4 x 10 SPIRAL TORSION SPRING CARBON BRUSH 7 x 11 + 33L + FLDNBI-110 2 CARBON BRUSH HOLDER SWITCH...
- Page 18 5" Stone Grinders Parts List Parts Name 5"W 5"L 5"LF 5"LFB COIL SPRING ø0.9 x ø10 x ø11.8 x 13.5L x 4T SPINDLE LOCK NEEDLE BEARING HK 0810 M1.2 x 33T H* BEVEL GEAR-HIGH SPEED M1.15 x 43T L* BEVEL GEAR-LOW SPEED INTERNAL CIRCLIP R-35 EXTERNAL CIRCLIP...
- Page 19 5" Stone Grinders Parts List Parts Name 5"W 5"L 5"LF 5"LFB OVERLOAD PROTECTION EARTH WIRE 20# 25cm + 4R x 10 SCREW M4 x 8 TERMINAL 2/12 DUST SHROUD SCREW M5 x 20 RING ø5.1 x ø8 x 4 HEX NUT 65.) WATER FEED COLLAR SET SCREW...
- Page 20 7" Stone Grinders Exploded View...
- Page 21 7" Stone Grinders Parts List Parts Name 7"F 7"FB POWER SUPPLY CABLE CORD ARMOR CABLE CLIP SCREW M4 x 14 SWITCH SCREW M5 x 30 SCREW M4 x 16 RIGHT HANDLE COVER LEFT HANDLE COVER SCREW M4 x 30 ELECTRONICS UNIT THUMB WHEEL 3-WAY CONNECTOR SCREW...
- Page 22 7" Stone Grinders Parts List Parts Name 7"F 7"FB SPRING ø0.8 x ø8.5 x ø10.1 x 20L x 6T C-CLIP ø0.6 x ø7.4 x Ø8.6 SCREW M5 x 30 NEEDLE BEARING TLA 0810 BEVEL GEAR M1.25 x 55T GEAR PLATE SCREW M4 x 25 INTERNAL CIRCLIP...
- Page 23 7" Stone Grinders Parts List Parts Name 7"F 7"FB WATER FEED COLLAR SPRING ø0.6 x ø6 x ø7.2 x 10T x 20L SANDING PLATE COVER HALF-MOON DOOR INTERNAL CIRCLIP S-65 BELOW ARE OPTIONAL DIAMOND PLATE (B) DIAMOND PLATE (B) LOCK NUT WRENCH ALUMINUM PAD AA*---- 7"...
- Page 24 Unit 4/1 Rocklea Drive Port Melbourne Vic 3207 1300 109 108 www.traxxcp.com.au...
