Page 1: Instruction Manual

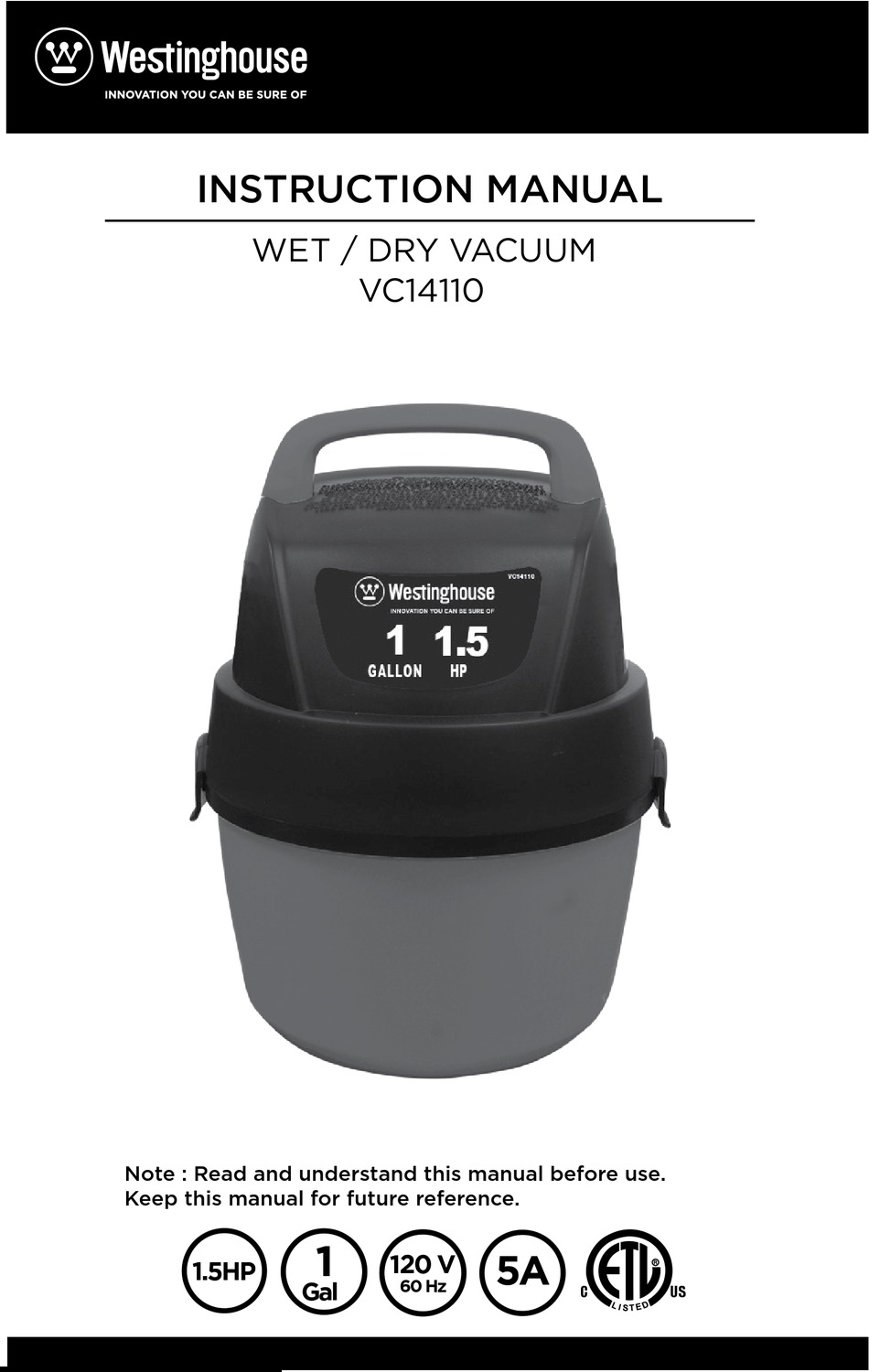

INSTRUCTION MANUAL WET / DRY VACUUM VC14110 Note : Read and understand this manual before use. Keep this manual for future reference. 120 V 1.5HP 60 Hz... - Page 2 5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, contact WESTINGHOUSE for assistance. 6. Do Not: pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp edges or corners.
- Page 3 23. STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum cleaner when you are tired, distracted or under the influence of drugs, alcohol or medication causing diminished control. NOTE: Use only as described in this manual. Use only manufacturer's recommended attachments SAVE THESE INSTRUCTIONS / GROUNDING INSTRUCTIONS This appliance must be grounded.
-
Page 4: Unpacking And Setup
CARTON CONTENTS & CLEANER DESCRIPTION ATTENTION: Remove contents of carton. Check each item against the Carton Contents list. Item Part No. Description Cleaner Descrtipt i on Reusable cloth dry 25-1 201 Item Descrtiption filter&Moun ting ring 1 3-1 588 Gulper nozzle HANDLE GRIP Crevice nozzle ON/ OFF SWITCH... -
Page 5: Mounting Wall Bracket
MOUNTING WALL BRACKET Mount the wall bracket to a wall stud. Secure with hardware provided. NOTE: An inadequately mounted wall bracket could become loose and fall, causing injury or damage to the wet/dry vacuum. The location used to mount the wall bracket should be strong enough to hold the combined weight of the vacuum and accessories. -
Page 6: Wet Pick-Up Operation
PLISHED WITH A WARM SOLUTION OF SOAP AND WATER. EMPTYING LIQUID WATERS FROM THE TANK Your WESTINGHOUSE Wet/Dry may be emptied of liquid waste by removing the power head. To empty, stop the motor and remove the plug from the wall receptacle. -
Page 7: Automatic Shut-Off
AUTOMATIC SHUT-OFF The cleaner is equipped with an automatic shut-o that operates when picking up liquids. As the level of the liquid rises, an internal float rises until it seats itself against a seal at the intake of the motor, shutting o suction. When this happens, the motor will develop a higher than normal pitch noise. -
Page 8: Exploded View-Main Unit
WARNING IF ANY OF THE MOTOR HOUSING PARTS SHOULD BECOME DETACHED OR BROKEN, EXPOSING THE MOTOR OR ANY OTHER ELECTRICAL COMPONENTS, OPERATION SHOULD BE DISCONTINUED IMMEDIATELY TO AVOID PERSONAL INJURY OR FURTHER DAMAGE TO THE VACUUM. REPAIRS SHOULD BE MADE BEFORE REUSING THE VACUUM. EXPLODED VIEW-MAIN UNIT EXPLODED VIEW-MAIN UNIT... -
Page 9: Parts List-Main Unit
PARTS LIST—MAIN UNIT ITEM DESCRIPTION ITEM DESCRIPTION Upper Handle Foam Filter Lid Cover Screw Motor Top Cover Hose Connector Hose Locking- Motor Seal Ring ring Motor Flexible Hose Hose Extension Motor Fixing Ring Connector Hose Connector Inlet Partition Holder Motor Bottom Screw Support Middle Frame...
