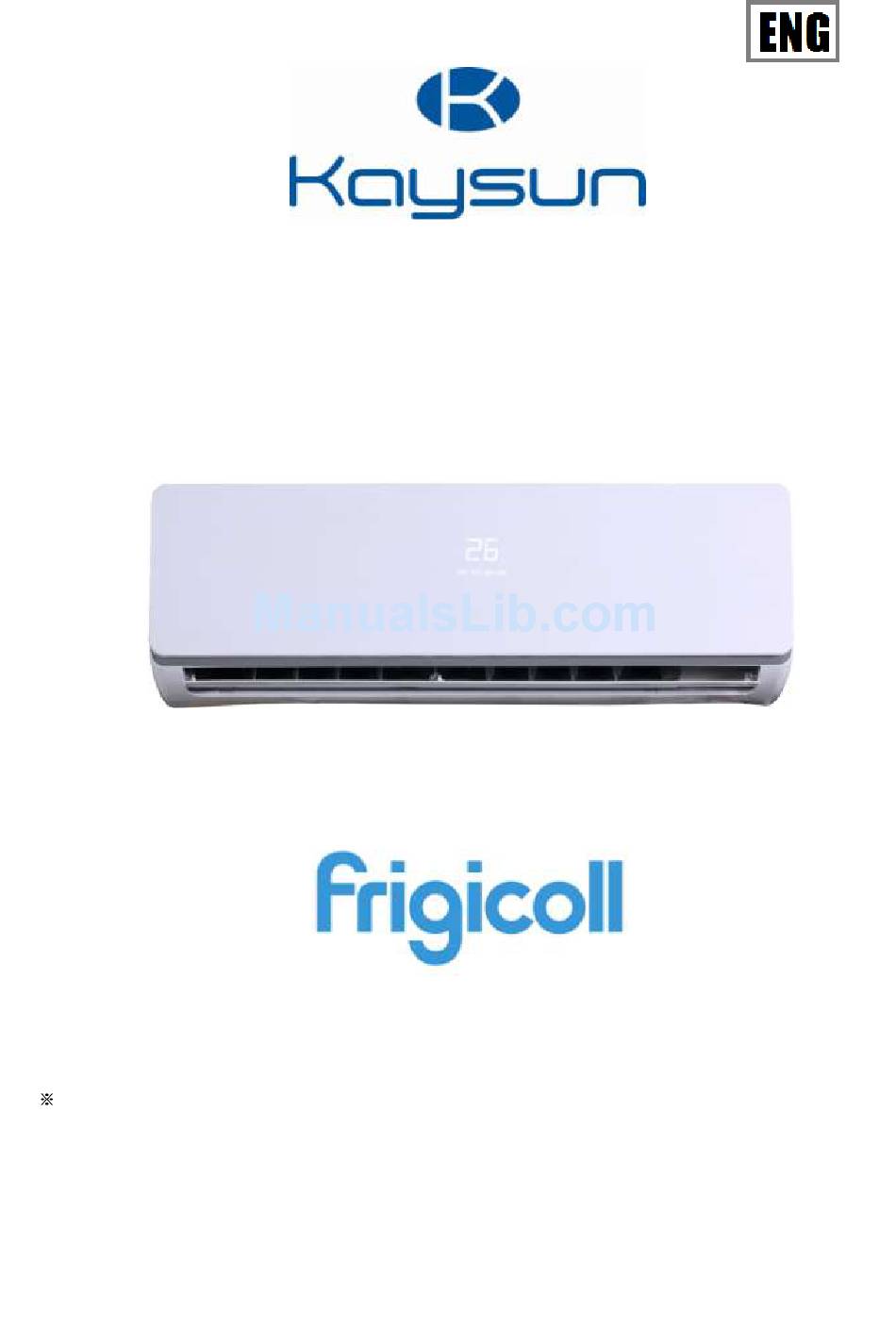

- Page 1 TECHNICAL MANUAL KAYF-DN3.0 Version 1.1 The specifications, designs, and information in this book are subject to change without notice for product improvement...
-
Page 2: Table Of Contents
TECHNICAL MANUAL Wall Mounted Features ....................... 3 Specifications ..................... 4 Dimensions ....................6 Piping Diagrams ..................7 Wiring Diagrams ..................8 Capacity Tables ..................11 Electrical Characteristics ................. 15 Sound Levels .................... 16 Accessories ....................18... -
Page 3: Features
KAYF- DN3.0 1. Features New Panel Flexible installation Multi-refrigerant outlet pipe method: left\right\rear, more flexible for installation. Flexsible piping connection Refrigerant piping and condensate piping on the same side High efficiency DC fan motor The power consumption of DC driven VRF indoor units can be reduced up to 30% in comparison to corresponding AC type. -
Page 4: Specifications
TECHNICAL MANUAL 2. Specifications Model KAYF-22 DN3.0 KAYF-28 DN3.0 KAYF-36 DN3.0 KAYF-45 DN3.0 Power supply V- Ph-Hz 220-240V~ 50/60Hz Capacity Cooling Input Rated current 0.27 0.31 0.43 0.44 Capacity Heating Input Rated current 0.27 0.31 0.43 0.44 Model WZDK20-38G WZDK20-38G... - Page 5 KAYF- DN3.0 Specifications Model KAYF-56 DN3.0 KAYF-80 DN3.0 Power supply 220-240V~ 50/60Hz Ph-Hz Capacity Cooling Input Rated current 0.58 Capacity Heating Input Rated current 0.58 Model ZKSP-58-8-1 ZKSP-60-8-3 Indoor fan motor Type DC motor Input Number of rows Tube pitch× row 21×13.37 pitch Fin spacing...
-
Page 6: Dimensions
TECHNICAL MANUAL 3. Dimensions KAYF-22 DN3.0, KAYF-28 DN3.0 KAYF-36 DN3.0, KAYF-45 DN3.0, KAYF-56 DN3.0 KAYF-80 DN3.0... -
Page 7: Piping Diagrams
KAYF- DN3.0 4. Piping Diagrams motor flare nut gas side heat exchanger flare nut liquid side T1: Indoor ambient temperature sensor; T2: Temperature sensor in the middle of evaporator; T2B: Evaporator outlet temperature sensor. Refrigerant pipe connection port diameters Model Gas pipe Liquid pipe Φ12.7... -
Page 8: Wiring Diagrams
TECHNICAL MANUAL 5. Wiring Diagrams KAYF-22 DN3.0, KAYF-28 DN3.0 KAYF-36 DN3.0, KAYF-45 DN3.0, KAYF-56 DN3.0... - Page 9 KAYF- DN3.0 Wiring diagrams KAYF-80 DN3.0 Code definition Code Name Code Name Fan motor Evaporator outlet temperature sensor Swing motor Water level switch XP1-5/XS1-5 Connectors Indoor ambient temperature sensor XT1/XT2 Terminals Temperature sensor in the middle of evaporator Magnetic ring Dial switch setting Means 0 Means 1...
- Page 10 TECHNICAL MANUAL Dial switch setting SW2 setting 00 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 4 minutes and run for 1 minute (Default) 01 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 8 minutes and run for 1 minute 10 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 12 minutes and 123 4...
-
Page 11: Capacity Tables
KAYF- DN3.0 6. Capacity Tables 6.1 Cooling capacity tables TC: Total Capacity; SC: Sensible Capacity Indoor temperature (℃WB/DB) Indoor Outdoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Unit size temperature (kW) (℃DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0... -
Page 12: Cooling Capacity Tables
TECHNICAL MANUAL Cooling capacity tables TC: Total Capacity; SC: Sensible Capacity Indoor temperature (℃WB/DB) Indoor Outdoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Unit size temperature (kW) (℃DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0... -
Page 13: Heating Capacity Tables
KAYF- DN3.0 6.2 Heating capacity tables TC: Total Capacity; WB: Wet-bulb temperature; DB: Dry-bulb temperature Indoor temperature (℃ DB) Outdoor Indoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Unit size (℃) (kW) -19.8 1.46 1.46 1.46 1.46 1.46 1.46 -18.8 1.56 1.56 1.56... - Page 14 TECHNICAL MANUAL Heating capacity tables TC: Total Capacity; WB: Wet-bulb temperature; DB: Dry-bulb temperature Outdoor Indoor temperature (℃ DB) Indoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Unit size (℃) (kW) -19.8 2.80 2.80 2.80 2.80 2.80 2.80 -18.8 3.00 3.00 3.00 3.00...
-
Page 15: Electrical Characteristics
KAYF- DN3.0 7. Electrical Characteristics Indoor Unit Power Supply Model Voltage Min. Max. KAYF-22 DN3.0 50/60 220-240 0.29 0.01 0.23 KAYF-28 DN3.0 50/60 220-240 0.33 0.012 0.26 KAYF-36 DN3.0 50/60 220-240 0.44 0.016 0.35 KAYF-45 DN3.0 50/60 220-240 0.45 0.017 0.36... -
Page 16: Sound Levels
1. Sound values are measured in a semi-anechoic room, at a position 1m below the air outlet both horizontally and vertically. 2. During actual operation, these values are normally somewhat higher as a result of ambient conditions. Sound pressure levels Sound test value dB(A) Model KAYF-22 DN3.0 KAYF-28 DN3.0 KAYF-36 DN3.0 KAYF-45 DN3.0 KAYF-56 DN3.0... -
Page 17: Octave Band Level
KAYF- DN3.0 Octave band level KAYF-22 DN3.0, KAYF-28 DN3.0 KAYF-36 DN3.0 Audibility limits of Audibility limits of continuous white continuous white sound sound Octave band center frequency （ Hz ） Octave band center frequency （ Hz ） KAYF-45 DN3.0 KAYF-56 DN3.0... -
Page 18: Accessories
TECHNICAL MANUAL 9. Accessories Name Quantity Shape Usage 1. Remote controller manual 2. Screw ST3.9 25 for installation board Secure the installation board × 3. Plastic expanded tube 4. Wrapping tape 5. Drain pipe 6. Wall conduit cover 11. Installation manual The indoor unit which at the terminal of 12. - Page 19 KAYF- DN3.0...
