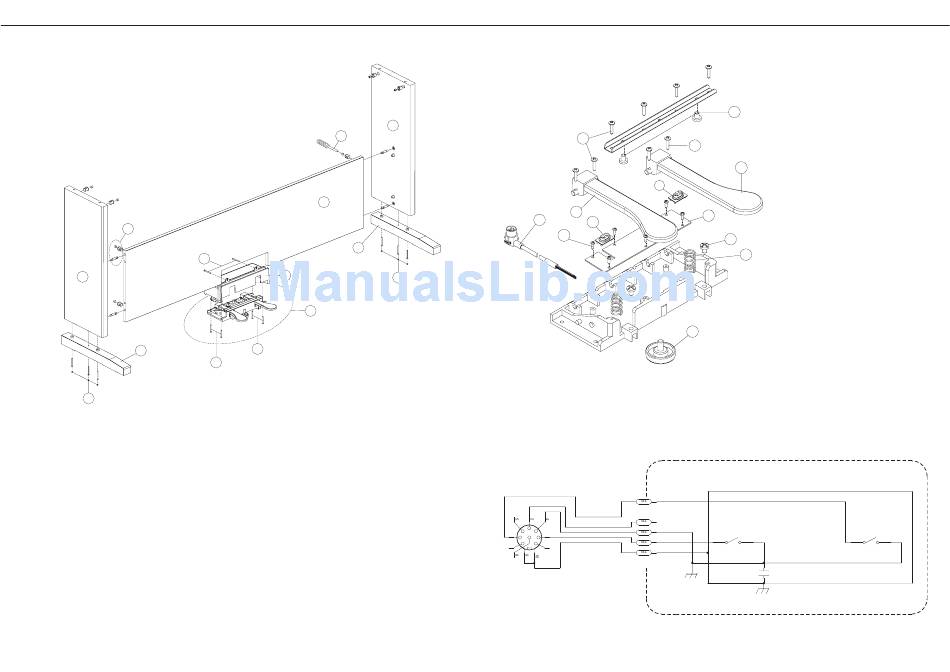

STAND EXPLODED VIEW HP-1-RW/MP
6
C
2
4
B
A
No. Part No. Description
1 7772905000 RIGHT SIDE PANEL (ROSEWOOD) HP-1-RW
7774402000 RIGHT SIDE PANEL (MAHOGANY) HP-1-MH
2 7772907000 LEFT SIDE PANEL (ROSEWOOD) HP-1-RW
7774403000 LEFT SIDE PANEL (MAHOGANY) HP-1-MH
3 7772906000 REAR PANEL (ROSEWOOD) HP-1-RW
7774401000 REAR PANEL (SATIN MAHOGANY) HP-1-MH
4 K235810101 FOOT F/SIDE PANEL
5 K2028143 COVER FOR PEDAL HP-1-RW
6 J2329107 JOINT BOLT ASSY
7 J3059113 2-NOTE PEDAL KS-137
8 J2329101 SCREW DRIVER TYPE 2
A J2289249 SCREW 4.5X45 TC PR TFR T.9.5
B J2289227 SCREW 3.9X20 TC PR TFR T.8 BLACK PLATED
C K2288107 SCREW 3.9X13.5 TC PR TFR H.8
1
8
3
4
5
A
7
B
KS-136
2-Note Pedal Exploded View & Parts List
ASSY J3059113
A
8
2
7
8
B
Circuit Diagram 2-Note Pedal
WIR1
PEDAL CABLE
TP1
BRWN
BRWN
X
TP3
RED
TP4
BLCK BLCK
3 1
ORNG
TP5
SHLD ORNG
7 6
X X
TP6
SHLD
X
HP-1 MH/RW, HP-2e RW/LA
4
A
1
3
4
5
No. Part No. Description
RIGHT PEDAL (GOLD)
1 J3059114
6
2
J3059115 LEFT PEDAL (GOLD)
3 K2918155 PCB FOR PEDAL
4 J2269108 RUBBER DAMPER FOR PEDAL
5 J2179112 PEDAL SPRING 1,4x14x29
6 J2289190 BLACK KNOB M8x14
7 K3418105 CABLE FOR PEDAL(84)
8 7625920000 1P CONDUCTIVE RUBBER LR13/1
A J2289128 SELF.TAP SCREW 3,5x19 TCTCPRBZ
B
J2289125 SCREW 2,9x10 TCTC PR TROP
PEDAL BOARD 2 PEDALS
SOFT DAMPER
SW3 OFF SW1
1 2 1
ON
SW SPST
SW SPST
C1
0.1C
D
OFF
2
ON
7
